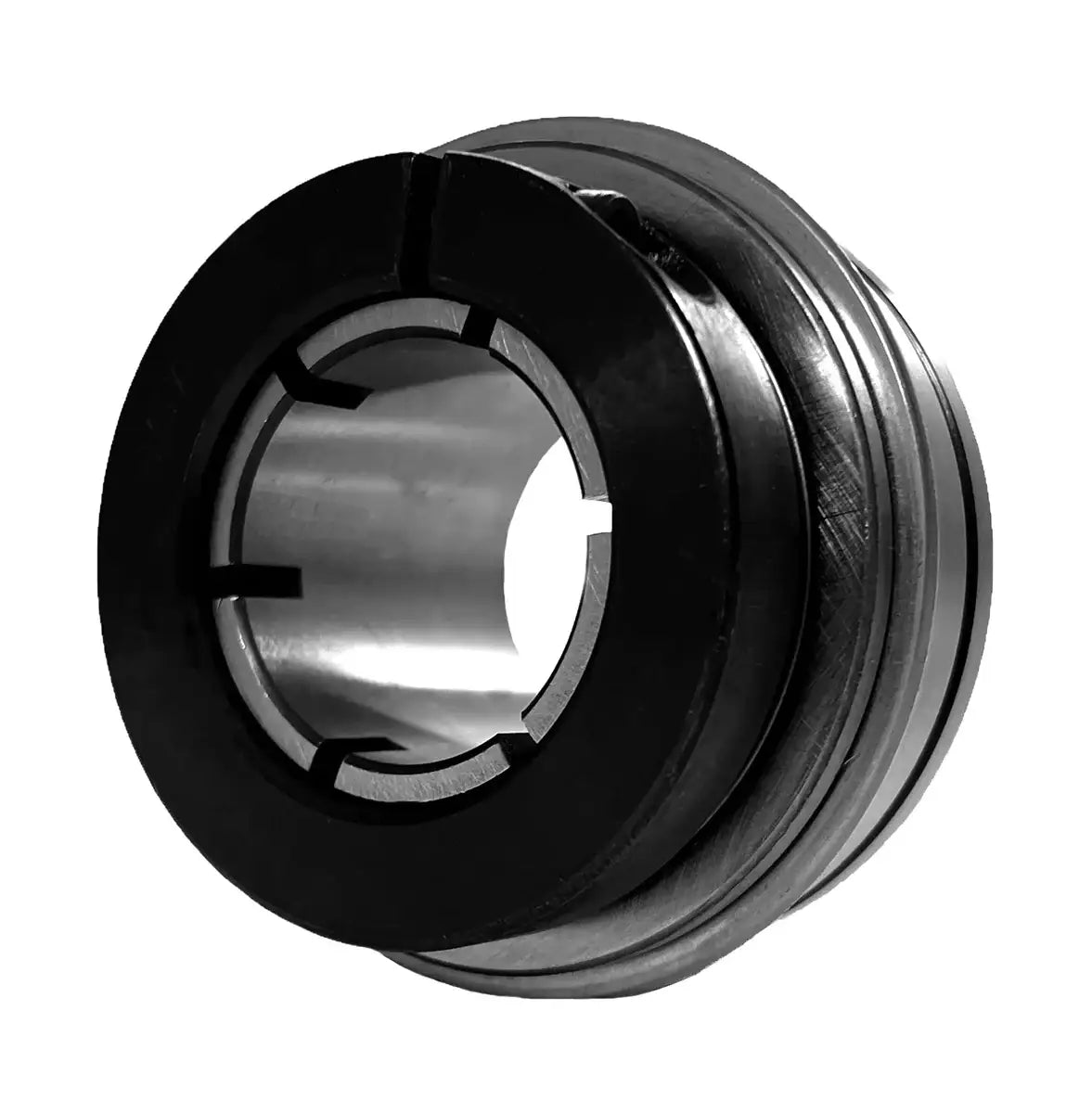

UER210-30 Insert Bearing | 1-7/8" Insert Bearing With Snap Ring

UER210-30 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 1-7/8" shaft. Our UER210-30 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER210-30 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER210-30 bearings, contact our customer service and, we will be happy to assist you!

UER210-30 Bearing Dimensions

• Part #: UER 210-30
• Shaft Diameter (d): 1-7/8"
• Setscrew Used: 3/8-24"
• Dimension (D): 3.5433"
• Dimension (Bi): 2.0709"
• Dimension (Be): 1.1260"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Dimension (W): 3.189"
• Dimension (K): 0.571"
• Dimension (A): 0.0949"
• Dimension (AN): 0.1252"
• Dimension (Y): 3.7992"
• Dimension (T): 0.2677"
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Weight (LBS): 1.9
