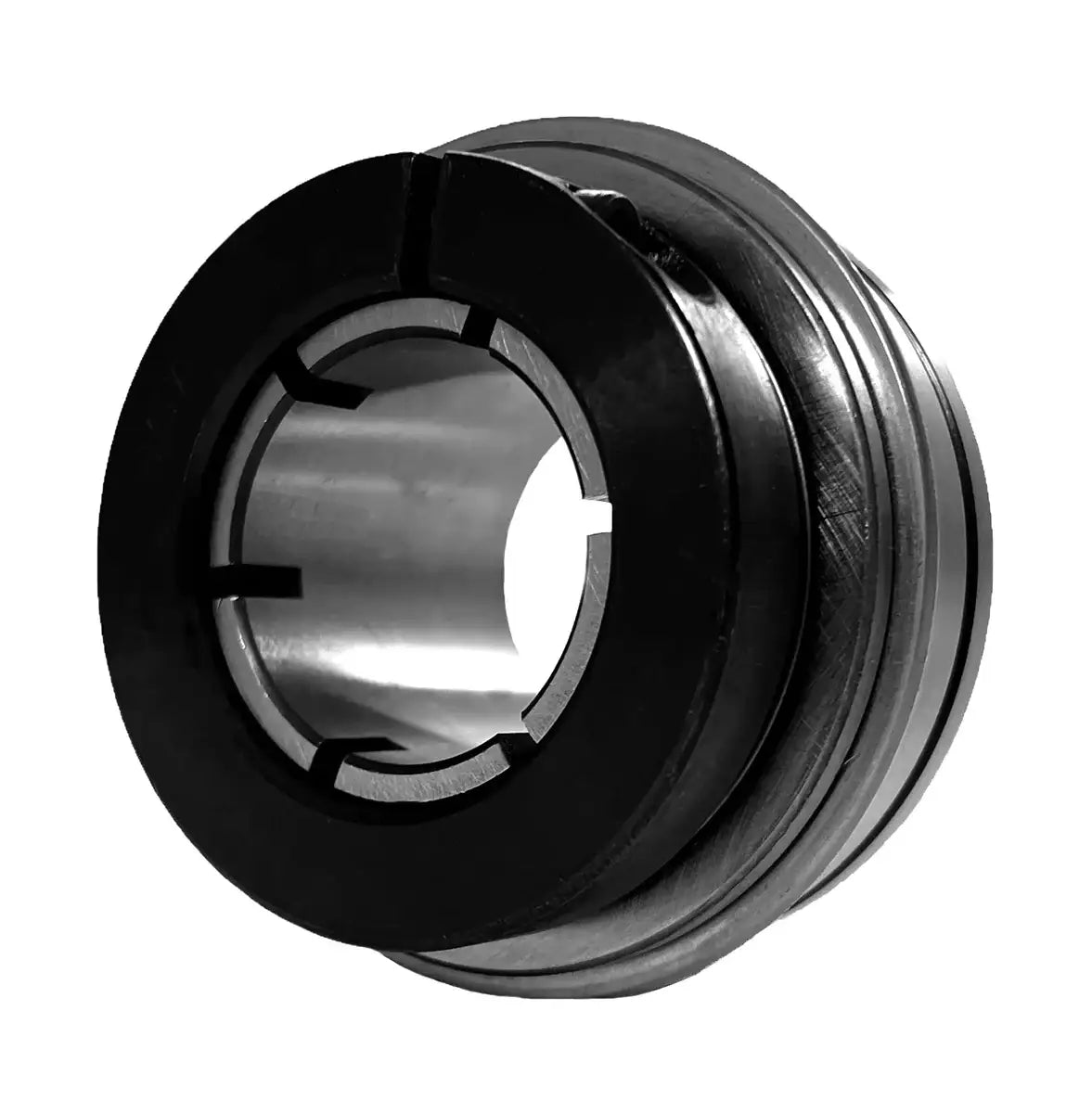

UER207-21 Insert Bearing | 1-5/16" Insert Bearing With Snap Ring

UER207-21 bearing is a normal-duty ball bearing insert with a snap ring made to C3 precision standards and utilizes a Tru-Loc devise to secure to a 1-5/16" shaft. Our UER207-21 insert bearing has several features: a wide inner-ring, steel retainer, anti-rotation device, and an inner ring and outer ring made from bearing grade steel to produce a high-quality and long-lasting bearing. Our UER207-21 bearing is made to industry standards dimensionally for direct interchangeability with just about any brand. For additional information or to receive a quote on our UER207-21 bearings, contact our customer service and, we will be happy to assist you!

UER207-21 Bearing Dimensions

• Part #: UER 207-21
• Shaft Diameter (d): 1-15/16"
• Setscrew Used: 5/16-24"
• Dimension (D): 2.8346"
• Dimension (Bi): 1.7283"
• Dimension (Be): 0.9370"
• Dimension (N): 0.6890"
• Dimension (M): 1.0000"
• Dimension (W): 2.520"
• Dimension (K): 0.433"
• Dimension (A): 0.0650"
• Dimension (AN): 0.1252"
• Dimension (Y): 3.0945"
• Dimension (T): 0.2480"
• Dynamic Load Rating (LBS): 5,775
• Static Load Rating (LBS): 3,497
• Weight (LBS): 1.1
