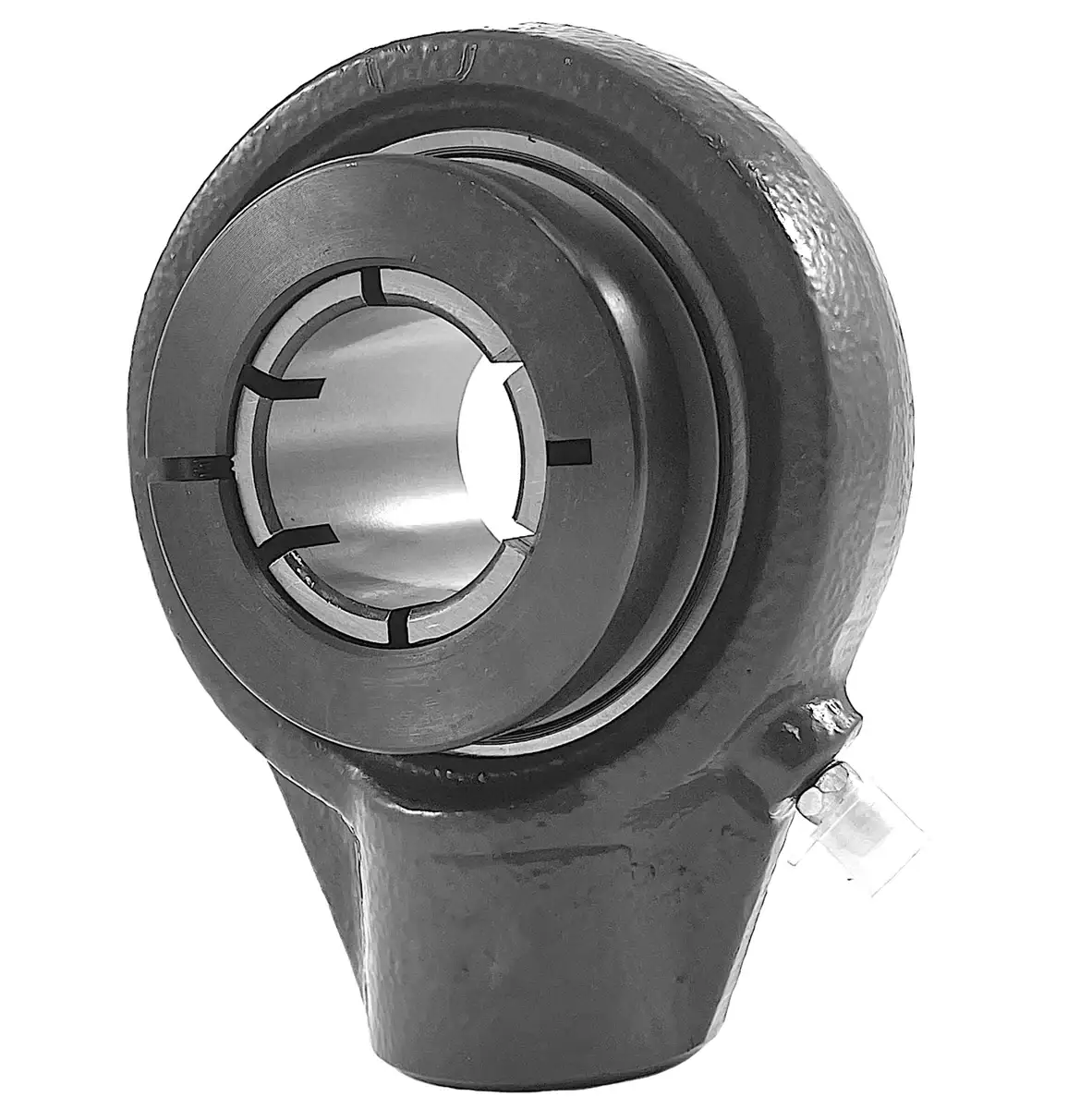

UEHA209 Bearing | 45mm Hanger Bearing

UEHA209 bearing is a 45mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 45mm shaft. UEHA209 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA209 bearings, and we will be happy to assist you!

UEHA209 Hanger Bearing Dimensions

• Part #: UEHA 209
• Shaft Diameter (d): 45mm
• Dimension (A): 108.0mm
• Dimension (W): 136.0mm
• Dimension (C): 5.0mm
• Dimension (H): 82.0mm
• Dimension (L): 48.0mm
• Dimension (D): 21.0mm
• Dimension (K): PF 1
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: UE 209
• Housing Number: HA 209
• Weight (kg): 1.8
