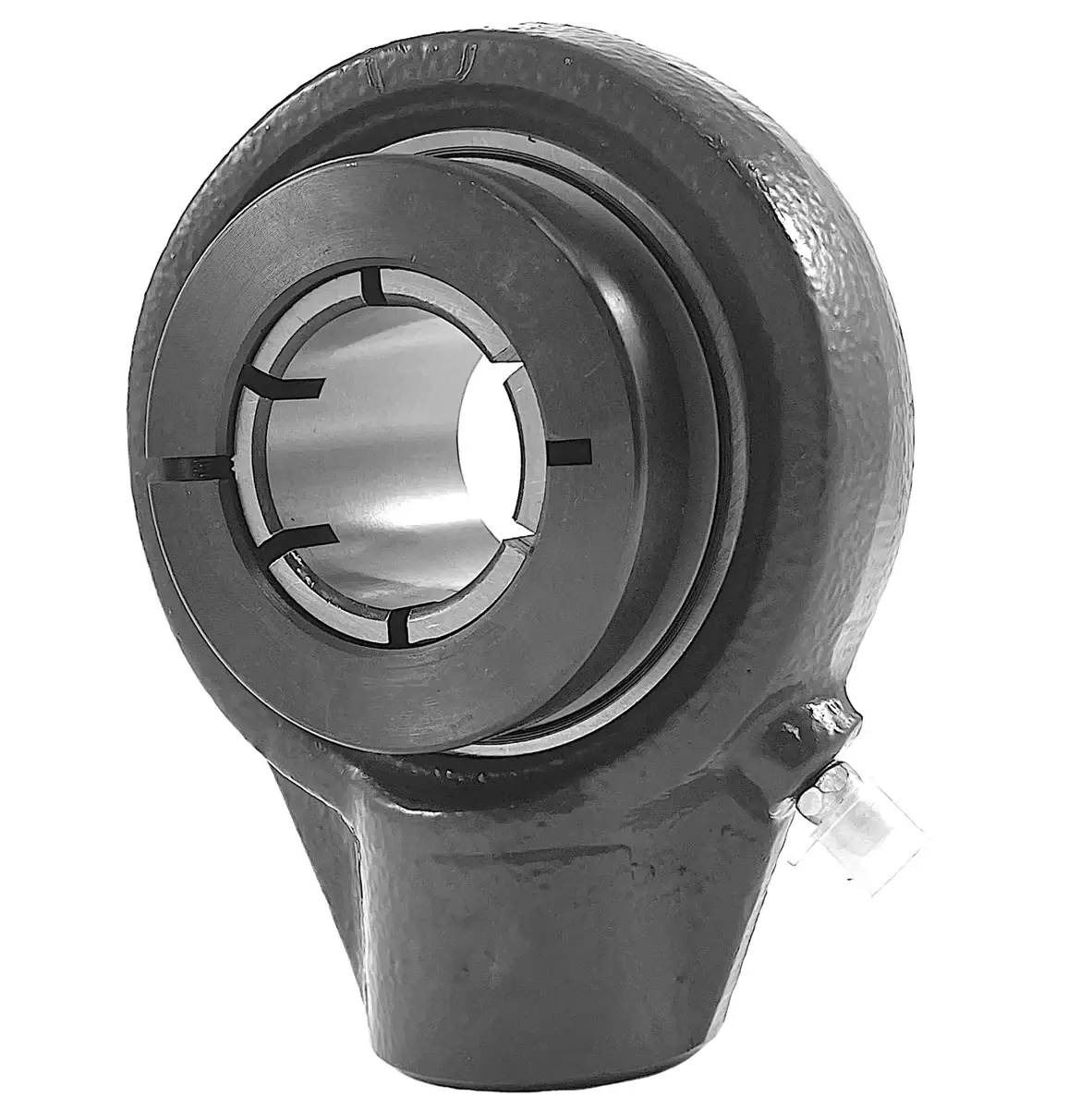

UEHA205-15 Bearing | 15/16" Hanger Bearing

UEHA205-15 bearing is a 15/16" bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 15/16" shaft. UEHA205-15 hanger bearings are designed for for applications such as screw conveyors and suspended shafts. Our superior UEHA205-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA205-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA205-15 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA205-15 bearings, and we will be happy to assist you!

UEHA205-15 Hanger Bearing Dimensions

• Part #: UEHA 205-15
• Shaft Diameter (d): 15/16"
• Dimension (A): 3.07"
• Dimension (W): 4.06"
• Dimension (C): 0"
• Dimension (H): 2.52"
• Dimension (L): 1.57"
• Dimension (D): 0.75"
• Dimension (K): PF 3/4
• Dimension (Bi): 1.3937"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UE 205-15
• Housing Number: HA 205
• Weight (LBS): 1.9
