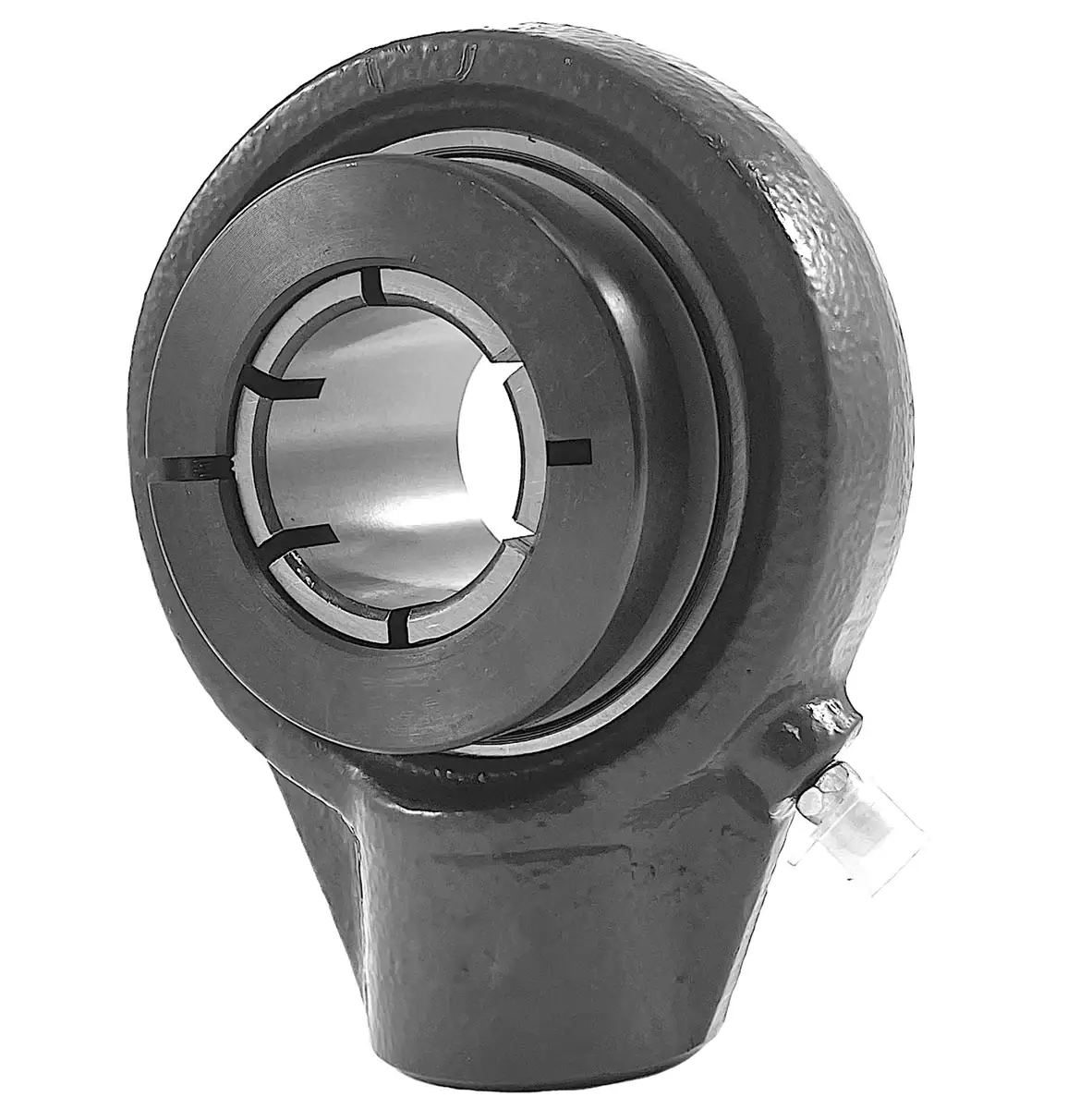

UEHA204 Bearing | 20mm Hanger Bearing

UEHA204 bearing is a 20mm bore normal-duty hanger bearing that utilizes a Tru-Loc device to secure to a 20mm shaft. UEHA204 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UEHA204 bearing with a 20mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UEHA204 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our UEHA204 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEHA204 bearings, and we will be happy to assist you!

UEHA204 Hanger Bearing Dimensions

• Part #: UEHA 204
• Shaft Diameter (d): 20mm
• Dimension (A): 64.0mm
• Dimension (W): 96.0mm
• Dimension (C): 0mm
• Dimension (H): 64.0mm
• Dimension (L): 40.0mm
• Dimension (D): 19.1mm
• Dimension (K): PF 3/4
• Dimension (Bi): 33.0mm
• Dimension (N): 12.7mm
• Dimension (M): 18.3mm
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: UE 204
• Housing Number: HA 204
• Weight (kg): 0.8
