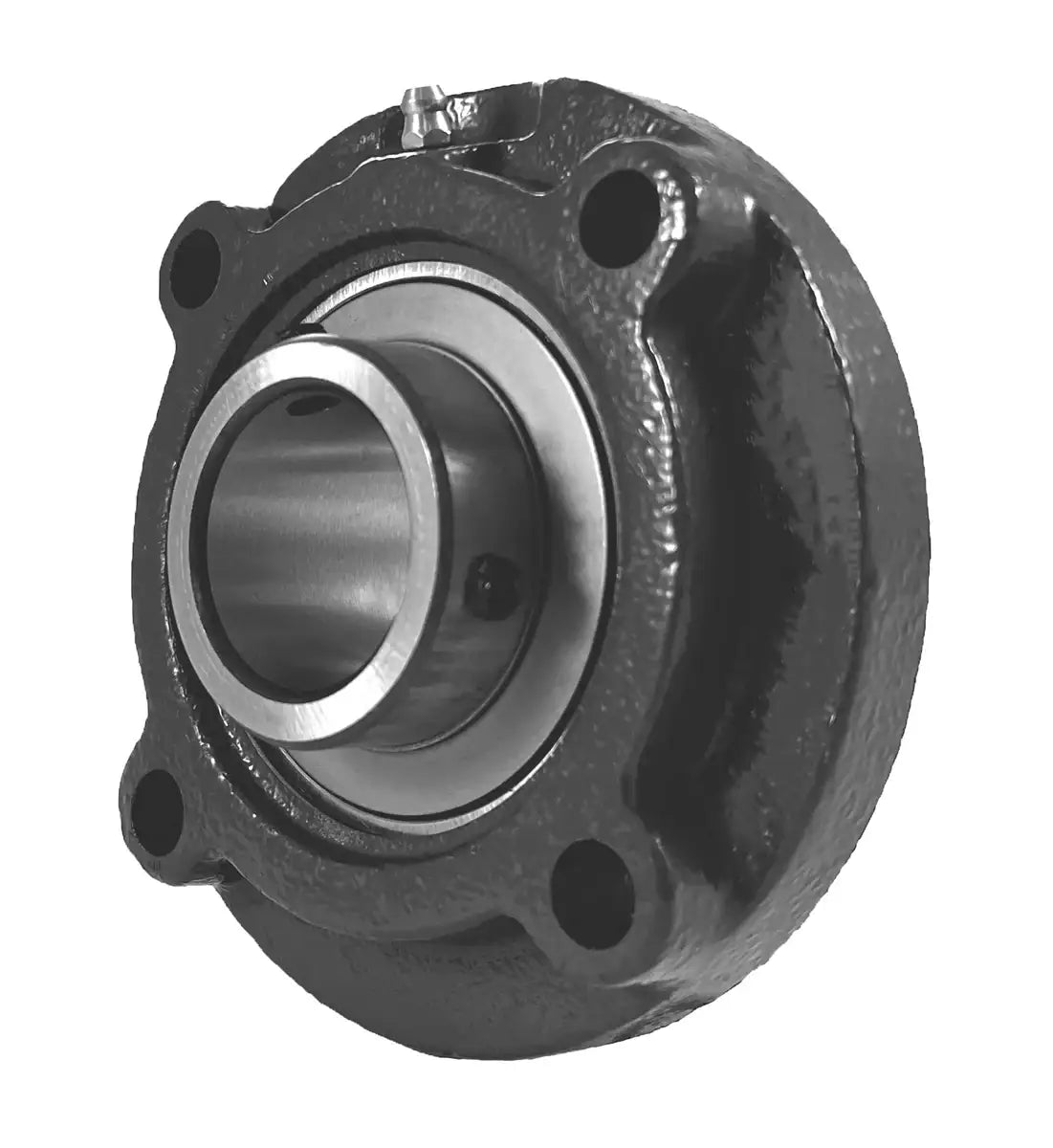

UEFCS211 Bearing | 55mm 4-Bolt Flange Bearing

UEFCS211 bearing is a 55mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 55mm shaft and has an inch based housing. UEFCS211 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFCS211 bearing with a 55mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFCS211 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFCS211 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFCS211 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFCS211 bearings, and we will be happy to assist you!

UEFCS211 Bearing Dimensions

• Part #: UEFCS211
• Shaft Diameter (d): 55mm
• Dimension (A): 162.1mm
• Dimension (P): 136.5mm
• Dimension (E): 97.0mm
• Dimension (I): 7.1mm
• Dimension (S): 14.0mm
• Dimension (J): 16.0mm
• Dimension (K): 10.9mm
• Dimension (G): 25.9mm
• Dimension (F): 114.3mm
• Dimension (Z): 38.3mm
• Dimension (Bi): 56.6mm
• Dimension (N): 22.2mm
• Dimension (M): 33.4mm
• Bolt Used: M12
• Dynamic Load Rating (kN): 43.34
• Static Load Rating (kN): 29.40
• Bearing Insert: UE 211
• Housing Number: FCS 211
• Weight (kg): 3.3
