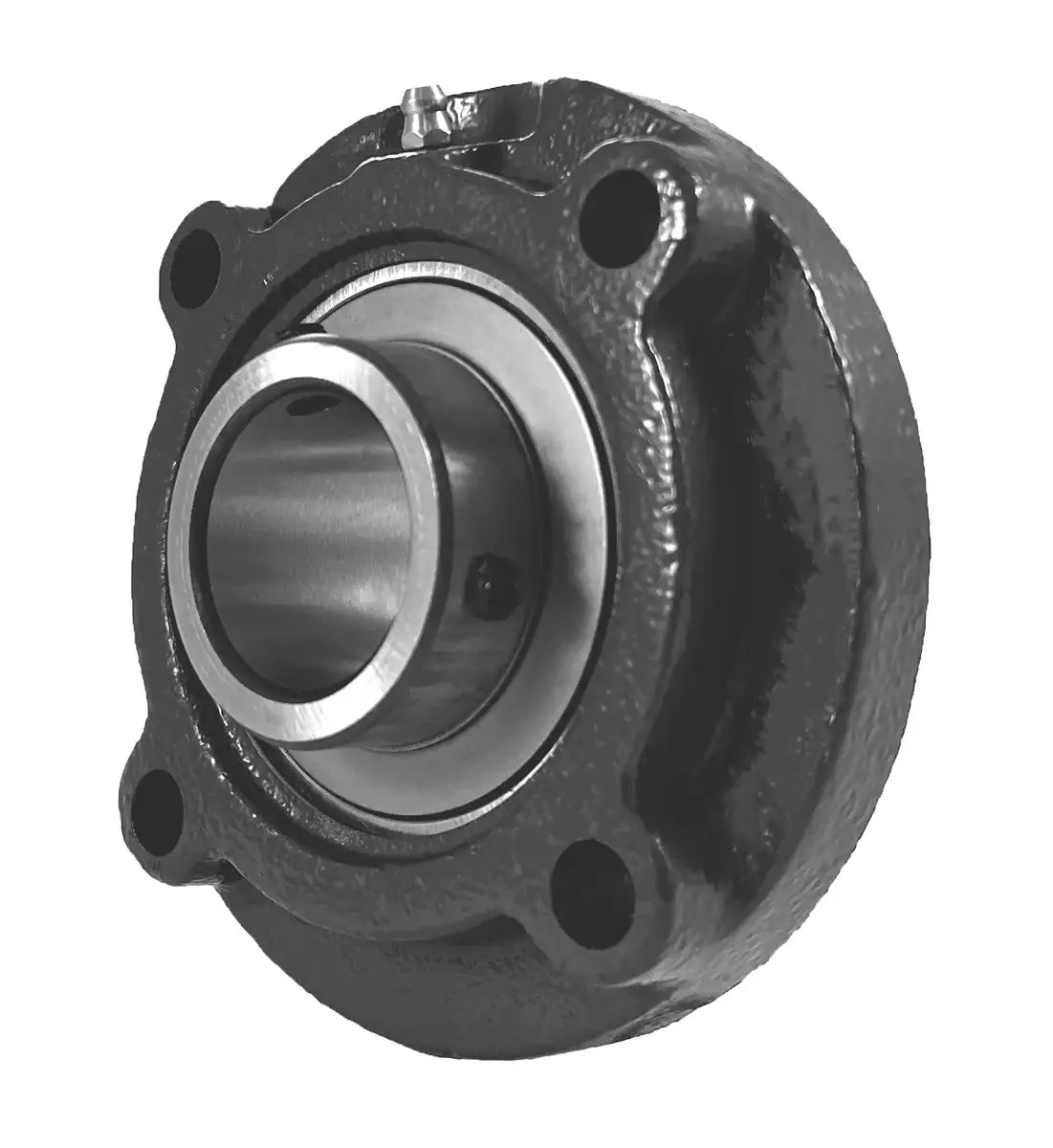

UEFCS208-25 Bearing | 1-9/16" 4-Bolt Flange Bearing

UEFCS208-25 bearing is a 1-9/16" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-9/16" shaft and has an inch based housing. UEFCS208-25 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFCS208-25 bearing with a 1-9/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFCS208-25 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFCS208-25 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFCS208-25 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFCS208-25 bearings, and we will be happy to assist you!

UEFCS208-25 Bearing Dimensions

• Part #: UEFCS208-25
• Shaft Diameter (d): 1-9/16"
• Dimension (A): 5.25"
• Dimension (P): 4.375"
• Dimension (E): 3.09"
• Dimension (I): 0.35"
• Dimension (S): 0.47"
• Dimension (J): 0.44"
• Dimension (K): 0.44"
• Dimension (G): 1.02"
• Dimension (F): 3.625"
• Dimension (Z): 1.28"
• Dimension (Bi): 1.9764"
• Dimension (N): 0.7480"
• Dimension (M): 1.1890"
• Bolt Used: 7/16
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,079
• Bearing Insert: UE 208-25
• Housing Number: FCS 208
• Weight (LBS): 4.4
