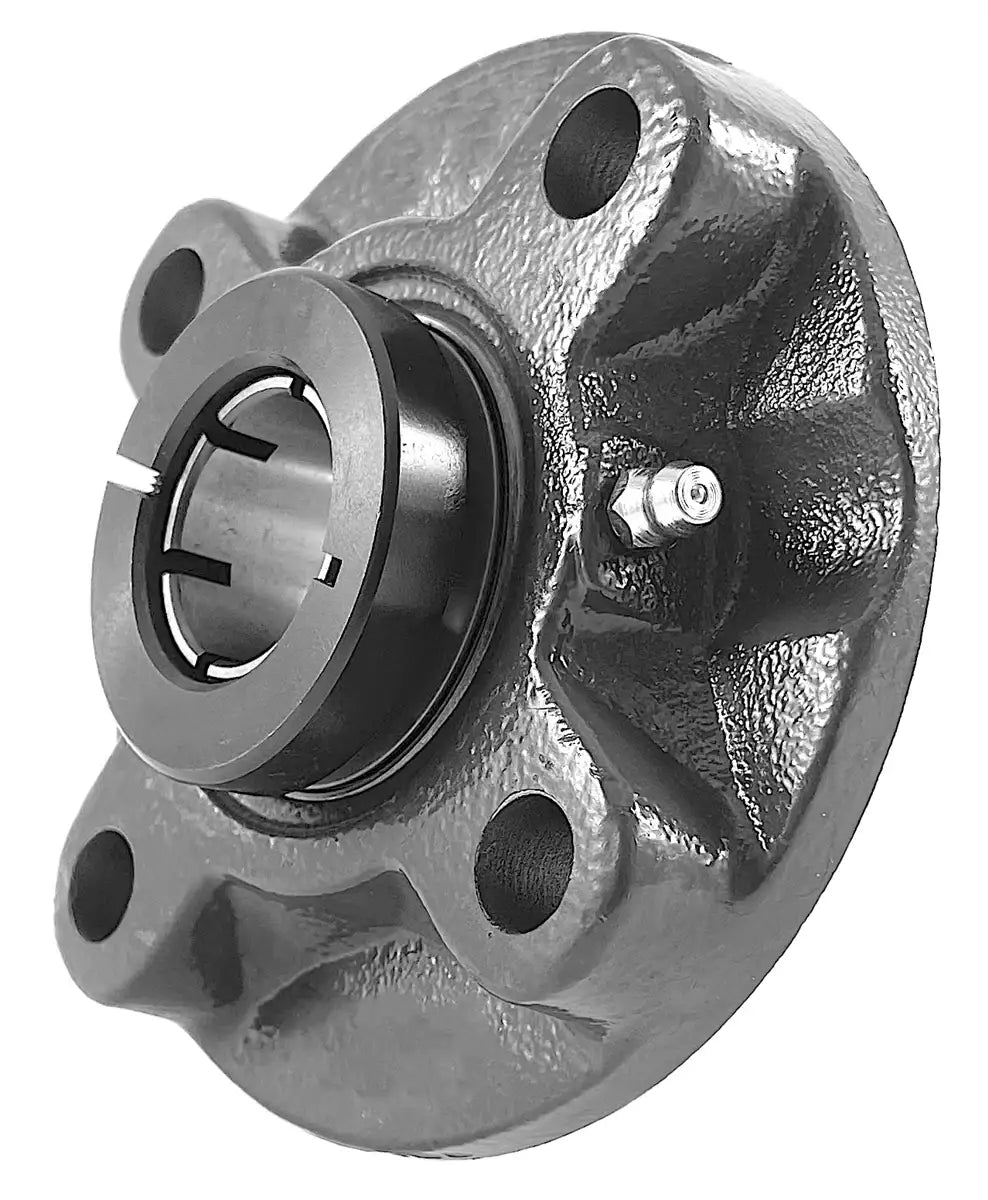

UEFC206-20 Bearing | 1-1/4" 4-Bolt Flange Bearing

UEFC206-20 bearing is a 1-1/4" bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc device to secure to a 1-1/4" shaft and has a metric based housing. UEFC206-20 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UEFC206-20 bearing with a 1-1/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFC206-20 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFC206-20 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFC206-20 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFC206-20 bearings, and we will be happy to assist you!

UEFC206-20 Bearing Dimensions

• Part #: UEFC 206-20
• Shaft Diameter (d): 1-1/4"
• Dimension (A): 4.92"
• Dimension (P): 3.94"
• Dimension (E): 2.78"
• Dimension (I): 0.39"
• Dimension (S): 0.47"
• Dimension (J): 0.31"
• Dimension (K): 0.31"
• Dimension (G): 0.91"
• Dimension (F): 3.15"
• Dimension (Z): 1.34"
• Dimension (Bi): 1.5669"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UE 206-20
• Housing Number: FC 206
• Weight (LBS): 1.3
