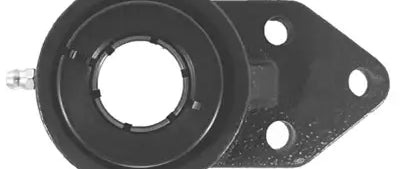

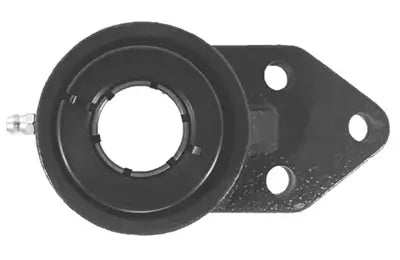

UEFB208 Bearing | 40mm 3-Bolt Flange Bearing

UEFB208 bearing is a 40mm bore three-bolt normal-duty flange bracket bearing that utilizes a Tru-Loc device to secure to a 40mm shaft. UEFB208 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UEFB208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEFB208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEFB208 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEFB208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEFB208 bearings, and we will be happy to assist you!

UEFB208 Bearing Dimensions

• Part #: UEFB 208
• Shaft Diameter (d): 40mm
• Dimension (A): 164.0mm
• Dimension (H): 60.0mm
• Dimension (E): 50.0mm
• Dimension (J): 41.0mm
• Dimension (I): 21.0mm
• Dimension (G): 16.0mm
• Dimension (L): 36.0mm
• Dimension (S): 12.0mm
• Dimension (B): 100.0mm
• Dimension (F): 78.0mm
• Dimension (Z): 52.2mm
• Dimension (Bi): 50.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.15
• Bearing Insert: UE 208
• Housing Number: FB 208
• Weight (kg): 1.9
