UEF205 Bearing | 25mm 4-Bolt Flange Bearing

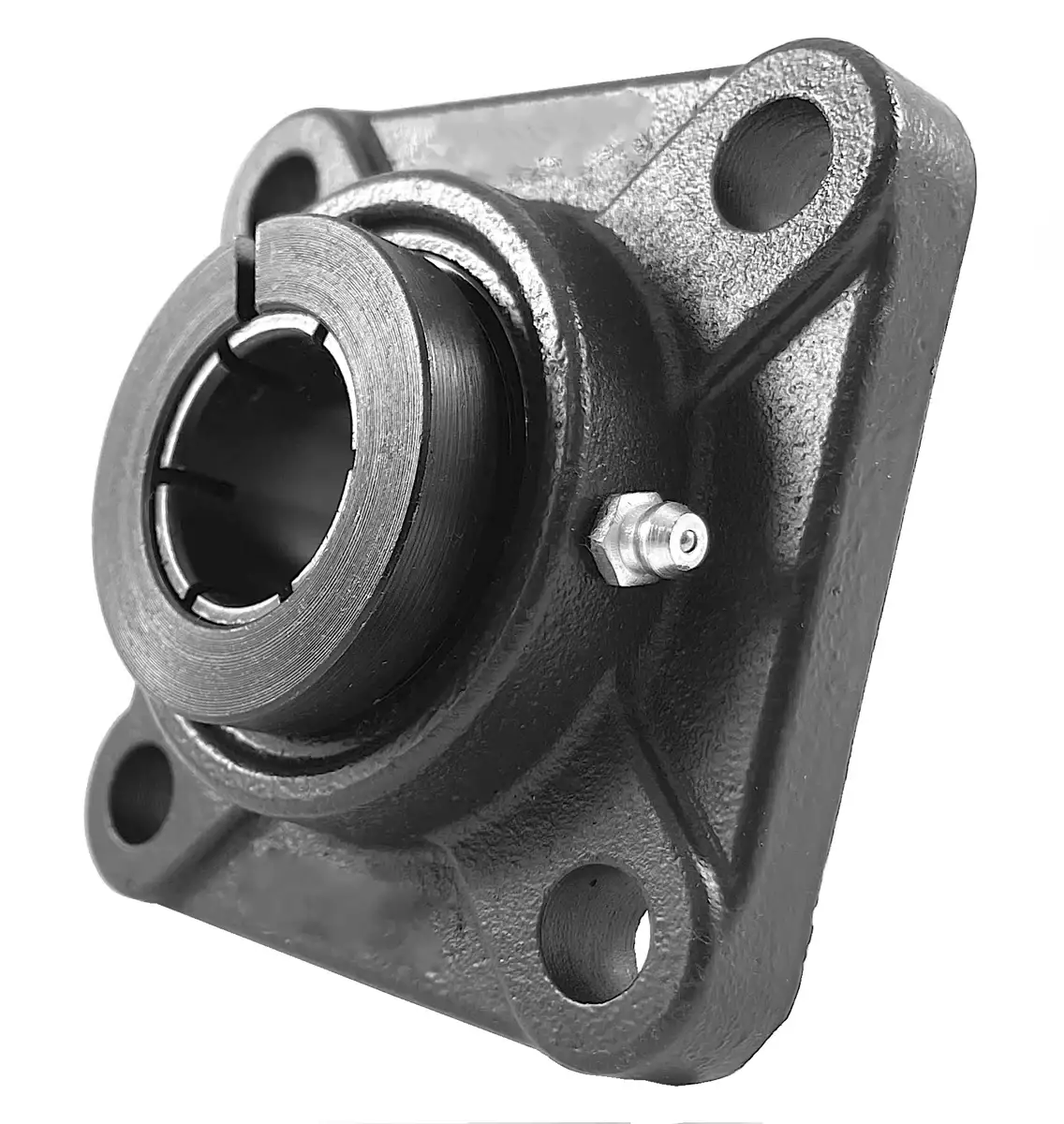

UEF205 bearing is a 25mm bore four-bolt normal-duty flange bearing that utilizes a Tru-Loc to secure to a 25mm shaft. UEF205 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UEF205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UEF205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. UEF205 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UEF205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UEF205 bearings, and we will be happy to assist you!

UEF205 Bearing Dimensions

• Part #: UEF 205
• Shaft Diameter (d): 25mm
• Dimension (A): 95.0mm
• Dimension (E): 69.9mm
• Dimension (I): 16.0mm
• Dimension (G): 14.0mm
• Dimension (L): 27.0mm
• Dimension (S): 12.0mm
• Dimension (Z): 37.1mm
• Dimension (Bi): 35.4mm
• Dimension (N): 14.3mm
• Dimension (M): 19.8mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Bearing Insert: UE 205
• Housing Number: F 205
• Weight (kg): 1.1
