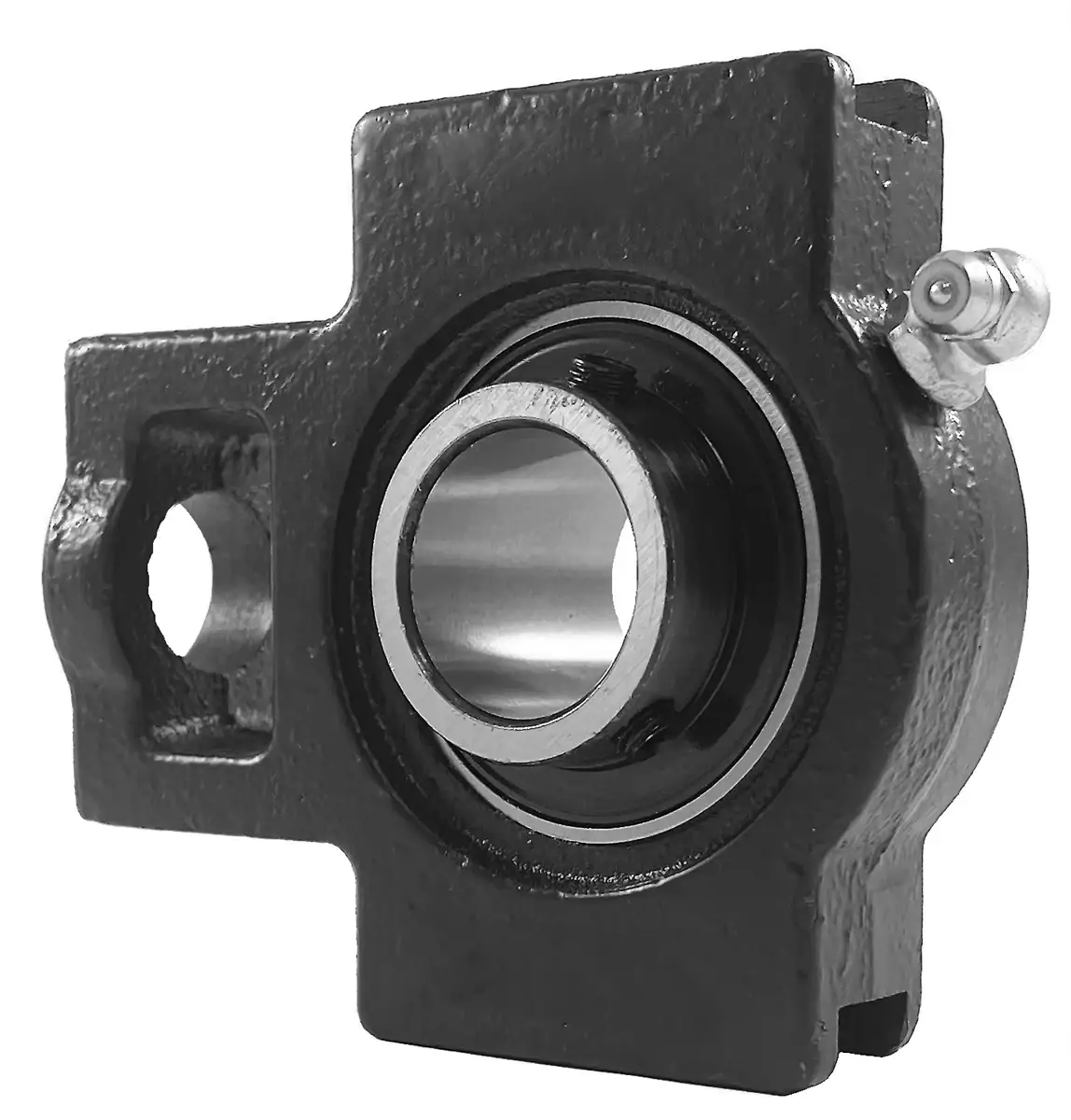

UCST214-43 Bearing | 2-11/16" Take-Up Bearing

UCST214-43 bearing is a 2-11/16" bore normal-duty take-up bearing that utilizes set screws to secure to a 2-11/16" shaft. UCST214-43 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST214-43 bearing with a 2-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST214-43 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST214-43 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST214-43 bearings, and we will be happy to assist you!

UCST214-43 Take-Up Bearing Dimensions

• Part #: UCST 214-43
• Shaft Diameter (d): 2-11/16"
• Dimension (O): 1.25"
• Dimension (G): 0.81"
• Dimension (P): 4.38"
• Dimension (Q): 2.75"
• Dimension (S): 1.63"
• Dimension (B): 4.75"
• Dimension (K): 1.06"
• Dimension (E): 5.94"
• Dimension (A): 6.56"
• Dimension (W): 8.83"
• Dimension (J): 2.75"
• Dimension (L): 1.81"
• Dimension (H): 5.38"
• Dimension (Bi): 2.9370"
• Dimension (N): 1.1890"
• Dimension (M): 1.7480"
• Dynamic Load Rating (LBS): 13,981
• Static Load Rating (LBS): 9,869
• Bearing Insert: UC 214-43
• Housing Number: ST 214
• Weight (LBS): 15.6
