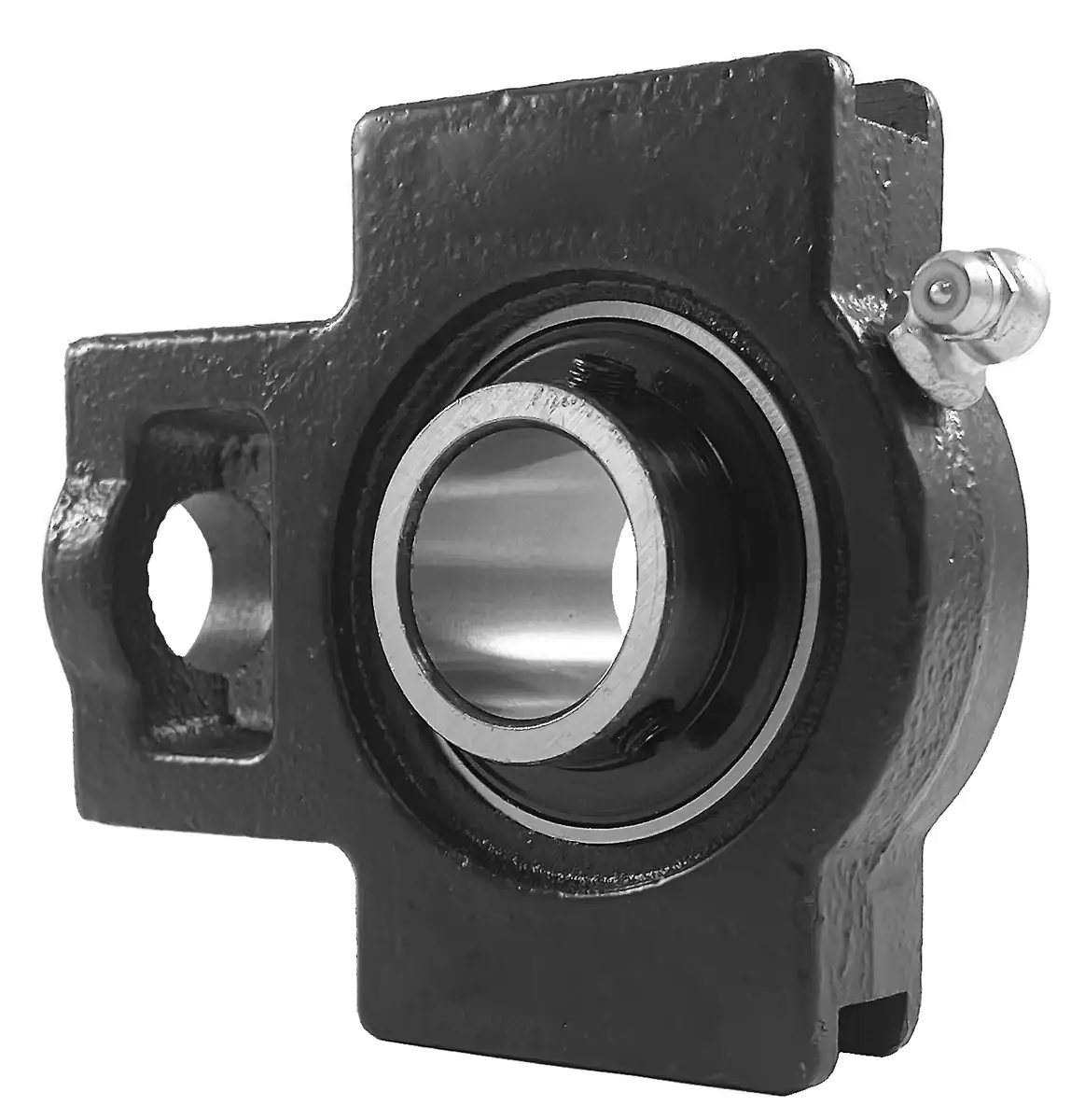

UCST210-31 Bearing | 1-15/16" Take-Up Bearing

UCST210-31 bearing is a 1-15/16" bore normal-duty take-up bearing that utilizes set screws to secure to a 1-15/16" shaft. UCST210-31 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST210-31 bearing with a 1-15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST210-31 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST210-31 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST210-31 bearings, and we will be happy to assist you!

UCST210-31 Take-Up Bearing Dimensions

• Part #: UCST 210-31
• Shaft Diameter (d): 1-15/16"
• Dimension (O): 0.75"
• Dimension (G): 0.63"
• Dimension (P): 3.25"
• Dimension (Q): 1.94"
• Dimension (S): 1.13"
• Dimension (B): 3.38"
• Dimension (K): 0.69"
• Dimension (E): 4.00"
• Dimension (A): 4.63"
• Dimension (W): 5.88"
• Dimension (J): 1.94"
• Dimension (L): 1.47"
• Dimension (H): 3.56"
• Dimension (Bi): 2.0315"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330
• Bearing Insert: UC 210-31
• Housing Number: ST 210
• Weight (LBS): 5.7
