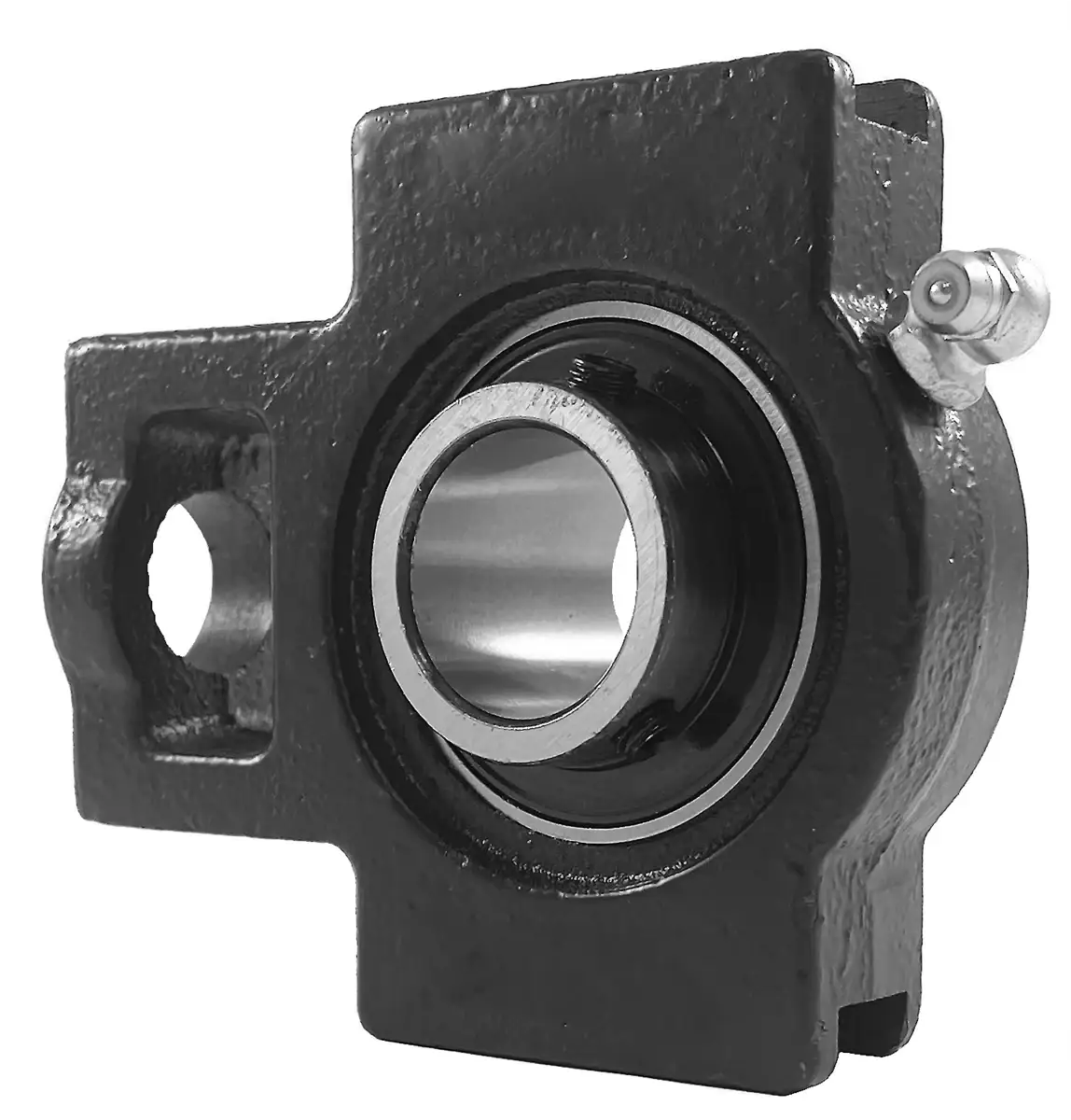

UCST209 Bearing | 45mm Take-Up Bearing

UCST209 bearing is a 45mm bore normal-duty take-up bearing that utilizes set screws to secure to a 45mm shaft. UCST209 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior UCST209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCST209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. Our UCST209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCST209 bearings, and we will be happy to assist you!

UCST209 Take-Up Bearing Dimensions

• Part #: UCST 209
• Shaft Diameter (d): 45mm
• Dimension (O): 19.0mm
• Dimension (G): 16.0mm
• Dimension (P): 83.0mm
• Dimension (Q): 49.0mm
• Dimension (S): 29.0mm
• Dimension (B): 83.0mm
• Dimension (K): 17.5mm
• Dimension (E): 101.6mm
• Dimension (A): 117.0mm
• Dimension (W): 144.0mm
• Dimension (J): 49.0mm
• Dimension (L): 35.0mm
• Dimension (H): 87.0mm
• Dimension (Bi): 49.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: UC 209
• Housing Number: ST 209
• Weight (kg): 2.5
