UCPX12-38 Bearing | 2-3/8" 2-Bolt Pillow Block Bearing

UCPX12-38 bearing is a two-bolt medium-duty pillow block bearing with a 2-3/8" bore. It utilizes set-screws for locking onto a 2-3/8" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCPX12-38 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCPX12-38 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCPX12-38 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCPX12-38 bearings contact our customer support team and we will be happy to assist you!

UCPX12-38 Bearing Dimensions

• Part #: UCXP 12-38
• Shaft Diameter (d): 2-3/8"
• Dimension (H): 3.000"
• Dimension (A): 11.25"
• Dimension (E): 8.00"
• Dimension (B): 3.25"
• Dimension (S2): 1.63"
• Dimension (S1): 0.81"
• Dimension (G): 1.25"
• Dimension (W): 5.94"
• Dimension (Bi): 2.5630"
• Dimension (N): 1.0000"
• Dimension (M): 1.5630"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 12,859
• Static Load Rating (LBS): 8,994

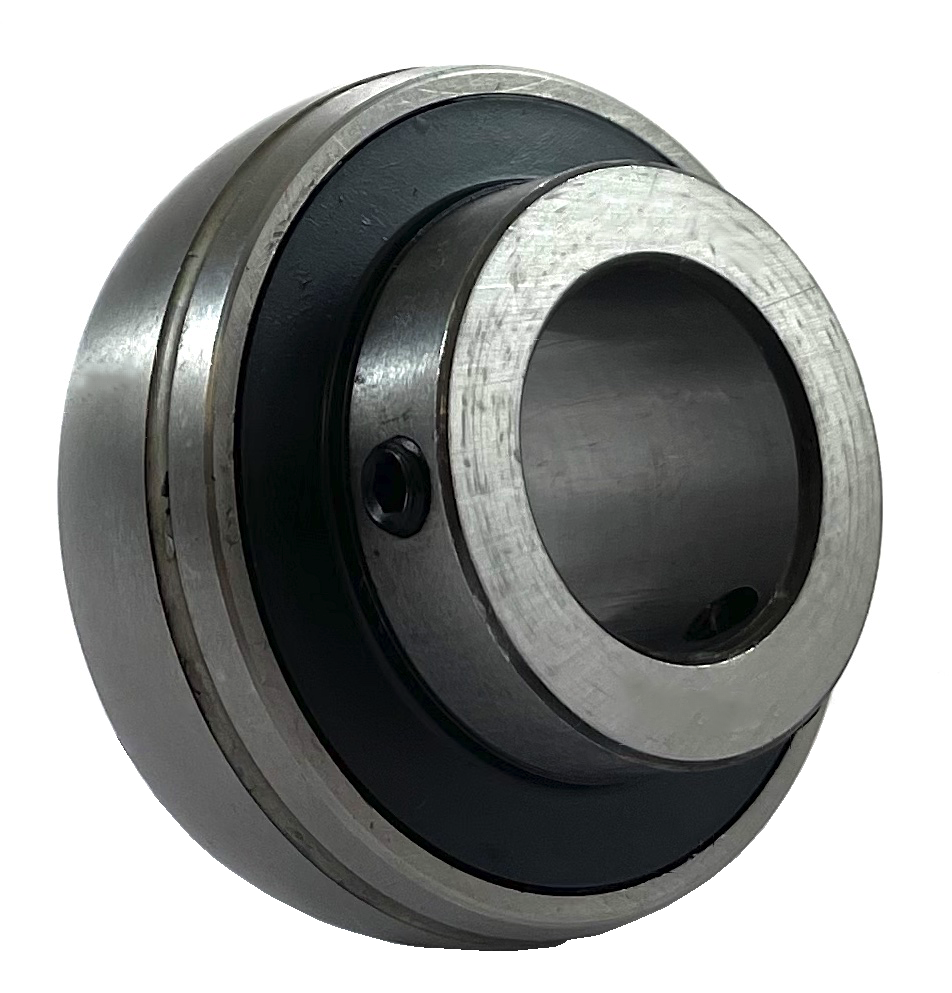

• Bearing Insert: UCX 12-38
• Housing Number: PX 12
• Weight (LBS): 14.8
