UCPX09-28 Bearing | 1-3/4" 2-Bolt Pillow Block Bearing

UCPX09-28 bearing is a two-bolt medium-duty pillow block bearing with a 1-3/4" bore. It utilizes set-screws for locking onto a 1-3/4" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our UCPX09-28 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCPX09-28 pillow block bearings are utilized in a wide range of applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this UCPX09-28 bearing is directly interchangeable with other brands. For further information or to get a quote on our UCPX09-28 bearings contact our customer support team and we will be happy to assist you!

UCPX09-28 Bearing Dimensions

• Part #: UCPX 09-28
• Shaft Diameter (d): 1-3/4"
• Dimension (H): 2.313"
• Dimension (A): 8.75"
• Dimension (E): 6.13"
• Dimension (B): 2.63"
• Dimension (S2): 1.31"
• Dimension (S1): 0.72"
• Dimension (G): 1.00"
• Dimension (W): 4.56"
• Dimension (Bi): 2.0315"
• Dimension (N): 0.7480"
• Dimension (M): 1.2835"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 7,867
• Static Load Rating (LBS): 5,330

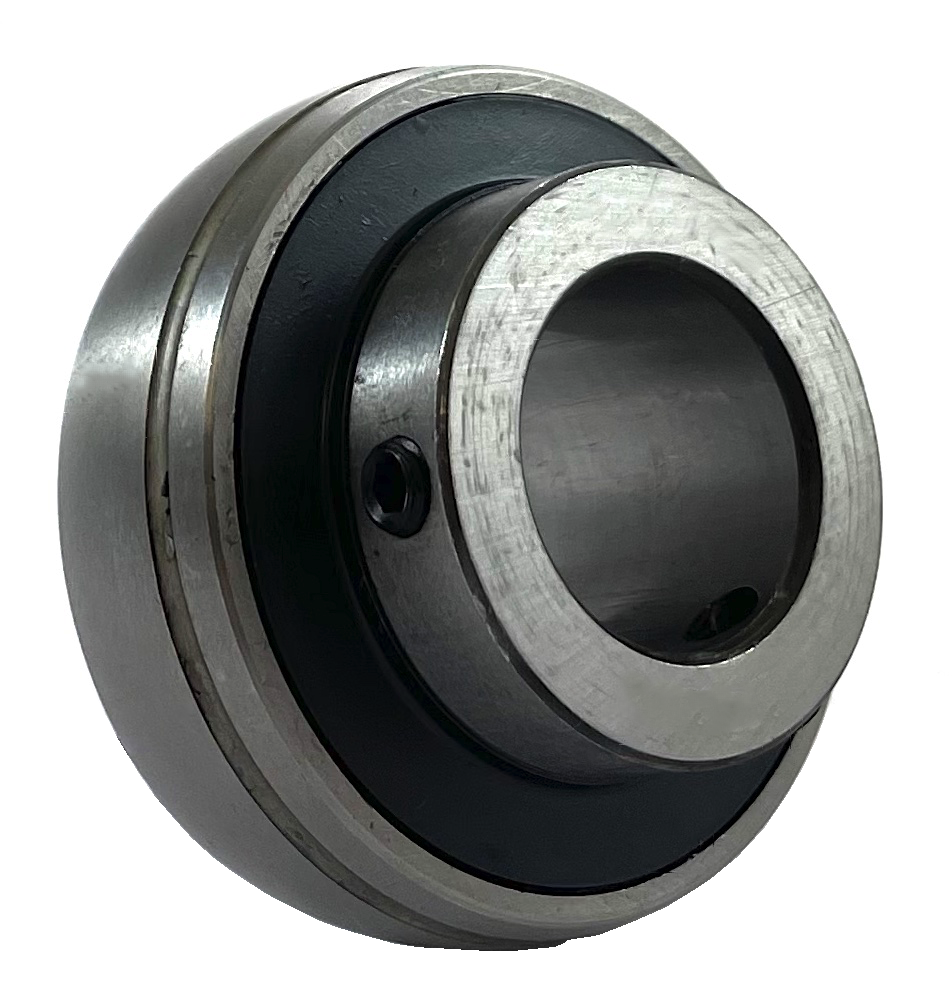

• Bearing Insert: UCX 09-28
• Housing Number: PX 09
• Weight (LBS): 7.3
