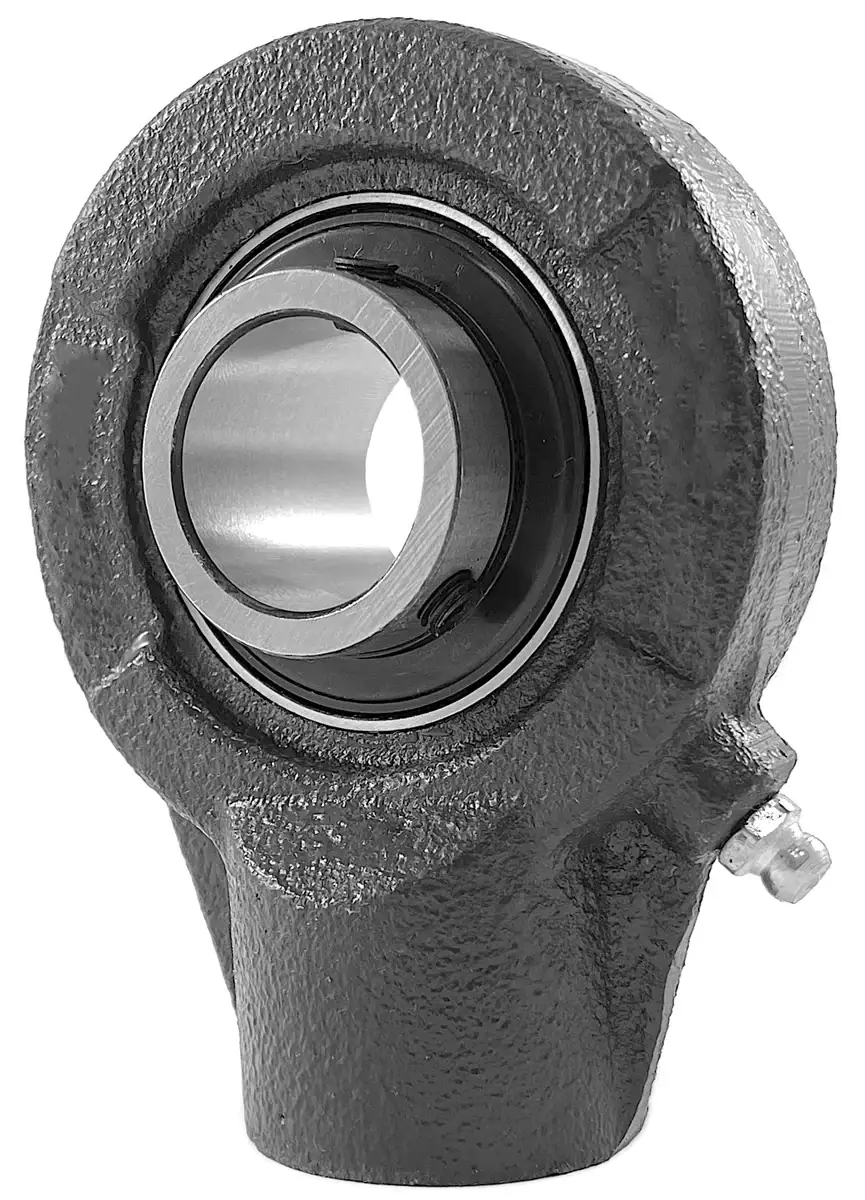

UCHA214-43 Bearing | 2-11/16" Hanger Bearing

UCHA214-43 bearing is a 2-11/16" bore normal-duty hanger bearing that utilizes set screws to secure to a 2-11/16" shaft. UCHA214-43 hanger bearings are designed for applications such as screw conveyors and suspended shafts. Our superior UCHA214-43 bearing with a 2-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA214-43 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA214-43 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA214-43 bearings, and we will be happy to assist you!

UCHA214-43 Hanger Bearing Dimensions

• Part #: UCHA214-43
• Shaft Diameter (d): 2-11/16"
• Dimension (A): 6.54"
• Dimension (W): 7.87"
• Dimension (C): 0.37"
• Dimension (H): 4.61"
• Dimension (L): 2.76"
• Dimension (D): 1.26"
• Dimension (K): PF 1-1/2
• Dimension (Bi): 2.9370"
• Dimension (N): 1.3110"
• Dimension (M): 1.7480"
• Dynamic Load Rating (LBS): 14,974
• Static Load Rating (LBS): 10,757
• Bearing Insert: UCX 14-43
• Housing Number: HA 215
• Weight (LBS): 13.2
