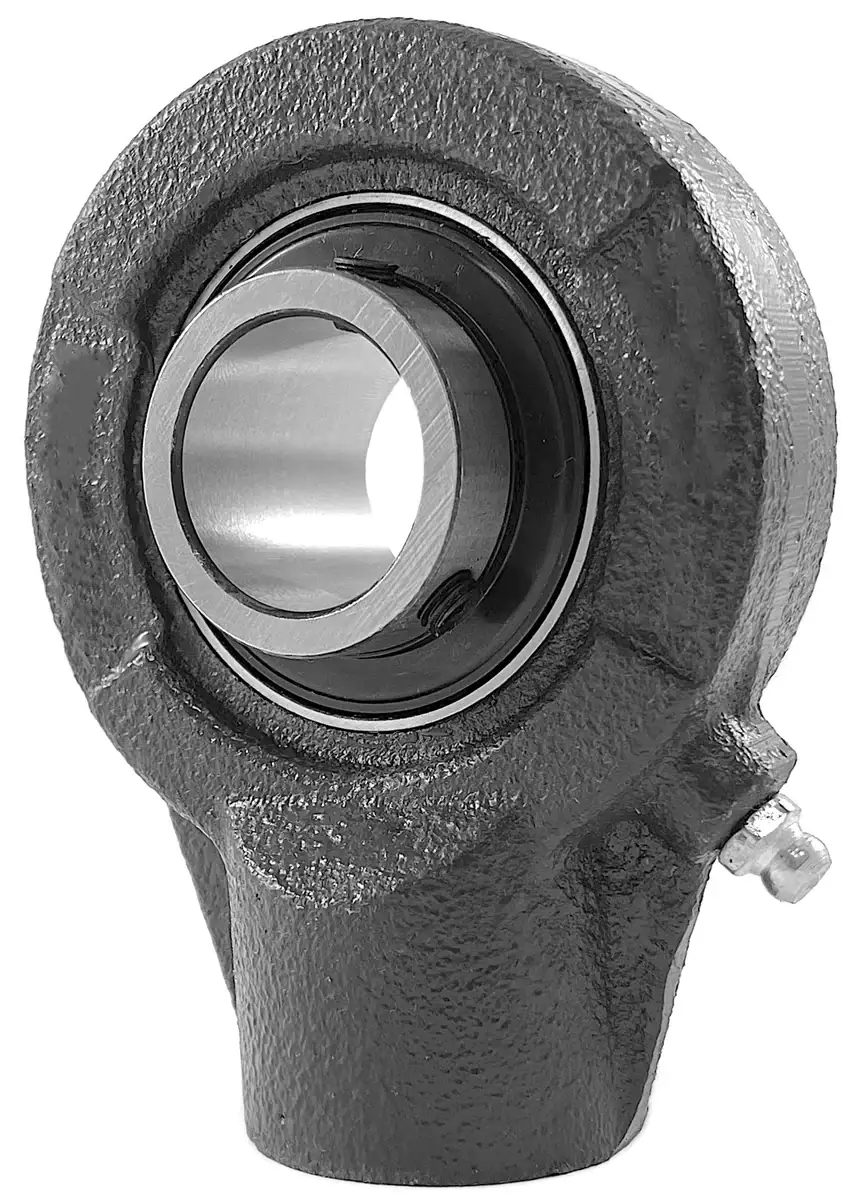

UCHA212 Bearing | 60mm Hanger Bearing

UCHA212 bearing is a 60mm bore normal-duty hanger bearing that utilizes set screws to secure to a 60mm shaft. UCHA212 hanger bearings are designed for for applications such as screw conveyors and suspended shafts. Our superior UCHA212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our UCHA212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. Our UCHA212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCHA212 bearings, and we will be happy to assist you!

UCHA212 Hanger Bearing Dimensions

• Part #: UCHA212
• Shaft Diameter (d): 60mm
• Dimension (A): 142.0mm
• Dimension (W): 173.0mm
• Dimension (C): 9.0mm
• Dimension (H): 102.0mm
• Dimension (L): 60.0mm
• Dimension (D): 28.0mm
• Dimension (K): PF 1-1/4
• Dimension (Bi): 65.1mm
• Dimension (N): 25.4mm
• Dimension (M): 39.7mm
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: UC 212
• Housing Number: HA 212
• Weight (kg): 3.7
