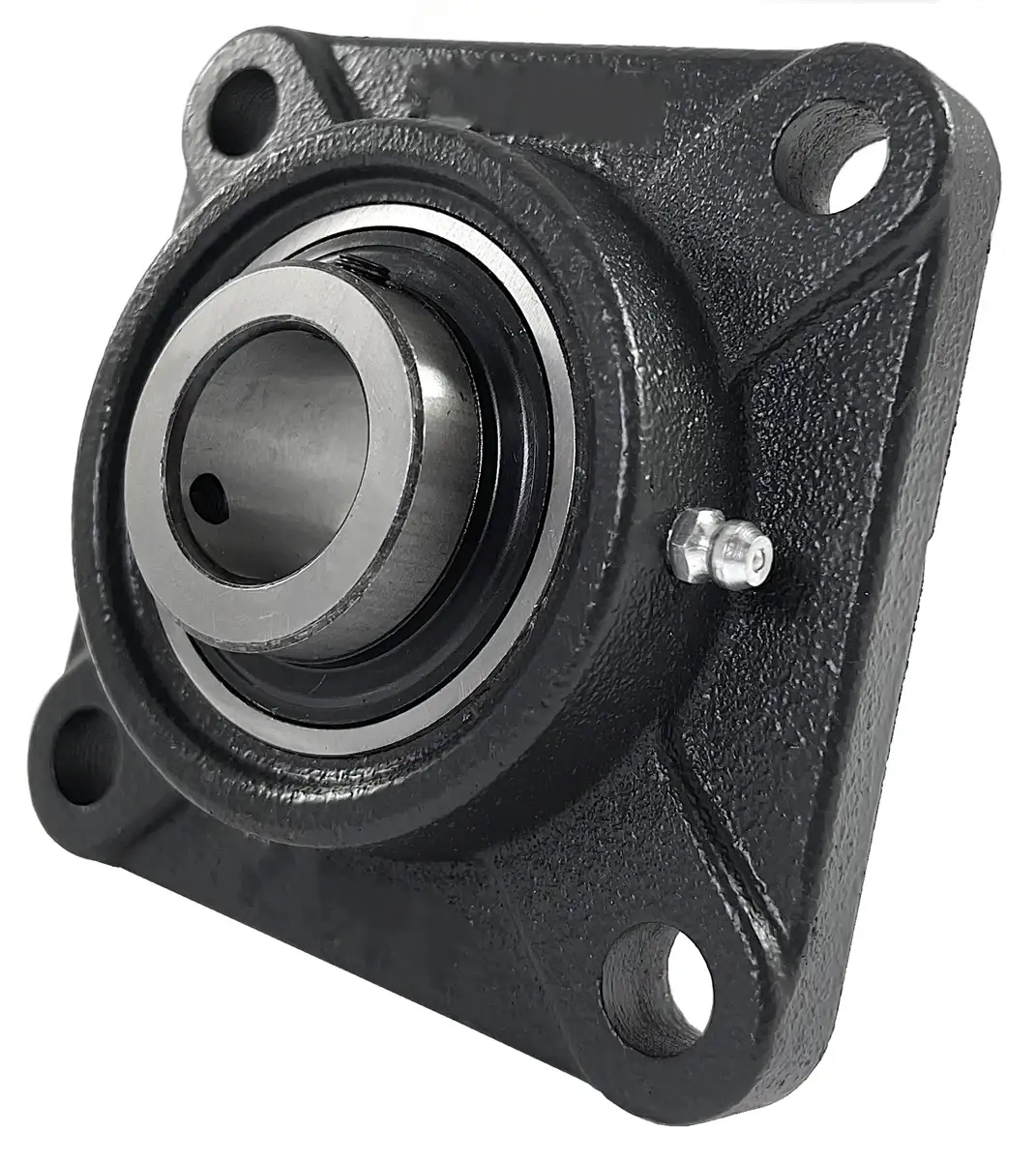

UCFX07 Bearing | 35mm 4-Bolt Flange Bearing

UCFX07 bearing is a 35mm bore four-bolt medium-duty flange bearing that utilizes set screws to secure to a 35mm shaft. UCFX07 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCFX07 bearing with a 35mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFX07 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFX07 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFX07 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFX07 bearings, and we will be happy to assist you!

UCFX07 Bearing Dimensions

• Part #: UCFX 35
• Shaft Diameter (d): 35mm
• Dimension (A): 130.0mm
• Dimension (E): 101.6mm
• Dimension (I): 21.0mm
• Dimension (G): 16.0mm
• Dimension (L): 36.0mm
• Dimension (S): 14.0mm
• Dimension (Z): 51.2mm
• Dimension (Bi): 49.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M11
• Dynamic Load Rating (kN): 6,634
• Static Load Rating (kN): 4,079
• Bearing Insert: UCX 07
• Housing Number: F 208
• Weight (kg): 2.6
