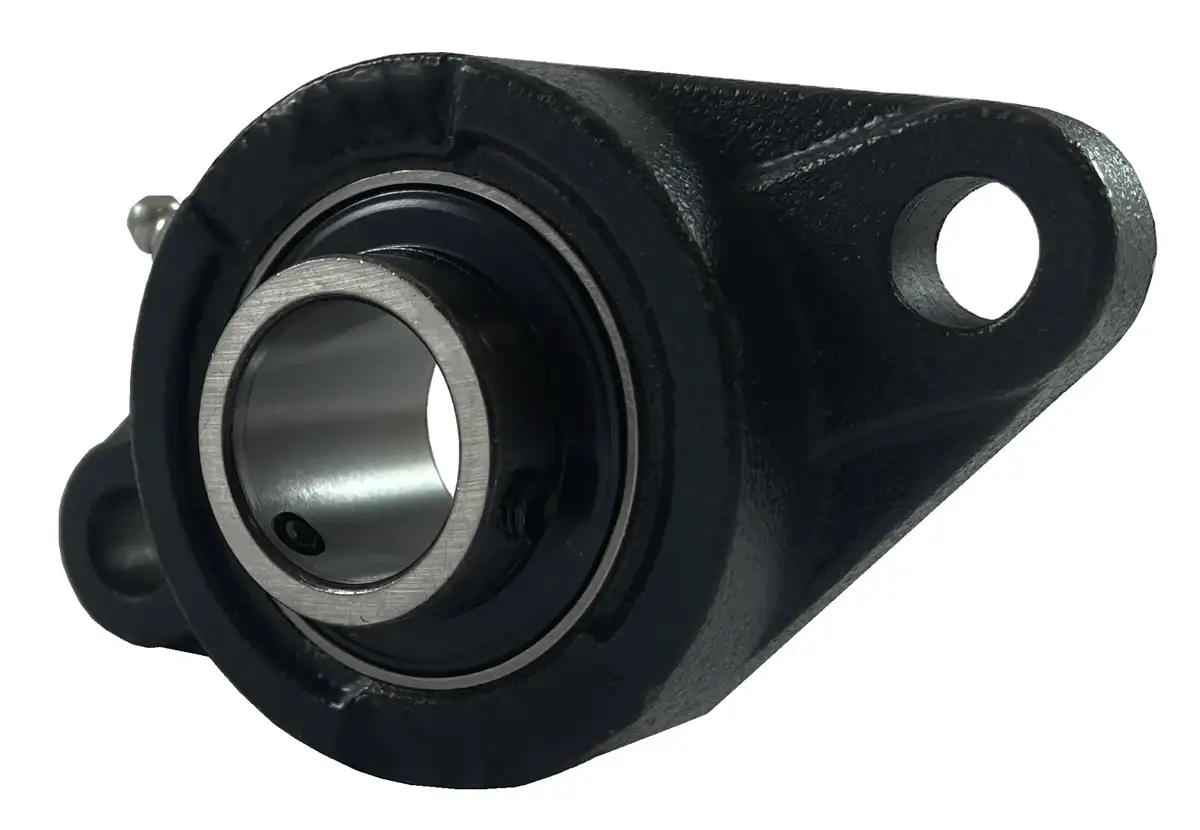

UCFT208 Bearing | 40mm 2-Bolt Flange Bearing

UCFT208 bearing is a 40mm bore two-bolt normal-duty flange bearing that utilizes set screws to secure to a 40mm shaft. UCFT208 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior UCFT208 bearing with a 40mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFT208 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCFT208 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFT208 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFT208 bearings, and we will be happy to assist you!

UCFT208 Bearing Dimensions

• Part #: UCFT 208
• Shaft Diameter (d): 40mm
• Dimension (A): 171.0mm
• Dimension (E): 143.7mm
• Dimension (I): 21.0mm
• Dimension (G): 14.0mm
• Dimension (L): 38.0mm
• Dimension (S): 13.0mm
• Dimension (B): 105.0mm
• Dimension (Z): 51.2mm
• Dimension (Bi): 49.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M12
• Dynamic Load Rating (kN): 29.51
• Static Load Rating (kN): 18.14
• Bearing Insert: UC 208
• Housing Number: FT 208
• Weight (kg): 1.5
