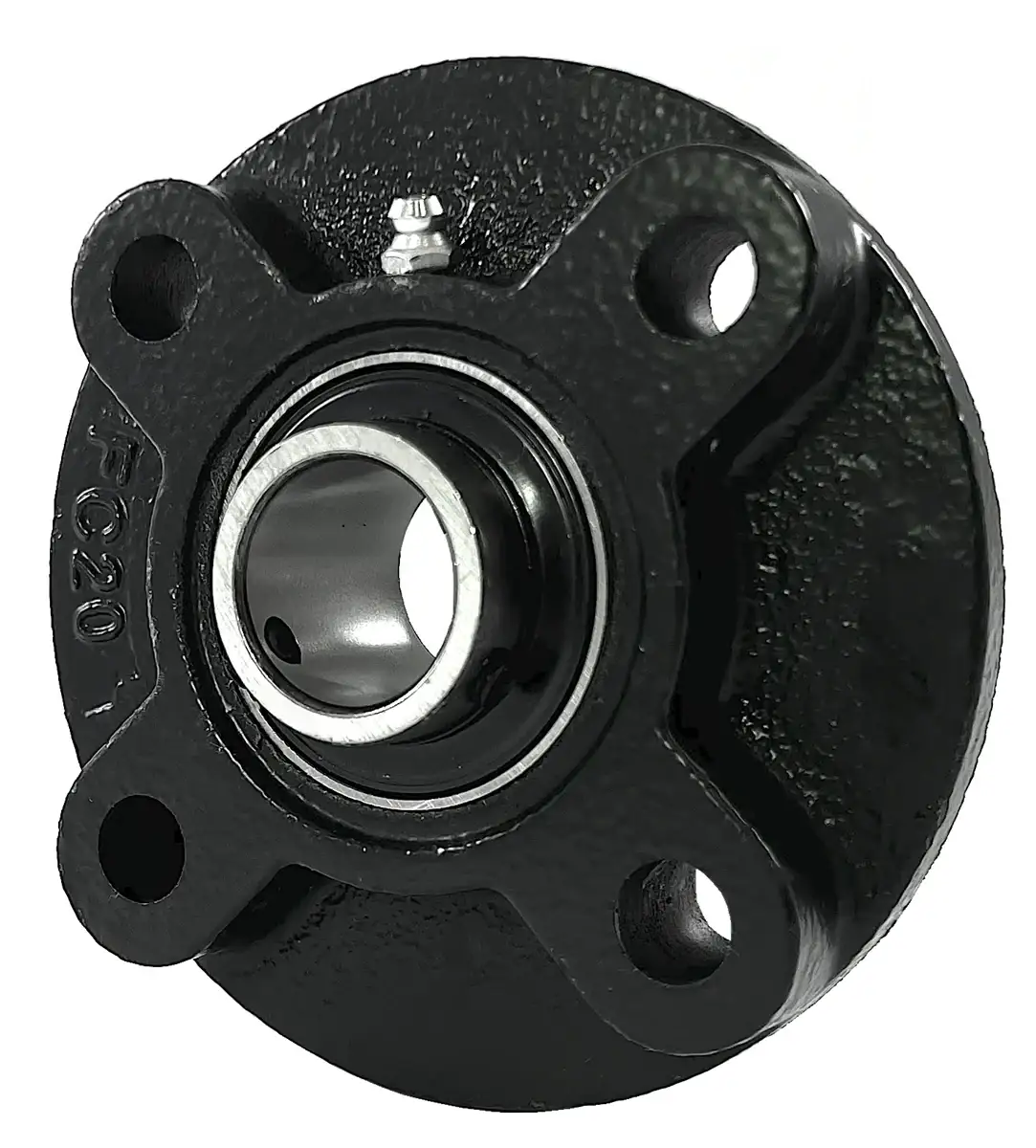

UCFCS207 Bearing | 35mm 4-Bolt Flange Bearing

UCFCS207 bearing is a 35mm bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 35mm shaft and has an inch based housing. UCFCS207 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCS207 bearing with a 35mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCS207 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCS207 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCS207 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCS207 bearings, and we will be happy to assist you!

UCFCS207 Bearing Dimensions

• Part #: UCFCS207
• Shaft Diameter (d): 35mm
• Dimension (A): 127.0mm
• Dimension (P): 104.2mm
• Dimension (E): 74.0mm
• Dimension (I): 7.9mm
• Dimension (S): 12.0mm
• Dimension (J): 9.4mm
• Dimension (K): 9.4mm
• Dimension (G): 22.6mm
• Dimension (F): 85.7mm
• Dimension (Z): 33.3mm
• Dimension (Bi): 42.9mm
• Dimension (N): 17.5mm
• Dimension (M): 25.4mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 25.69
• Static Load Rating (kN): 15.56
• Bearing Insert: UC 207
• Housing Number: FCS 207
• Weight (kg): 1.6
