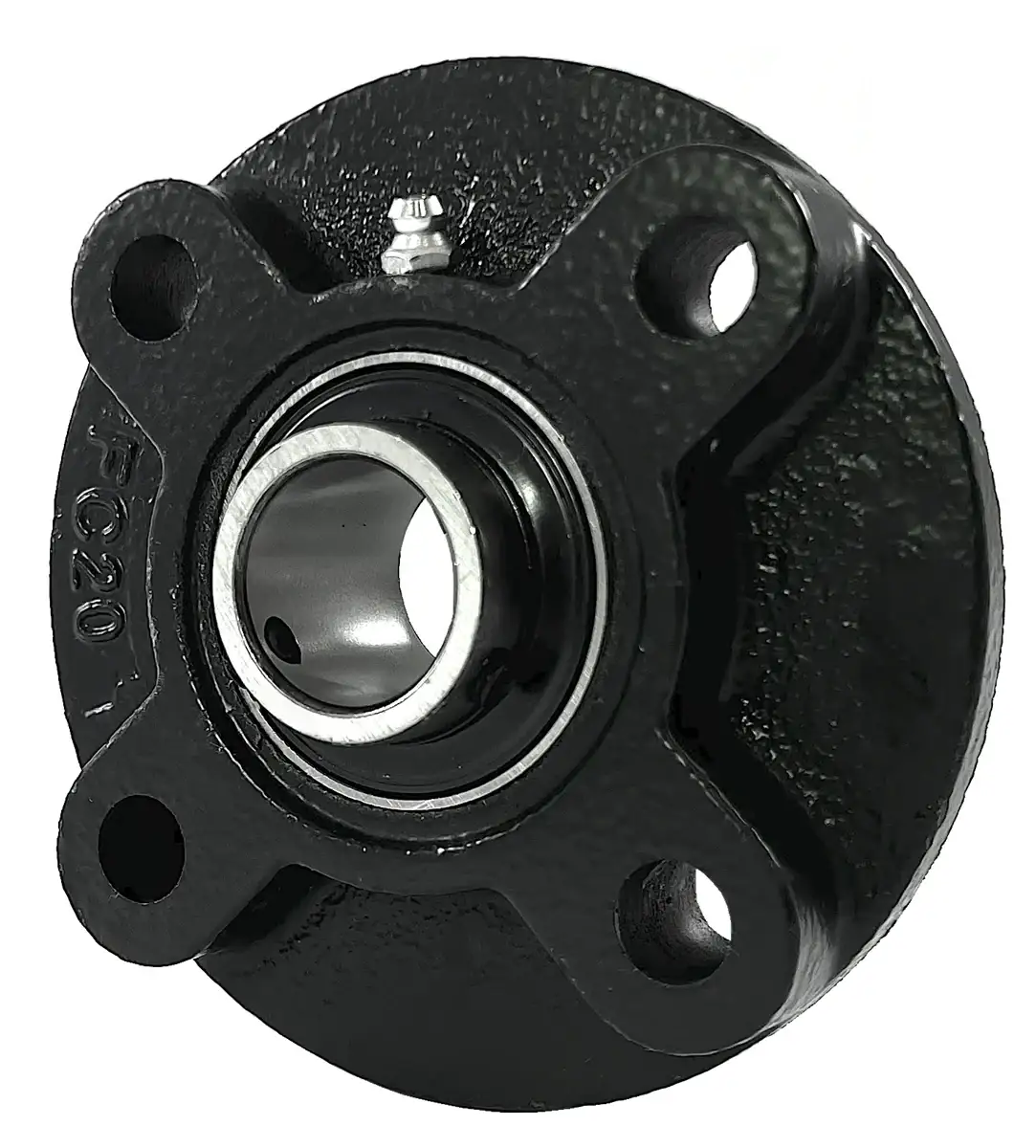

UCFCS206-18 Bearing | 1-1/8" 4-Bolt Flange Bearing

UCFCS206-18 bearing is a 1-1/8" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 1-1/8" shaft and has an inch based housing. UCFCS206-18 flange cartridge bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior UCFCS206-18 bearing with a 1-1/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFCS206-18 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFCS206-18 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFCS206-18 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFCS206-18 bearings, and we will be happy to assist you!

UCFCS206-18 Bearing Dimensions

• Part #: UCFCS206-18
• Shaft Diameter (d): 1-1/8"
• Dimension (A): 4.38"
• Dimension (P): 3.625"
• Dimension (E): 2.56"
• Dimension (I): 0.39"
• Dimension (S): 0.47"
• Dimension (J): 0.25"
• Dimension (K): 0.38"
• Dimension (G): 0.94"
• Dimension (F): 3.000"
• Dimension (Z): 1.27"
• Dimension (Bi): 1.5000"
• Dimension (N): 0.6260"
• Dimension (M): 0.8740"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: UC 206-18
• Housing Number: FCS 206
• Weight (LBS): 2.6
