UCFBS209 Bearing | 45mm 3-Bolt Flange Bearing

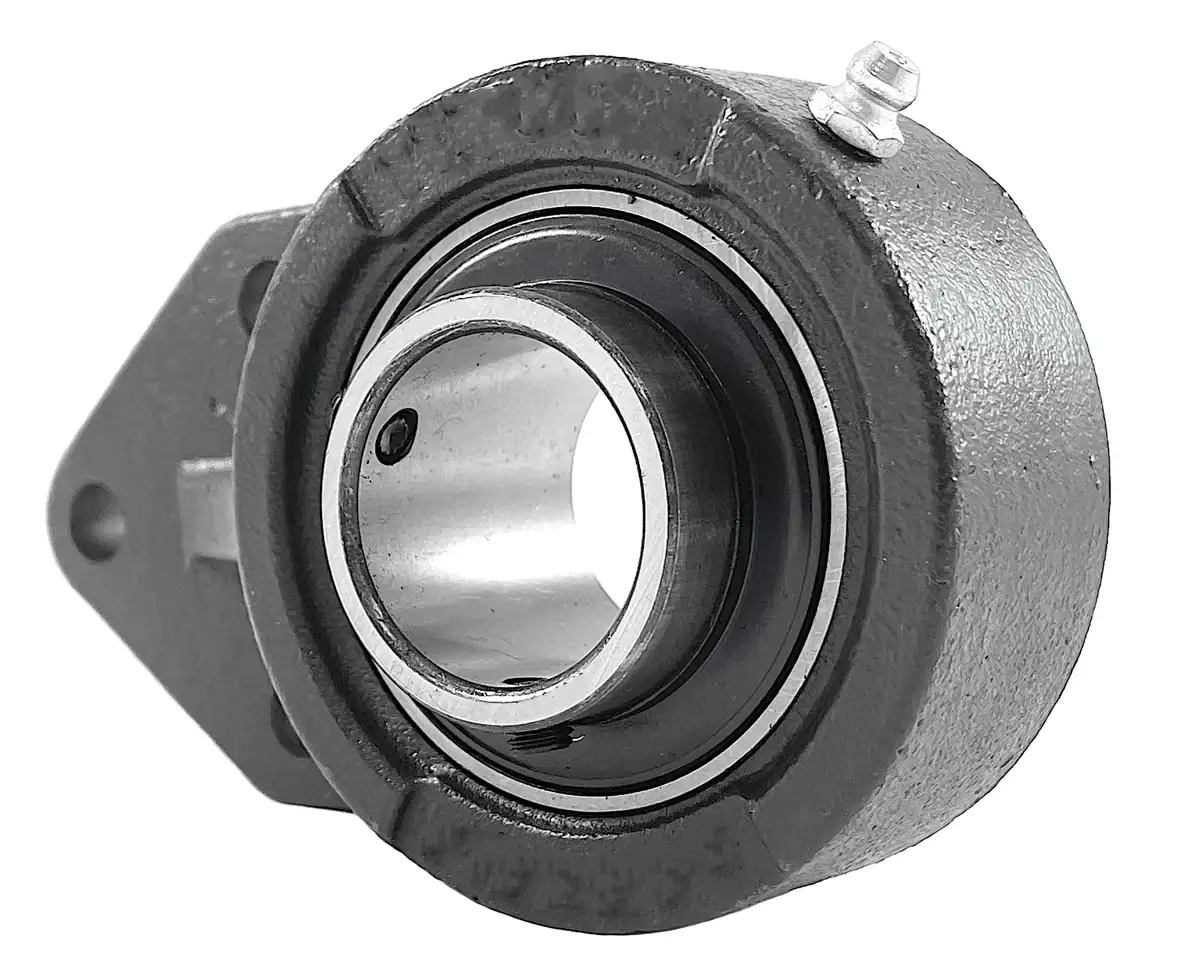

UCFBS209 bearing is a 45mm bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 45mm shaft. UCFBS209 flange bearings are designed with an inch-based housing and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFBS209 bearing with a 45mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFBS209 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFBS209 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFBS209 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFBS209 bearings, and we will be happy to assist you!

UCFBS209 Bearing Dimensions

• Part #: UCFBS 209
• Shaft Diameter (d): 45mm
• Dimension (A): 174.0mm
• Dimension (H): 65.0mm
• Dimension (E): 54.0mm
• Dimension (J): 42.9mm
• Dimension (I): 21.0mm
• Dimension (G): 18.0mm
• Dimension (L): 36.0mm
• Dimension (S): 11.9mm
• Dimension (B): 106.0mm
• Dimension (F): 80.0mm
• Dimension (Z): 51.2mm
• Dimension (Bi): 49.2mm
• Dimension (N): 19.0mm
• Dimension (M): 30.2mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 31.85
• Static Load Rating (kN): 20.80
• Bearing Insert: UC 209
• Housing Number: FBS 209
• Weight (kg): 2.0
