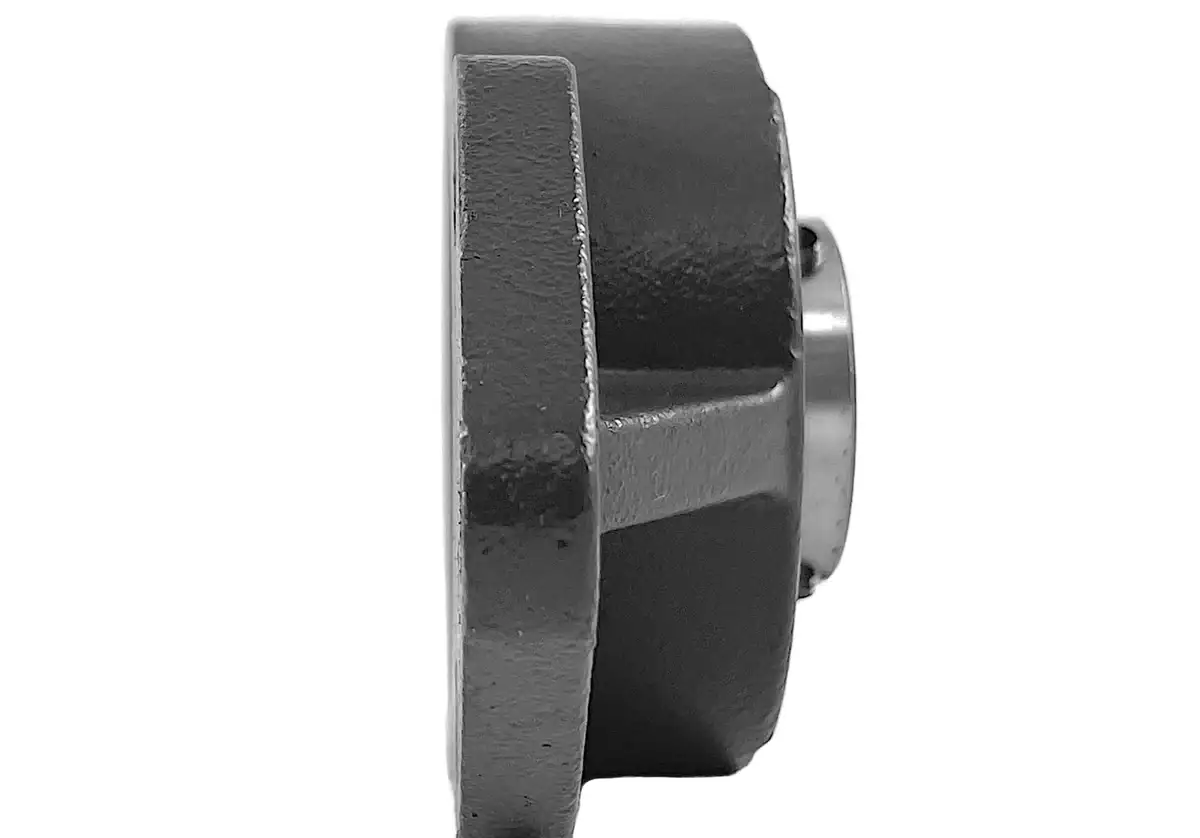

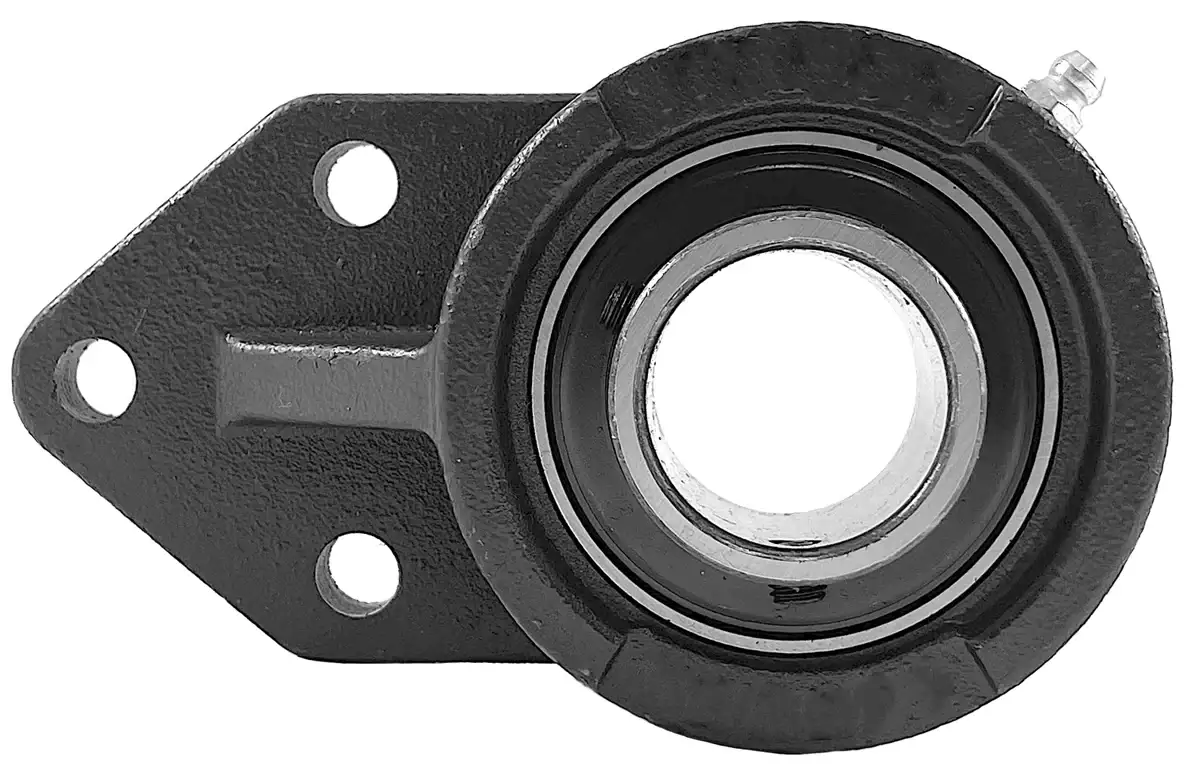

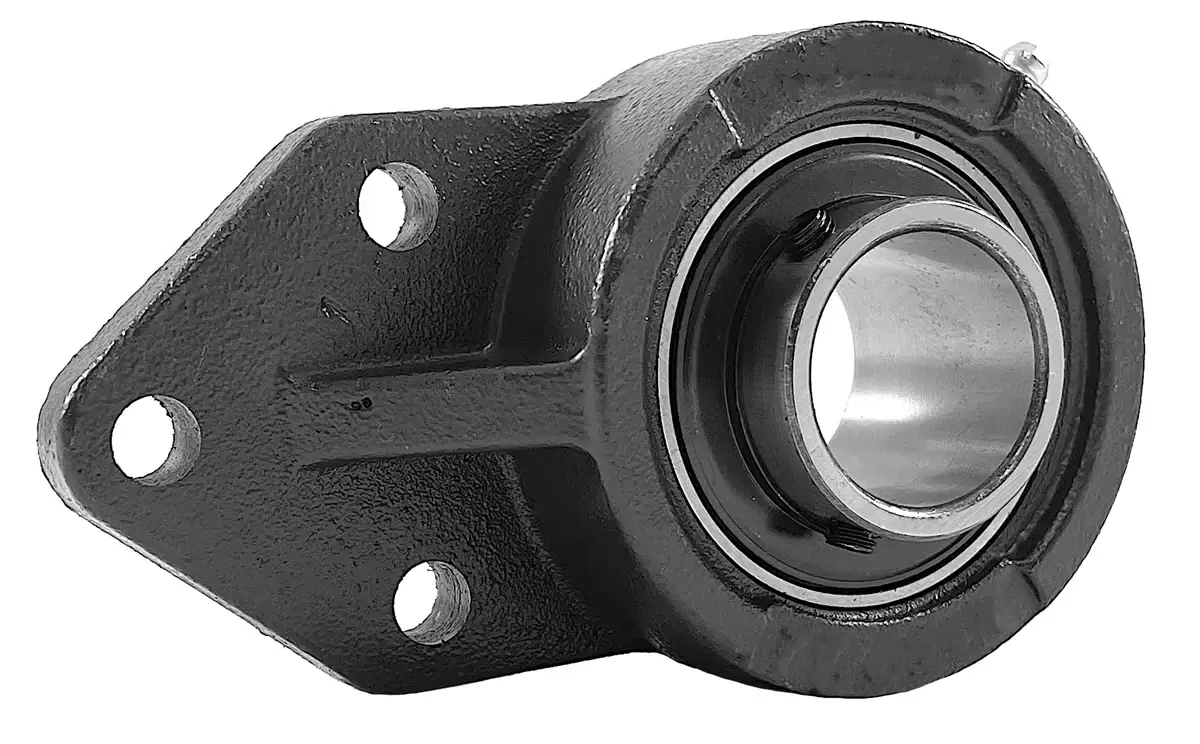

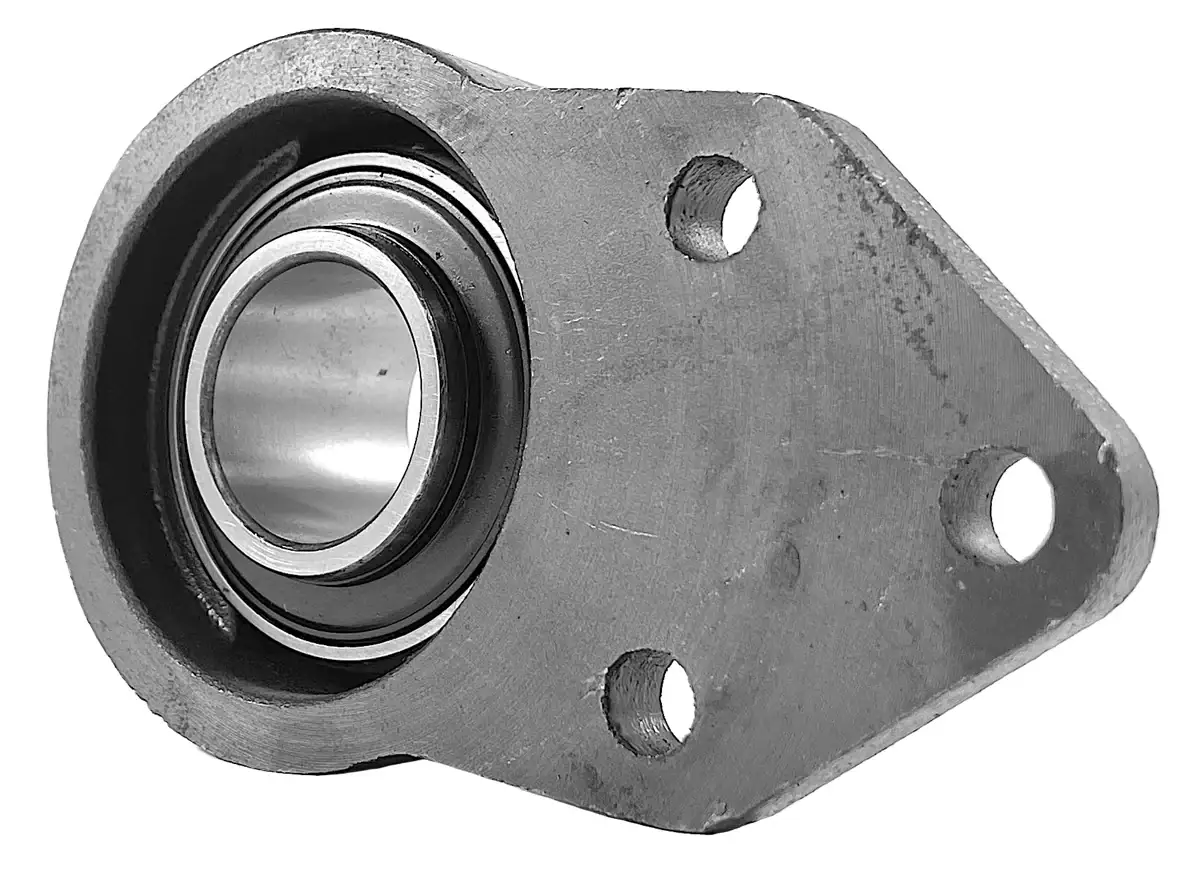

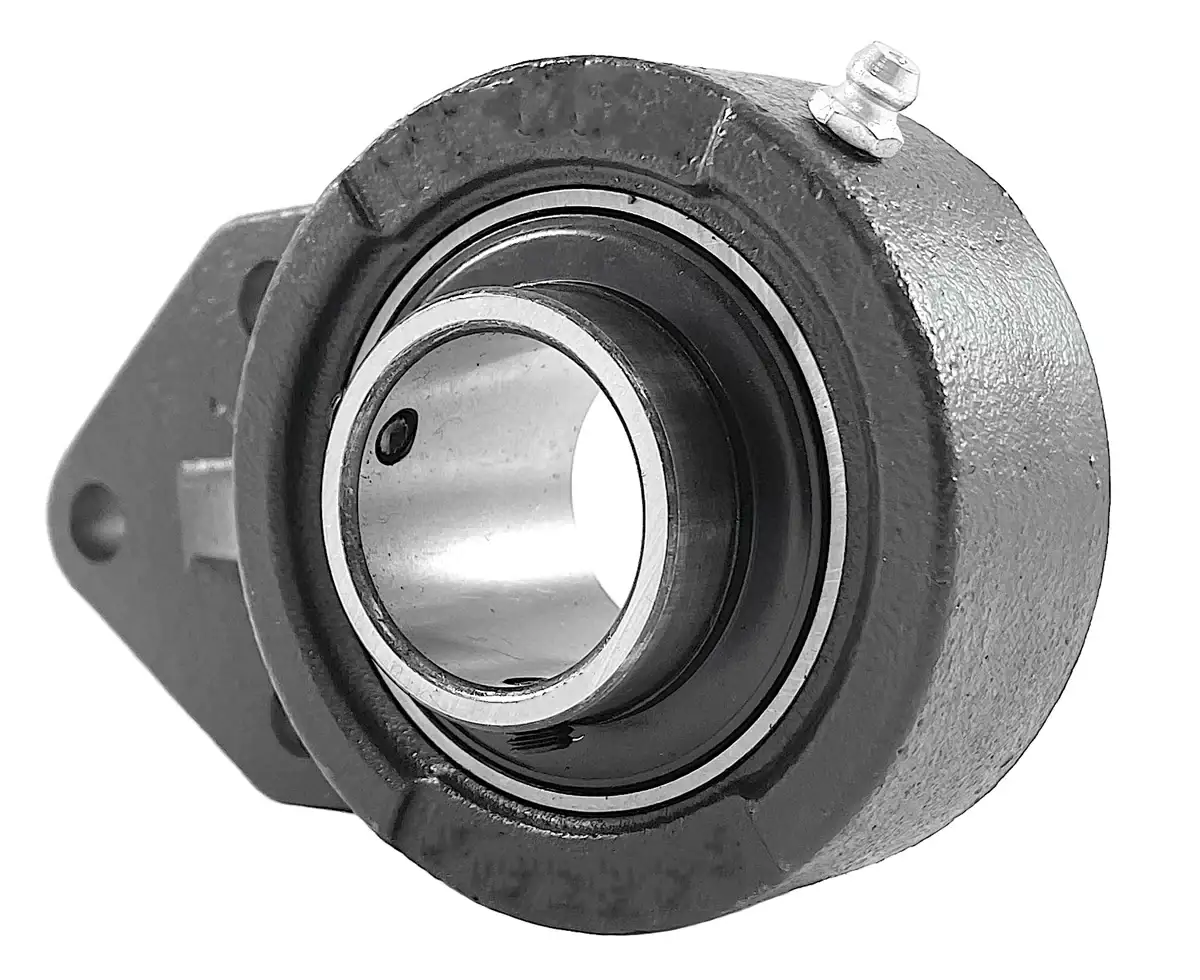

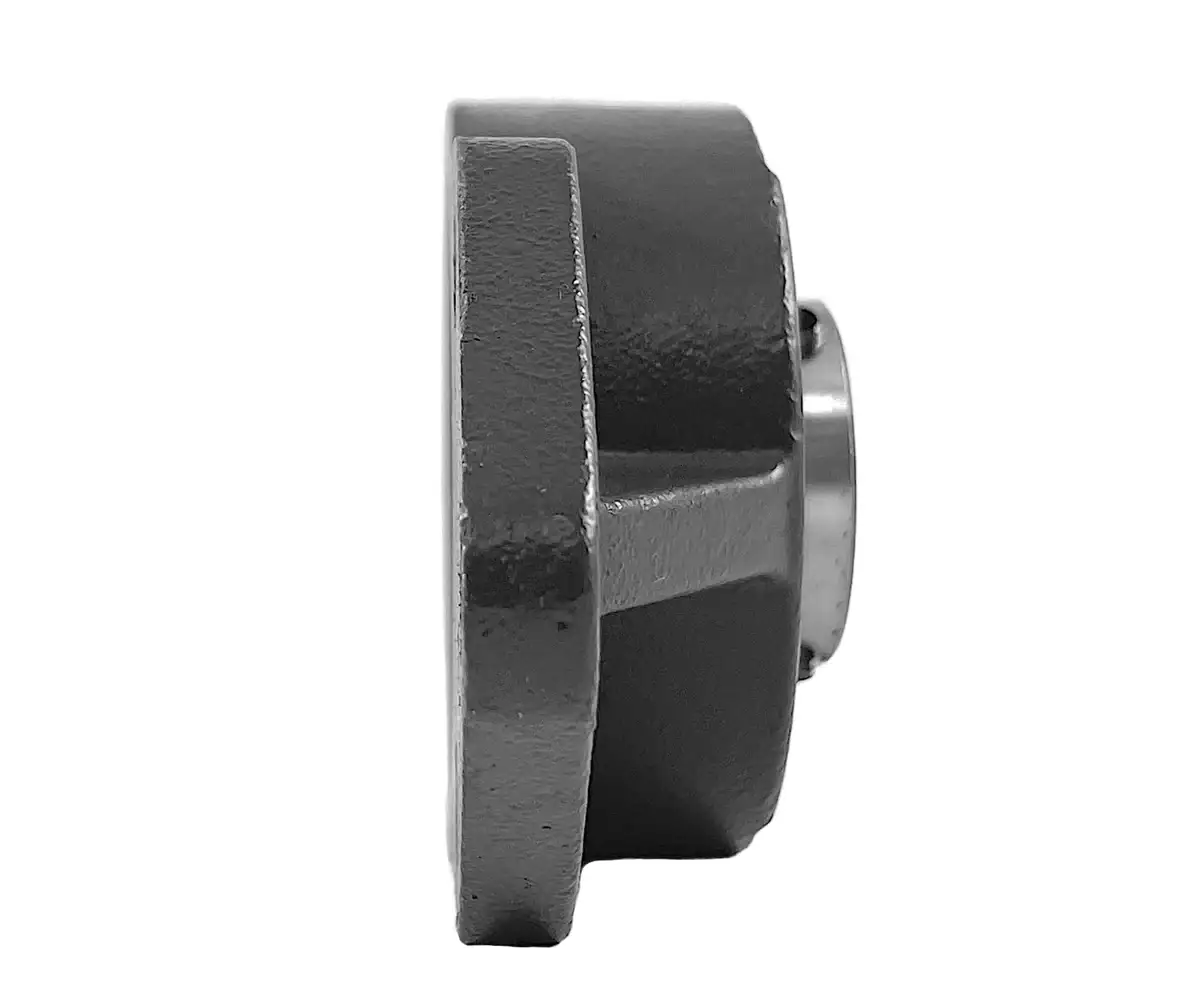

UCFBS201 Bearing | 12mm 3-Bolt Flange Bearing

UCFBS201 bearing is a 12mm bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 12mm shaft. UCFBS201 flange bearings are designed with an inch-based housing and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFBS201 bearing with a 12mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFBS201 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFBS201 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFBS201 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFBS201 bearings, and we will be happy to assist you!

UCFBS201 Bearing Dimensions

• Part #: UCFBS 201
• Shaft Diameter (d): 12mm
• Dimension (A): 108.0mm
• Dimension (H): 42.9mm
• Dimension (E): 38.1mm
• Dimension (J): 22.0mm
• Dimension (I): 16.0mm
• Dimension (G): 8.0mm
• Dimension (L): 25.0mm
• Dimension (S): 10.0mm
• Dimension (B): 64.0mm
• Dimension (F): 60.0mm
• Dimension (Z): 34.1mm
• Dimension (Bi): 31.0mm
• Dimension (N): 12.7mm
• Dimension (M): 18.3mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: UC 201
• Housing Number: FBS 204
• Weight (kg): 0.7
