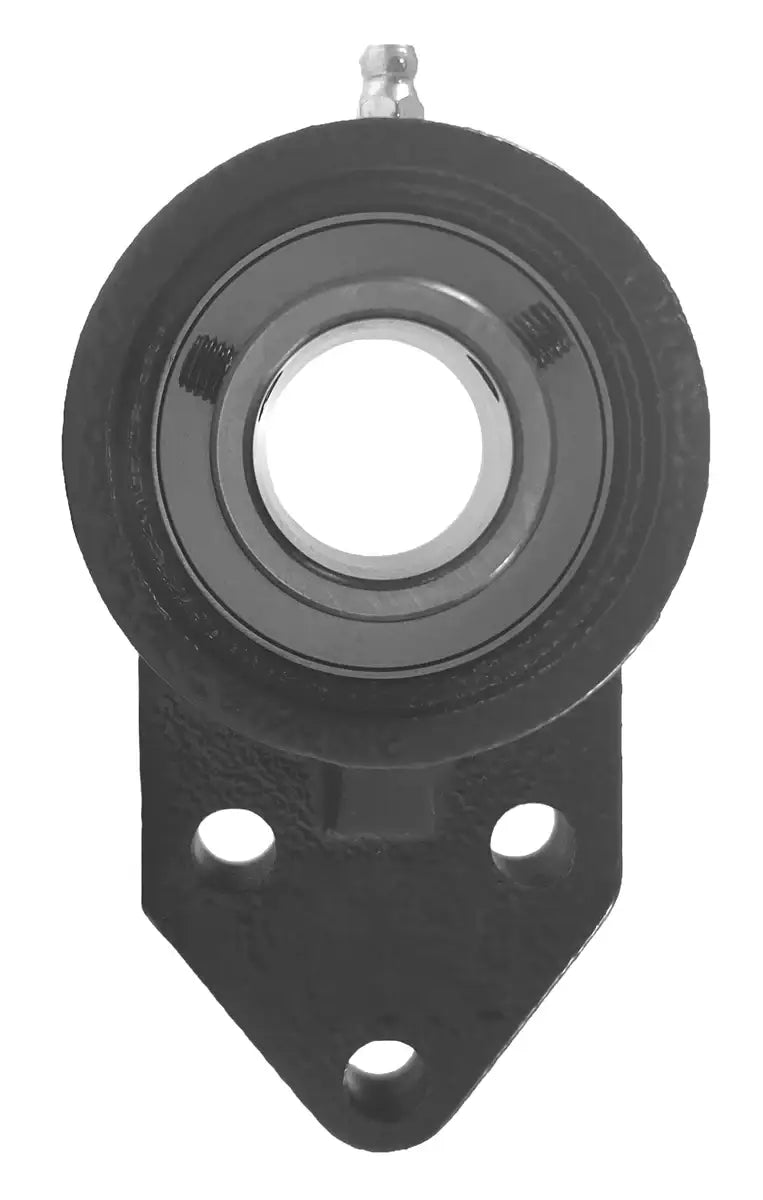

UCFB205-16 Bearing | 1" 3-Bolt Flange Bearing

UCFB205-16 bearing is a 1" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 1" shaft. UCFB205-16 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFB205-16 bearing with a 1" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFB205-16 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFB205-16 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFB205-16 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFB205-16 bearings, and we will be happy to assist you!

UCFB205-16 Bearing Dimensions

• Part #: UCFB 205-16
• Shaft Diameter (d): 1"
• Dimension (A): 4.57"
• Dimension (H): 1.77"
• Dimension (E): 1.34"
• Dimension (J): 1.06"
• Dimension (I): 0.63"
• Dimension (G): 0.51"
• Dimension (L): 1.06"
• Dimension (S): 0.39"
• Dimension (B): 2.68"
• Dimension (F): 2.20"
• Dimension (Z): 1.41"
• Dimension (Bi): 1.3425"
• Dimension (N): 0.5630"
• Dimension (M): 0.7795"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: UC 205-16
• Housing Number: FB 205
• Weight (LBS): 1.5
