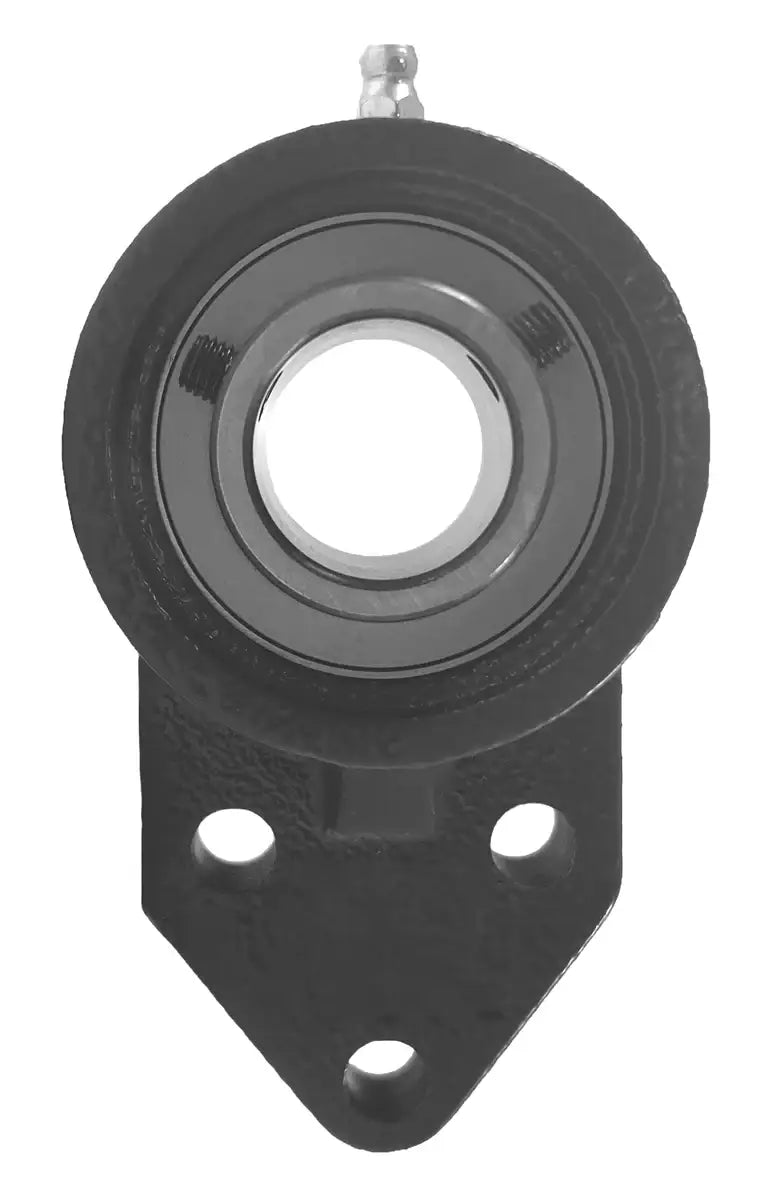

UCFB201-8 Bearing | 1/2" 3-Bolt Flange Bearing

UCFB201-8 bearing is a 1/2" bore three-bolt normal-duty flange bracket bearing that utilizes set screws to secure to a 1/2" shaft. UCFB201-8 flange bearings are designed with a metric-based housing, and for circumstances where the bearing is needed in a limited space application and is to be mounted on one side, the three mounting holes provide excellent stability and control for the mounted bearing. Our superior UCFB201-8 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCFB201-8 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. UCFB201-8 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCFB201-8 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCFB201-8 bearings, and we will be happy to assist you!

UCFB201-8 Bearing Dimensions

• Part #: UCFB 201-8
• Shaft Diameter (d): 1/2"
• Dimension (A): 4.33"
• Dimension (H): 1.65"
• Dimension (E): 1.26"
• Dimension (J): 1.06"
• Dimension (I): 0.59"
• Dimension (G): 0.51"
• Dimension (L): 1.00"
• Dimension (S): 0.39"
• Dimension (B): 2.44"
• Dimension (F): 2.05"
• Dimension (Z): 1.31"
• Dimension (Bi): 1.2205"
• Dimension (N): 0.5000"
• Dimension (M): 0.7205"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: UC 201-8
• Housing Number: FB 204
• Weight (LBS): 1.4
