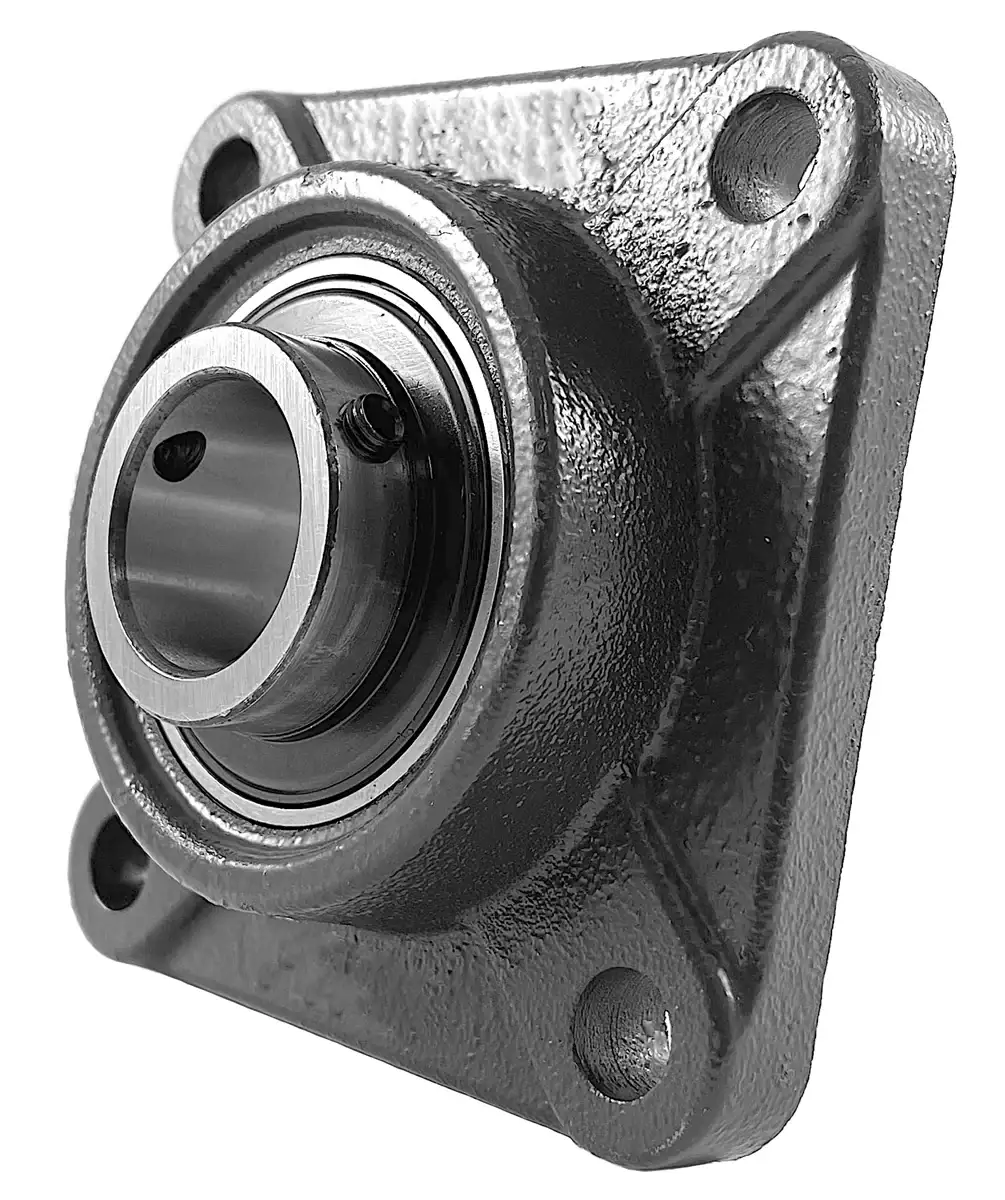

UCF214-43 Bearing | 2-11/16" 4-Bolt Flange Bearing

UCF214-43 bearing is a 2-11/16" bore four-bolt normal-duty flange bearing that utilizes set screws to secure to a 2-11/16" shaft. UCF214-43 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior UCF214-43 bearing with a 2-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our UCF214-43 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set-screws. UCF214-43 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our UCF214-43 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our UCF214-43 bearings, and we will be happy to assist you!

UCF214-43 Bearing Dimensions

• Part #: UCF 214-43
• Shaft Diameter (d): 2-11/16"
• Dimension (A): 7.63"
• Dimension (E): 6.00"
• Dimension (I): 1.22"
• Dimension (G): 0.88"
• Dimension (L): 2.13"
• Dimension (S): 0.79"
• Dimension (Z): 2.96"
• Dimension (Bi): 2.9370"
• Dimension (N): 1.1890"
• Dimension (M): 1.7480"
• Bolt Used: 3/4
• Dynamic Load Rating (LBS): 13,981
• Static Load Rating (LBS): 9,869
• Bearing Insert: UC 214-43
• Housing Number: F 214
• Weight (LBS): 16.7
