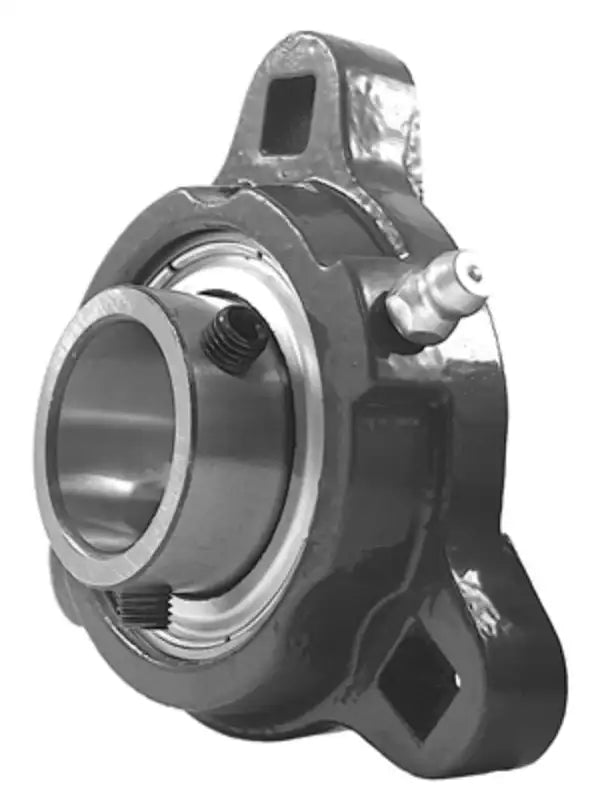

SBRFB207 Bearing | 35mm 3-Bolt Flange Bearing

SBRFB207 bearing is a 35mm bore three-bolt light-duty flange bearing that utilizes set screws to secure to a 35mm shaft. SBRFB207 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SBRFB207 bearing with a 35mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SBRFB207 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, relubricating capabilities, and strategically placed set screws. SBRFB207 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SBRFB207 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SBRFB207 bearings, and we will be happy to assist you!

SBRFB207 Bearing Dimensions

• Part #: SBRFB207
• Shaft Diameter (d): 35mm
• Dimension (A): 122.5mm
• Dimension (E): 100.0mm
• Dimension (I): 12.7mm
• Dimension (G): 13.0mm
• Dimension (B): 89.0mm
• Dimension (L): 24.0mm
• Dimension (S): 10.3mm
• Dimension (Z): 29.6mm
• Dimension (Y): 61.3mm
• Dimension (Bi): 38.9mm
• Dimension (N): 8.5mm
• Dimension (M): 16.9mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 25.69
• Static Load Rating (kN): 15.56
• Bearing Insert: SB 207
• Housing Number: RFB 207
• Weight (kg): 0.9
