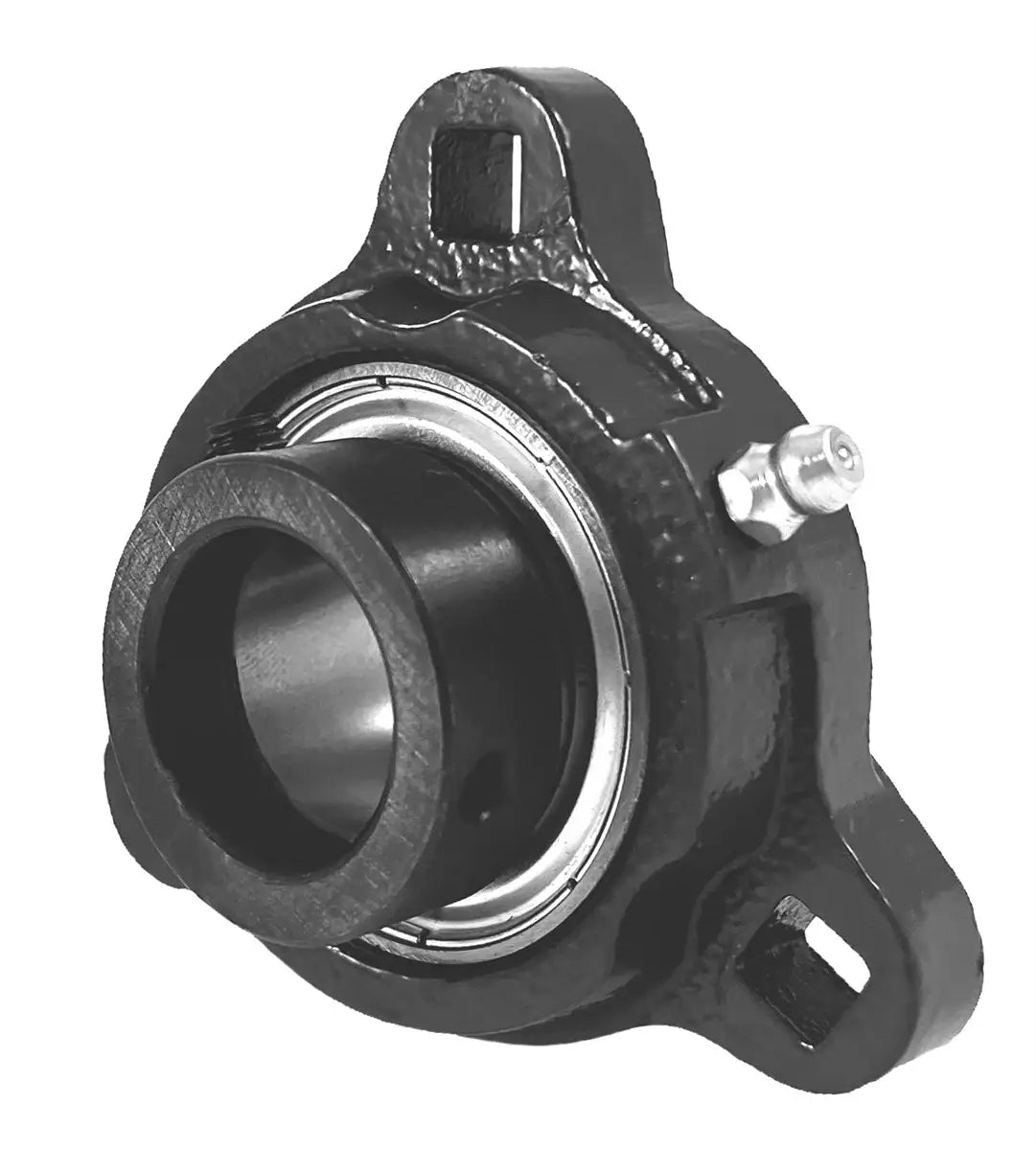

SARFB206-20 Bearing | 1-1/4" 3-Bolt Eccentric Locking Bearing

SARFB206-20 bearing is a 1-1/4" bore three-bolt light-duty flange bearing that utilizes an eccentric locking collar to secure to a 1-1/4" shaft. SARFB206-20 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SARFB206-20 bearing with a 1-1/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SARFB206-20 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SARFB206-20 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SARFB206-20 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SARFB206-20 bearings, and we will be happy to assist you!

SARFB206-20 Bearing Dimensions

• Part #: SARFB206-20
• Shaft Diameter (d): 1-1/4"
• Dimension (A): 4.45"
• Dimension (E): 3.563"
• Dimension (I): 0.47"
• Dimension (G): 0.47"
• Dimension (B): 2.99"
• Dimension (L): 0.87"
• Dimension (S): 0.41"
• Dimension (Z): 1.34"
• Dimension (Y): 2.22"
• Dimension (Bi): 1.1811"
• Dimension (N): 0.3150"
• Dimension (M): 0.8661"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569

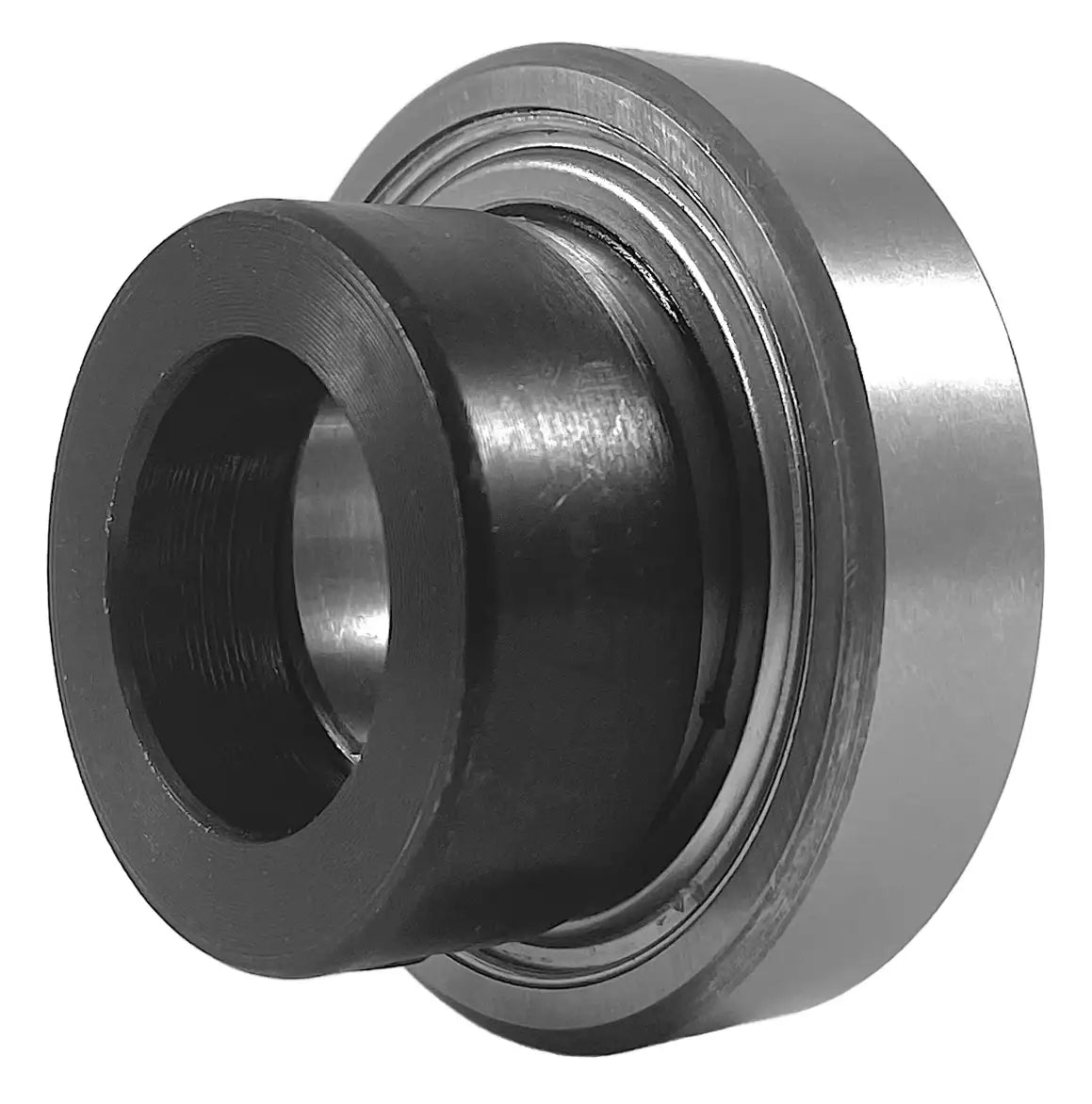

• Bearing Insert: SA 206-20
• Housing Number: RFB 206
• Weight (LBS): 1.3
