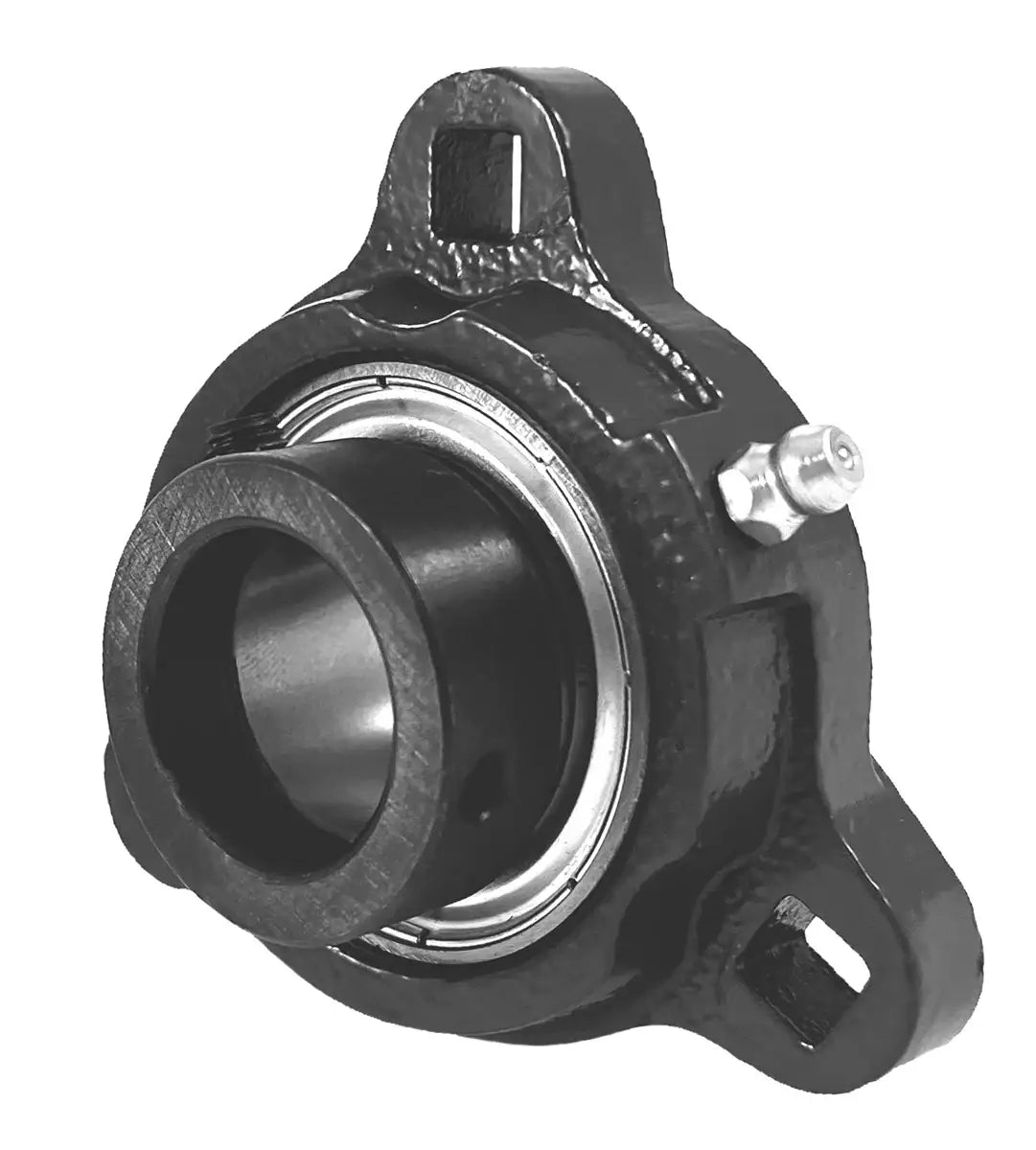

SARFB205 Bearing | 25mm 3-Bolt Eccentric Locking Bearing

SARFB205 bearing is a 25mm bore three-bolt light-duty flange bearing that utilizes an eccentric locking collar to secure to a 25mm shaft. SARFB205 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SARFB205 bearing with a 25mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SARFB205 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SARFB205 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SARFB205 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SARFB205 bearings, and we will be happy to assist you!

SARFB205 Bearing Dimensions

• Part #: SARFB205
• Shaft Diameter (d): 25mm
• Dimension (A): 95.2mm
• Dimension (E): 76.2mm
• Dimension (I): 10.3mm
• Dimension (G): 11.0mm
• Dimension (B): 73.0mm
• Dimension (L): 20.0mm
• Dimension (S): 8.7mm
• Dimension (Z): 29.8mm
• Dimension (Y): 47.6mm
• Dimension (Bi): 27.0mm
• Dimension (N): 7.5mm
• Dimension (M): 19.5mm
• Bolt Used: M6
• Dynamic Load Rating (kN): 14.04
• Static Load Rating (kN): 8.05
• Bearing Insert: SA 205
• Housing Number: RFB 25
• Weight (kg): 0.5
