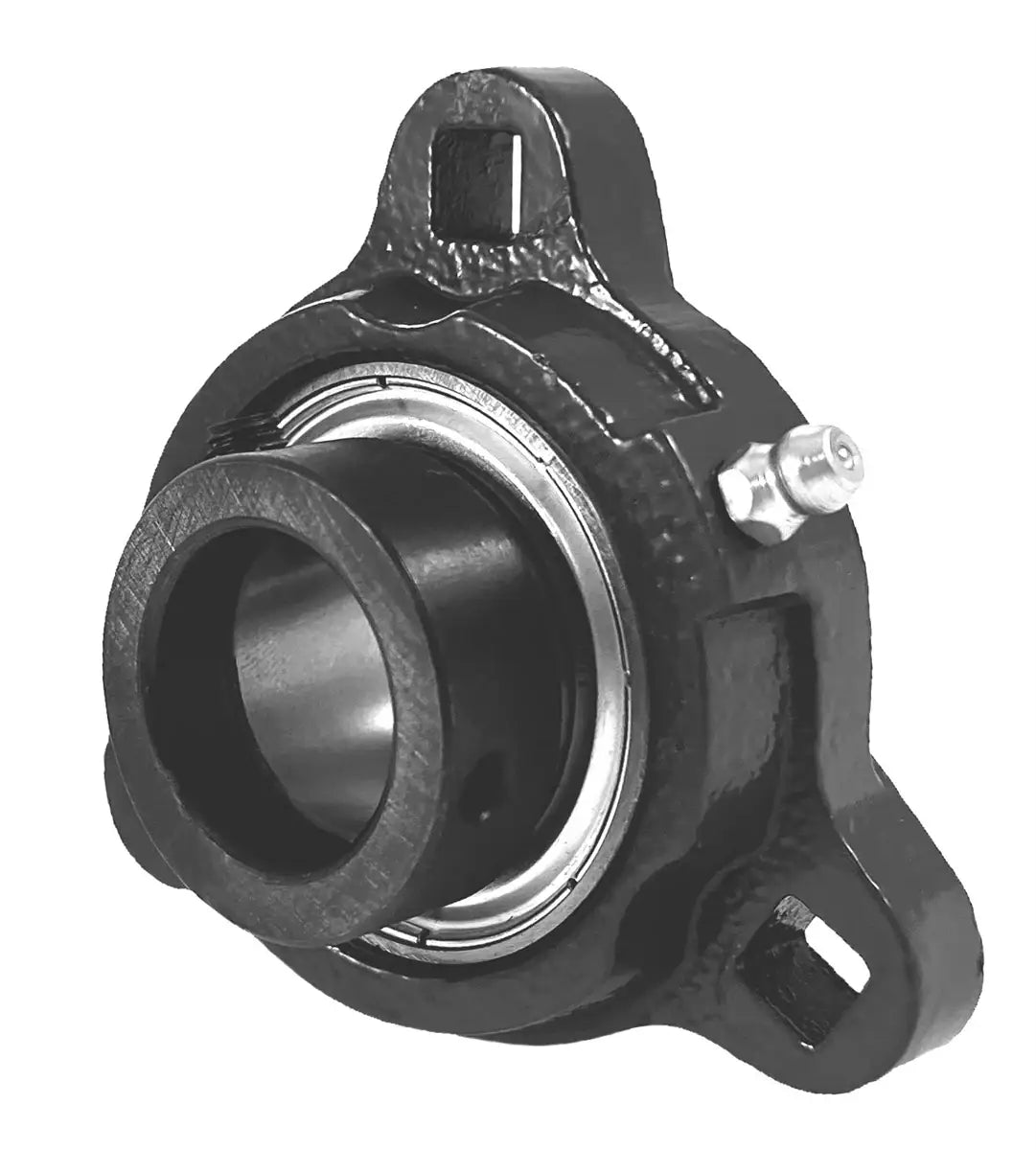

SARFB205-14 Bearing | 7/8" 3-Bolt Eccentric Locking Bearing

SARFB205-14 bearing is a 7/8" bore three-bolt light-duty flange bearing that utilizes an eccentric locking collar to secure to a 7/8" shaft. SARFB205-14 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SARFB205-14 bearing with a 7/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SARFB205-14 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SARFB205-14 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SARFB205-14 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SARFB205-14 bearings, and we will be happy to assist you!

SARFB205-14 Bearing Dimensions

• Part #: SARFB205-14
• Shaft Diameter (d): 7/8"
• Dimension (A): 3.75"
• Dimension (E): 3.000"
• Dimension (I): 0.41"
• Dimension (G): 0.43"
• Dimension (B): 2.87"
• Dimension (L): 0.79"
• Dimension (S): 0.34"
• Dimension (Z): 1.17"
• Dimension (Y): 1.87"
• Dimension (Bi): 1.0630"
• Dimension (N): 0.2953"
• Dimension (M): 0.7677"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810

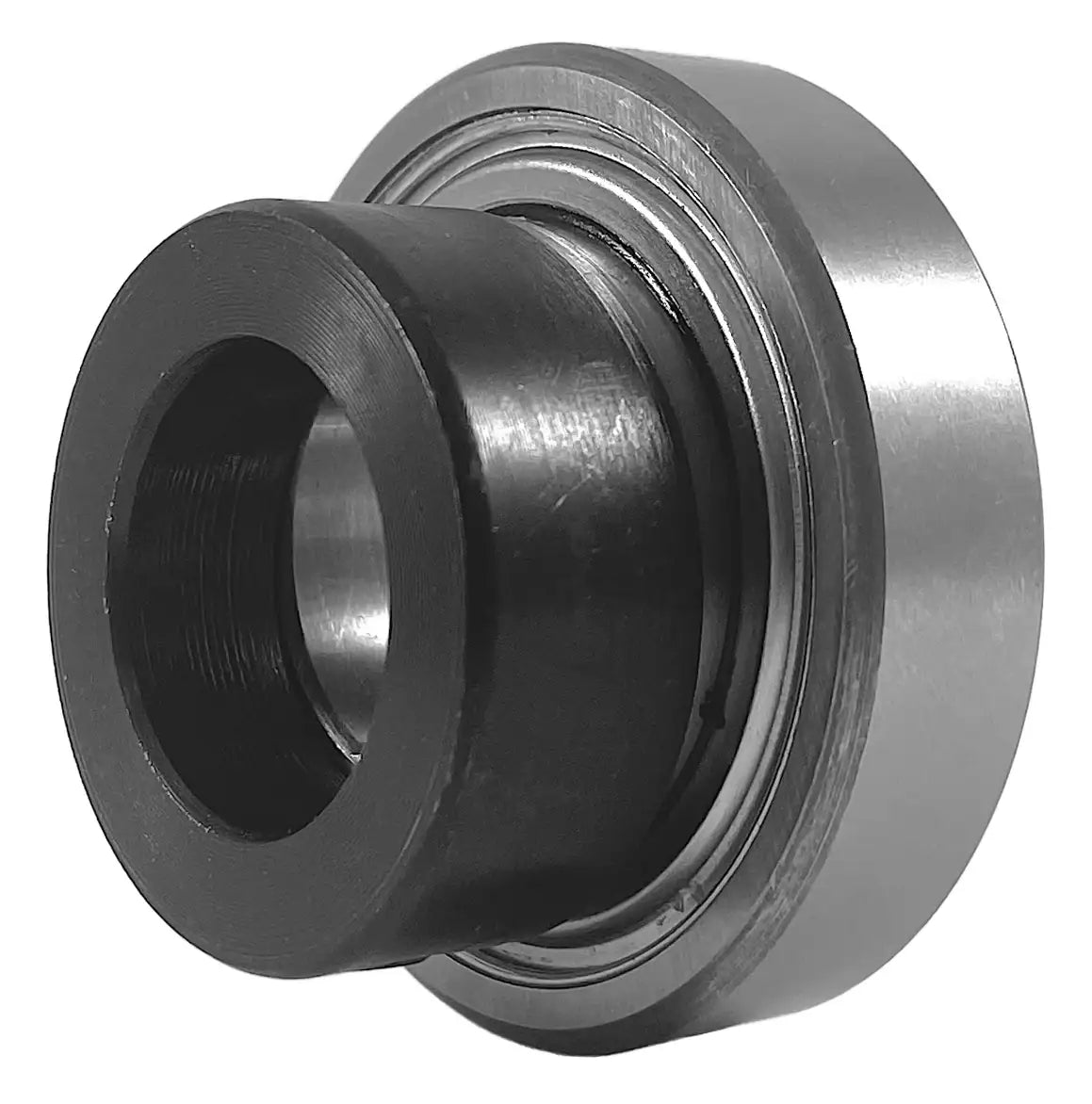

• Bearing Insert: SA 205-14
• Housing Number: RFB 205
• Weight (LBS): 1.1
