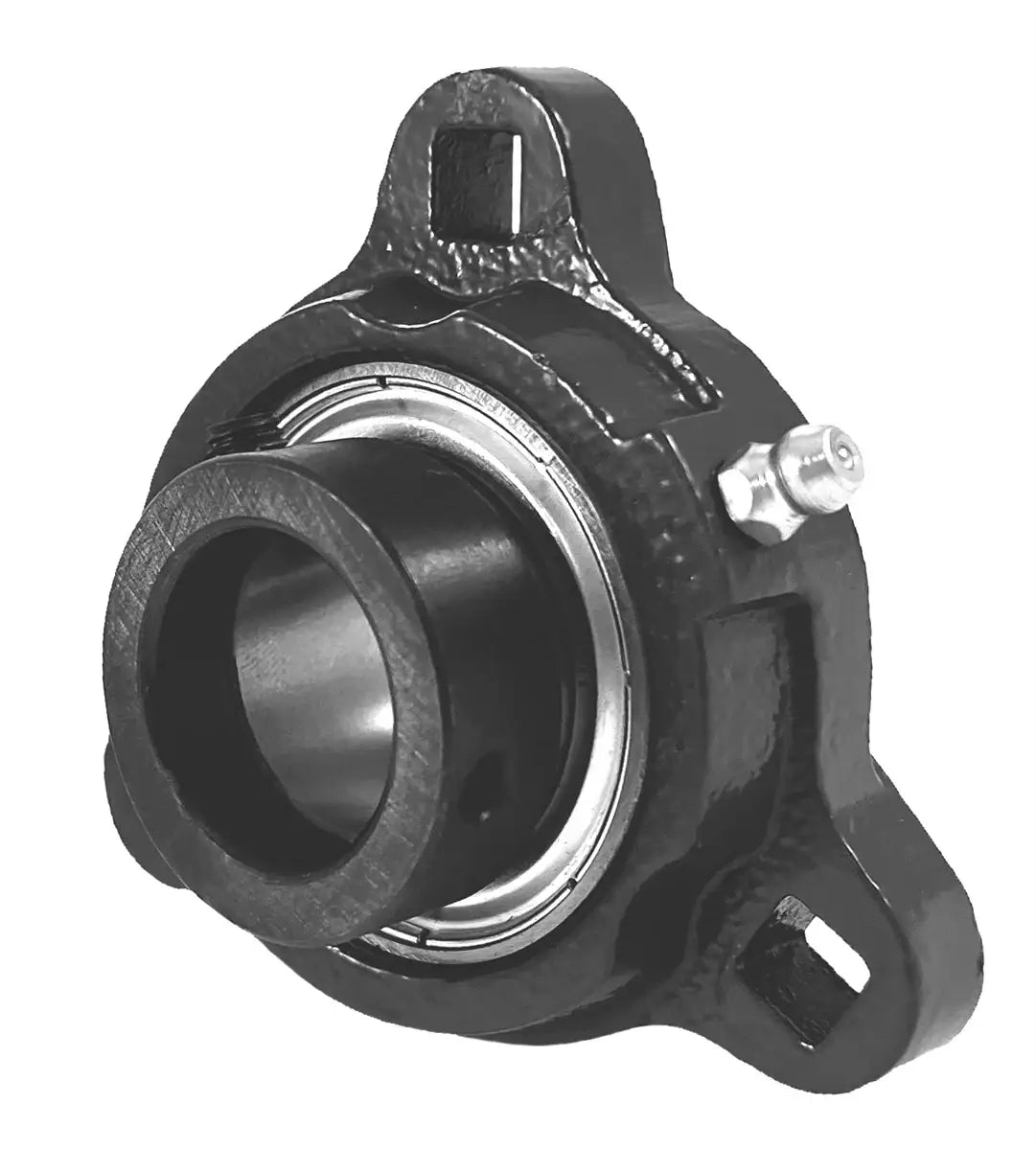

SARFB204 Bearing | 20mm 3-Bolt Eccentric Locking Bearing

$49.99
SKU: 2278-SARFB-204-BEARING
In stockOnly 0 left in stockBackordered Out of stock Item is unavailable

Quantity
<p>Don’t see what you need? In a rush?</p>

Don’t see what you need? In a rush?

[{"variant_id":"51714333966703" , "metafield_value":""}]
SARFB204 Bearing | 20mm 3-Bolt Eccentric Locking Bearing Description/Features
SARFB204 Bearing | 20mm 3-Bolt Eccentric Locking Bearing Specifications
SARFB204 bearing is a 20mm bore three-bolt light-duty flange bearing that utilizes an eccentric locking collar to secure to a 20mm shaft. SARFB204 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SARFB204 bearing with a 20mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SARFB204 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SARFB204 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SARFB204 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SARFB204 bearings, and we will be happy to assist you!

SARFB204 Bearing Dimensions

SARFB204 Bearing | 20mm 3-Bolt Eccentric Locking Bearing
  • Part #: SARFB204
  • Shaft Diameter (d): 20mm
  • Dimension (A): 90.5mm
  • Dimension (E): 71.4mm
  • Dimension (I): 11.1mm
  • Dimension (G): 11.0mm
  • Dimension (B): 67.0mm
  • Dimension (L): 20.0mm
  • Dimension (S): 8.7mm
  • Dimension (Z): 29.1mm
  • Dimension (Y): 45.25mm
  • Dimension (Bi): 25.0mm
  • Dimension (N): 7.0mm
  • Dimension (M): 18.0mm
  • Bolt Used: M6
  • Dynamic Load Rating (kN): 12.82
  • Static Load Rating (kN): 6.65

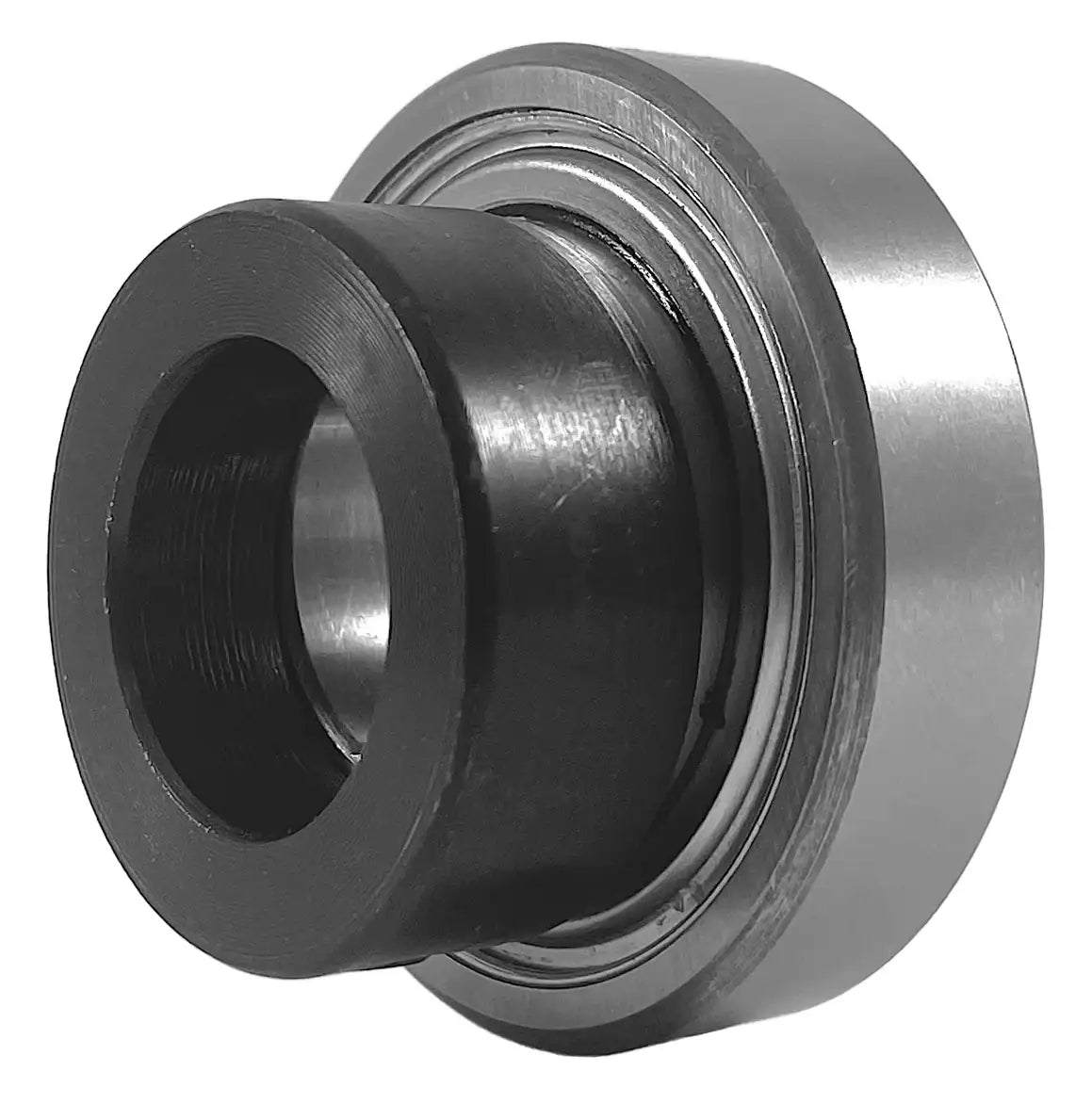

  • Bearing Insert: SA 204
  • Housing Number: RFB 204
  • Weight (kg): 0.4

  • Part #: SARFB204
  • Shaft Diameter (d): 20mm
  • Dimension (A): 90.5mm
  • Dimension (E): 71.4mm
  • Dimension (I): 11.1mm
  • Dimension (G): 11.0mm
  • Dimension (B): 67.0mm
  • Dimension (L): 20.0mm
  • Dimension (S): 8.7mm
  • Dimension (Z): 29.1mm
  • Dimension (Y): 45.25mm
  • Dimension (Bi): 25.0mm
  • Dimension (N): 7.0mm
  • Dimension (M): 18.0mm
  • Bolt Used: M6
  • Dynamic Load Rating (kN): 12.82
  • Static Load Rating (kN): 6.65
  • Bearing Insert: SA 204
  • Housing Number: RFB 204
  • Weight (kg): 0.4
