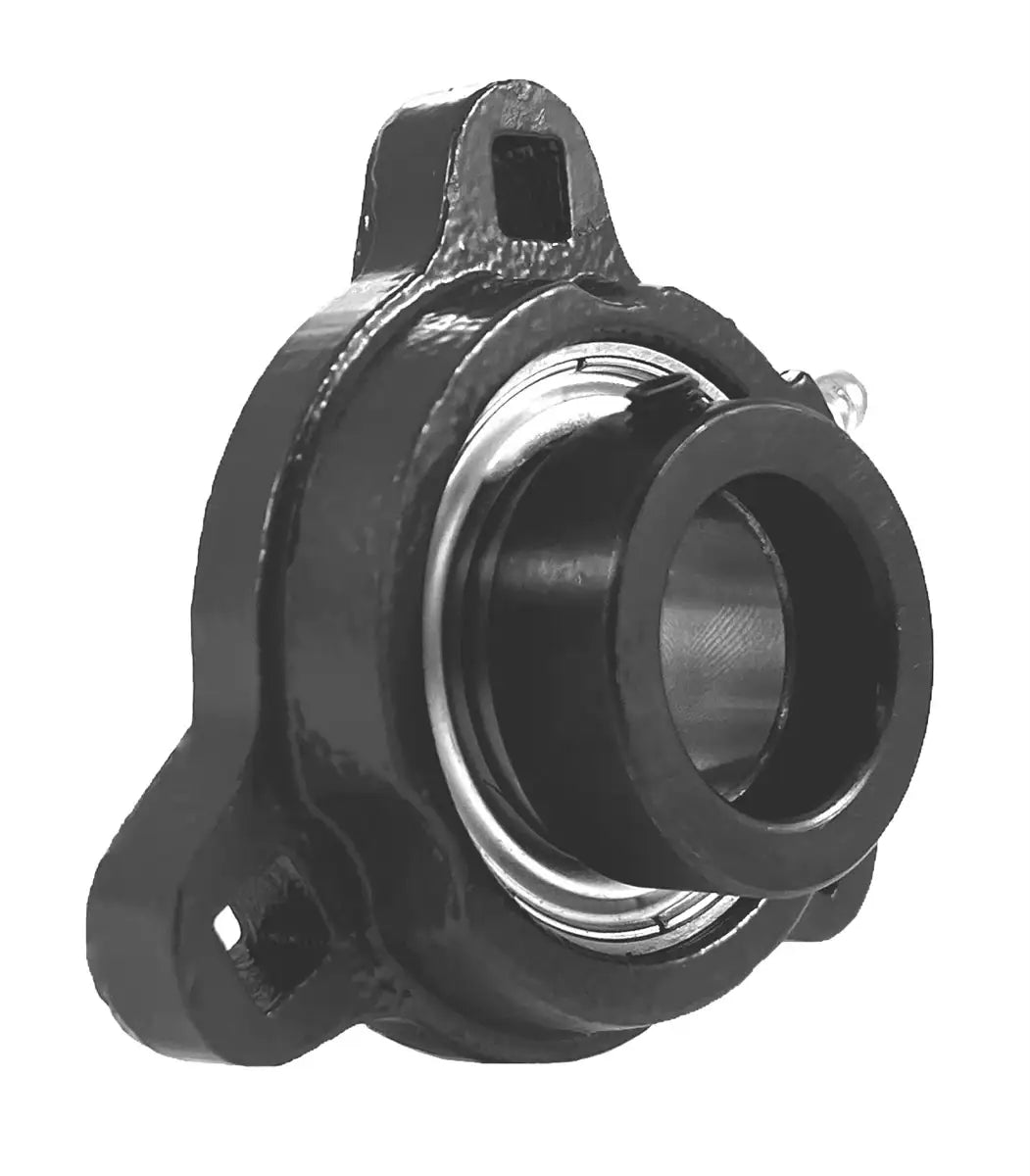

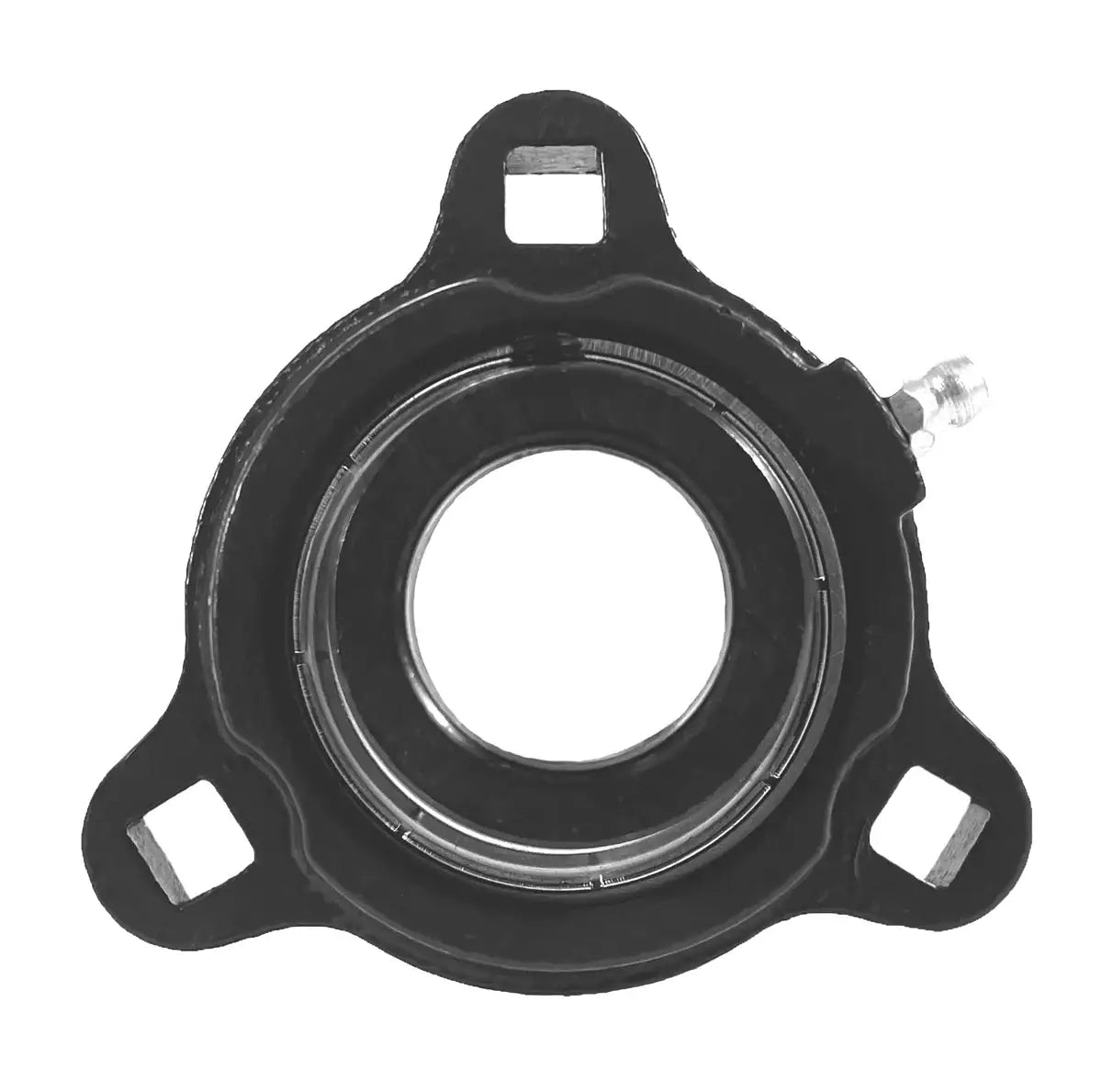

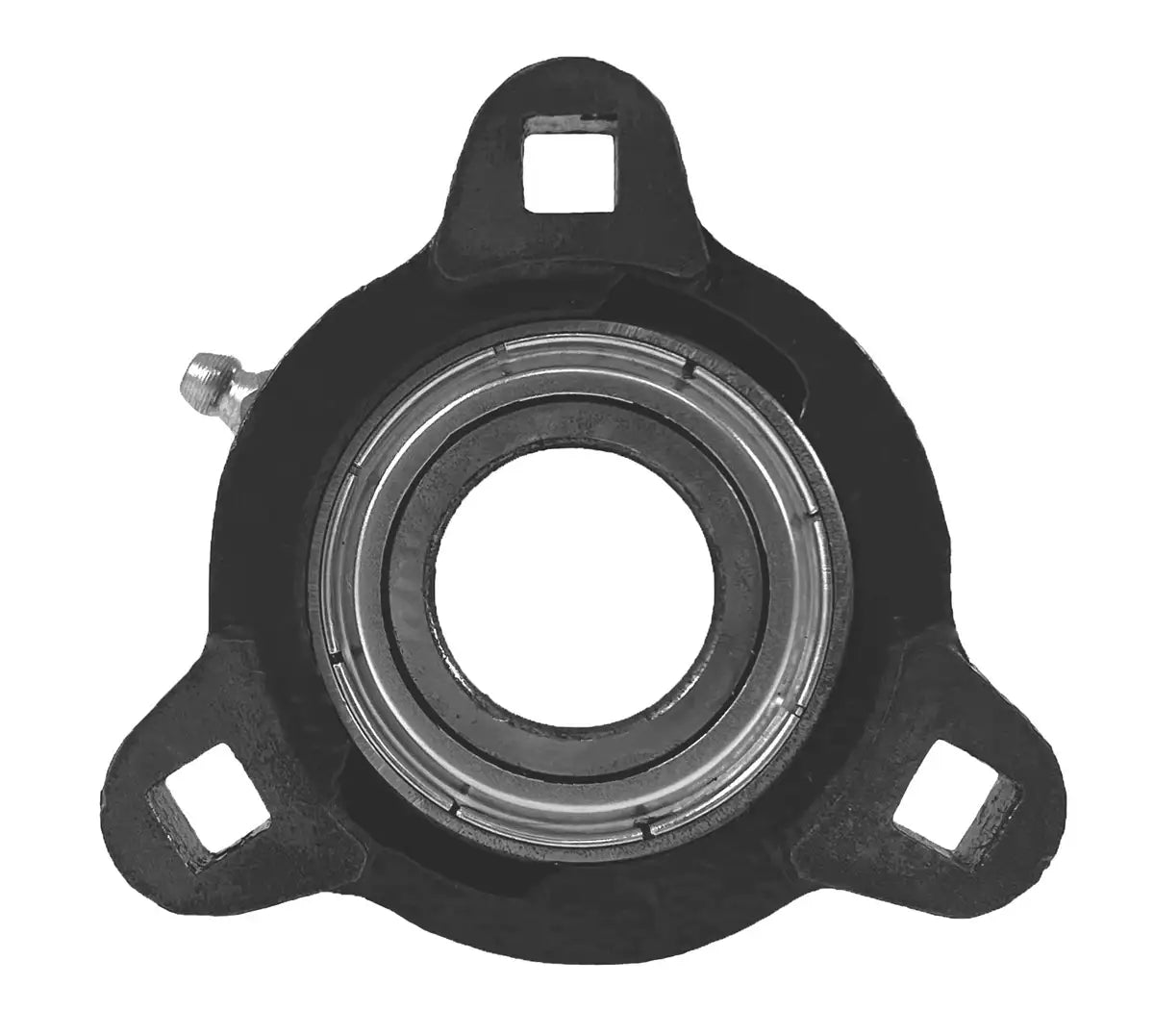

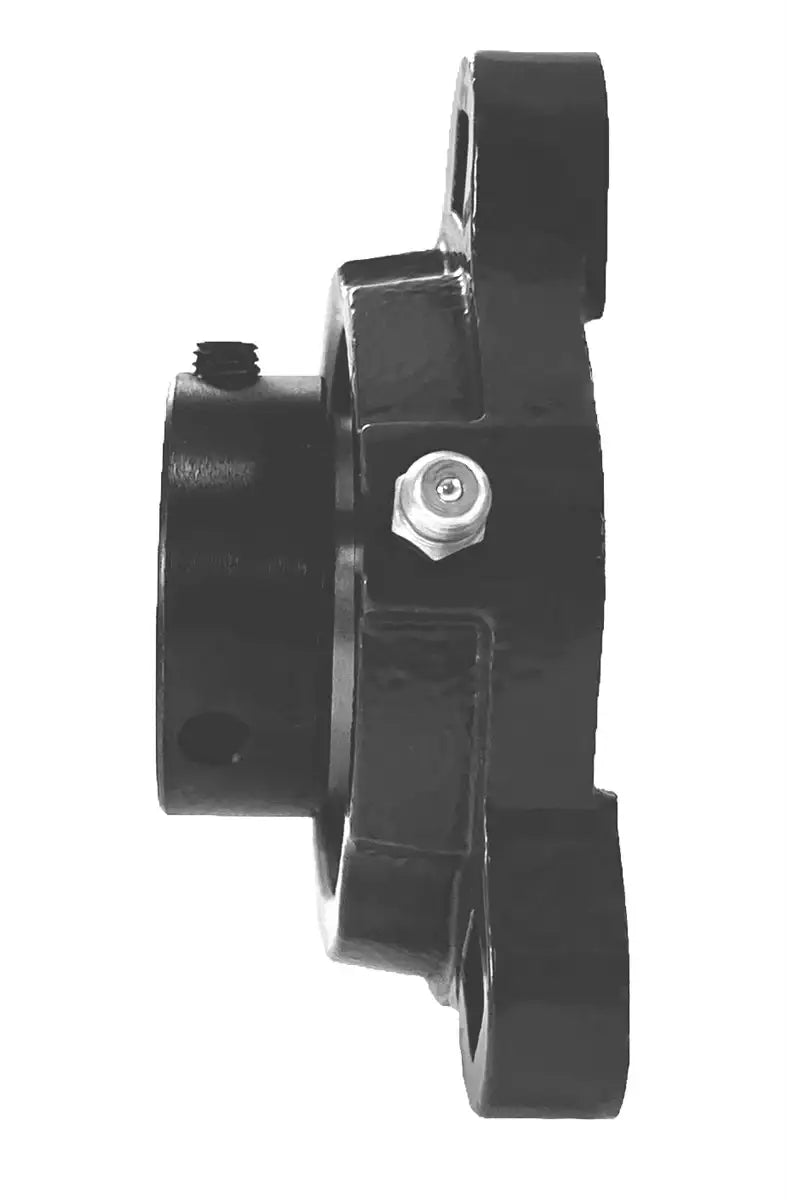

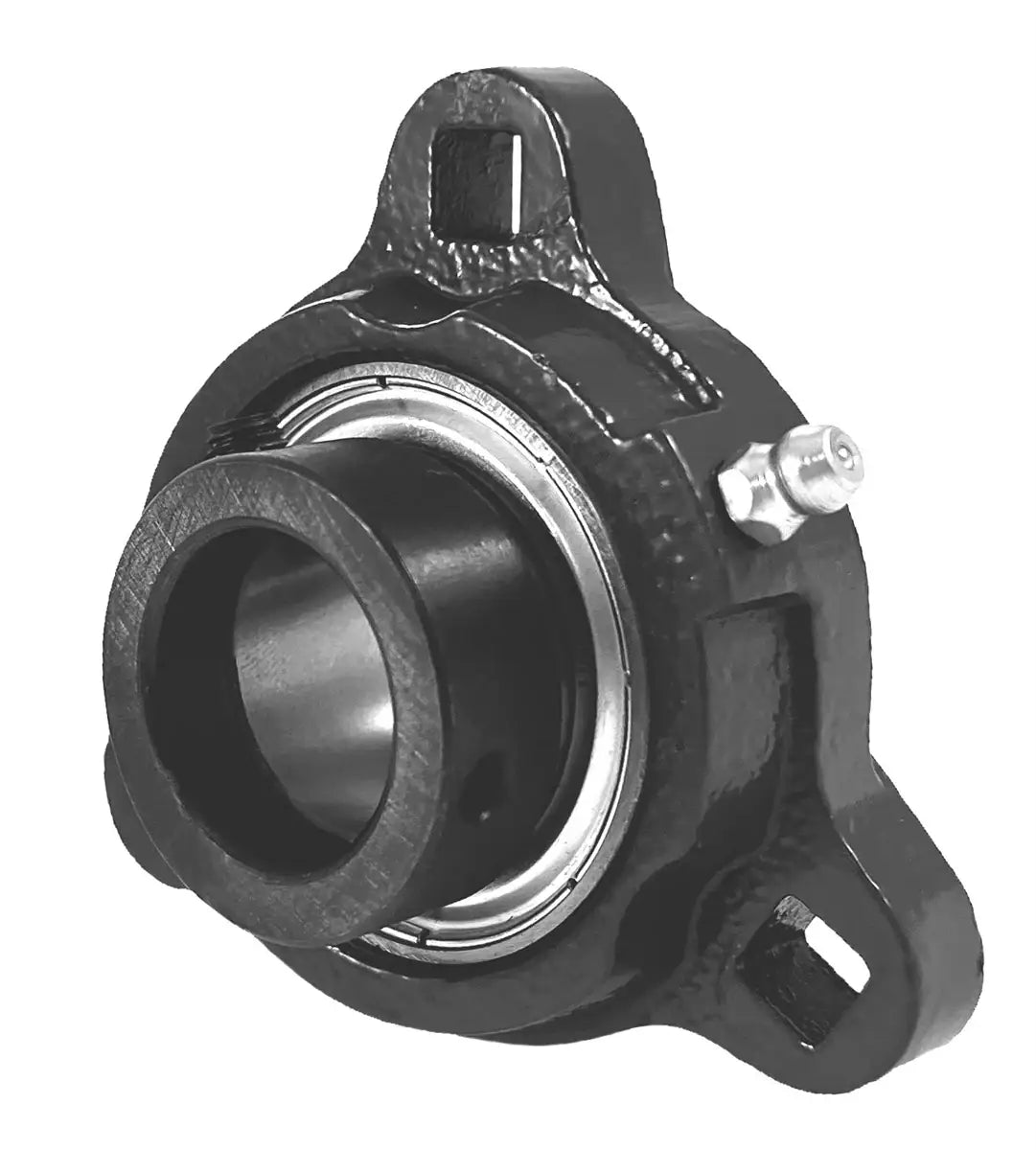

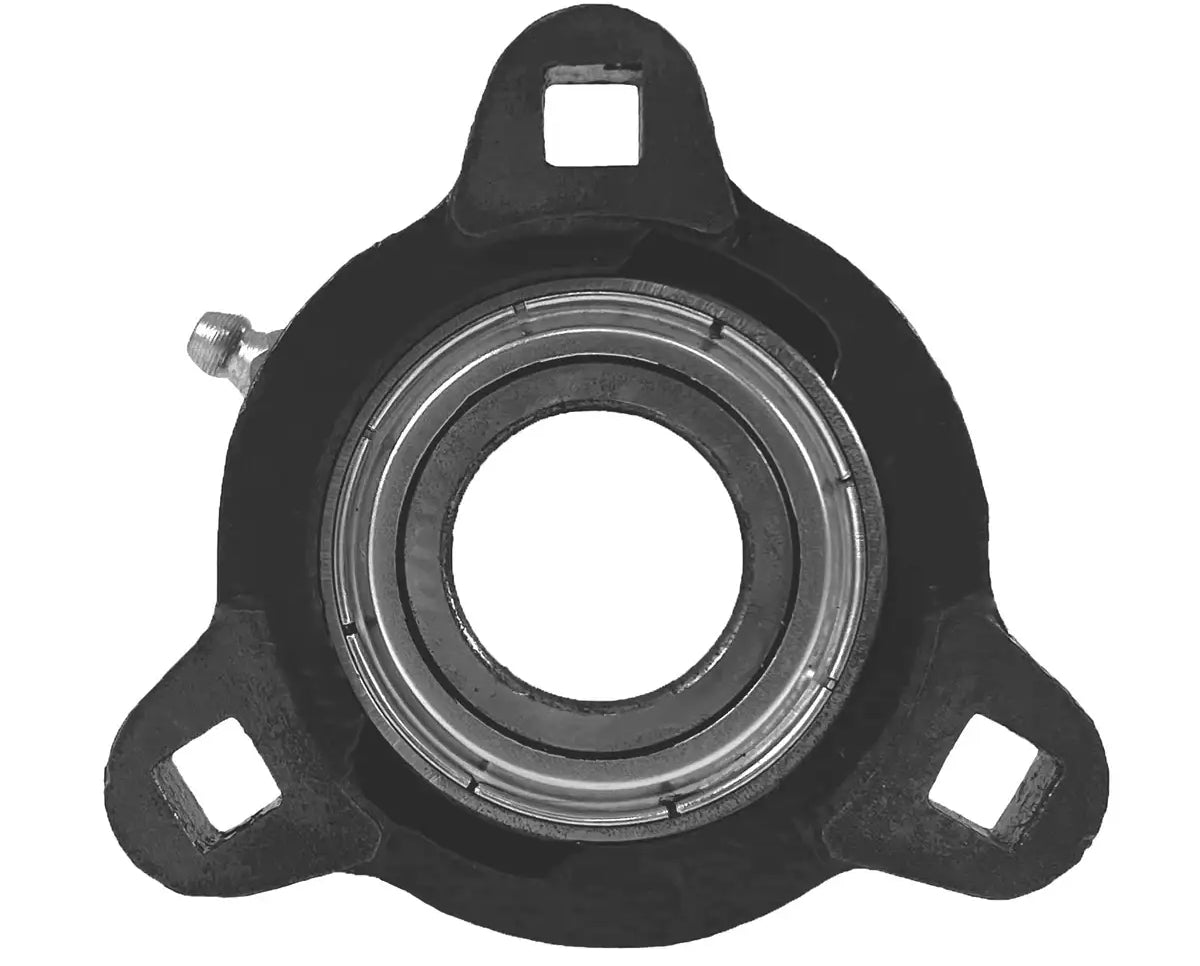

SARFB204-12 Bearing | 3/4" 3-Bolt Eccentric Locking Bearing

SARFB204-12 bearing is a 3/4" bore three-bolt light-duty flange bearing that utilizes an eccentric locking collar to secure to a 3/4" shaft. SARFB204-12 flange bearings are designed for circumstances where the bearing is mounted to a surface that is perpendicular to the shaft axis. Our superior SARFB204-12 bearing with a 3/4" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our SARFB204-12 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. SARFB204-12 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our SARFB204-12 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our SARFB204-12 bearings, and we will be happy to assist you!

SARFB204-12 Bearing Dimensions

• Part #: SARFB204-2
• Shaft Diameter (d): 3/4"
• Dimension (A): 3.56"
• Dimension (E): 2.811"
• Dimension (I): 0.44"
• Dimension (G): 0.44"
• Dimension (B): 2.64"
• Dimension (L): 0.79"
• Dimension (S): 0.34"
• Dimension (Z): 1.15"
• Dimension (Y): 1.78"
• Dimension (Bi): 0.9843"
• Dimension (N): 0.2756"
• Dimension (M): 0.7087"
• Bolt Used: 5/16
• Dynamic Load Rating (LBS): 2,883
• Static Load Rating (LBS): 1,496
• Bearing Insert: SA 204-12
• Housing Number: RFB 204
• Weight (LBS): 0.9
