HCWFJT202 Bearing | 15mm 2-Bolt Eccentric Locking Bearing

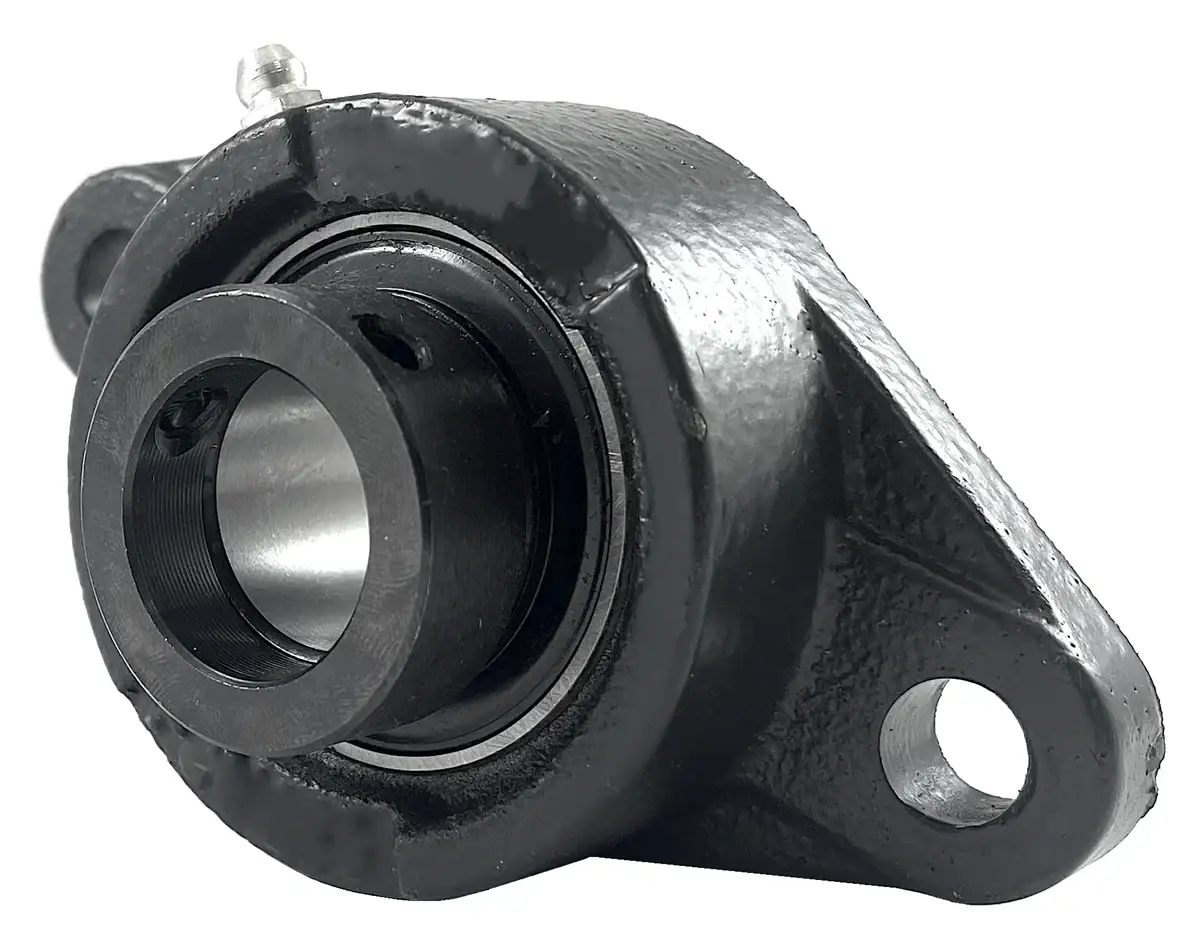

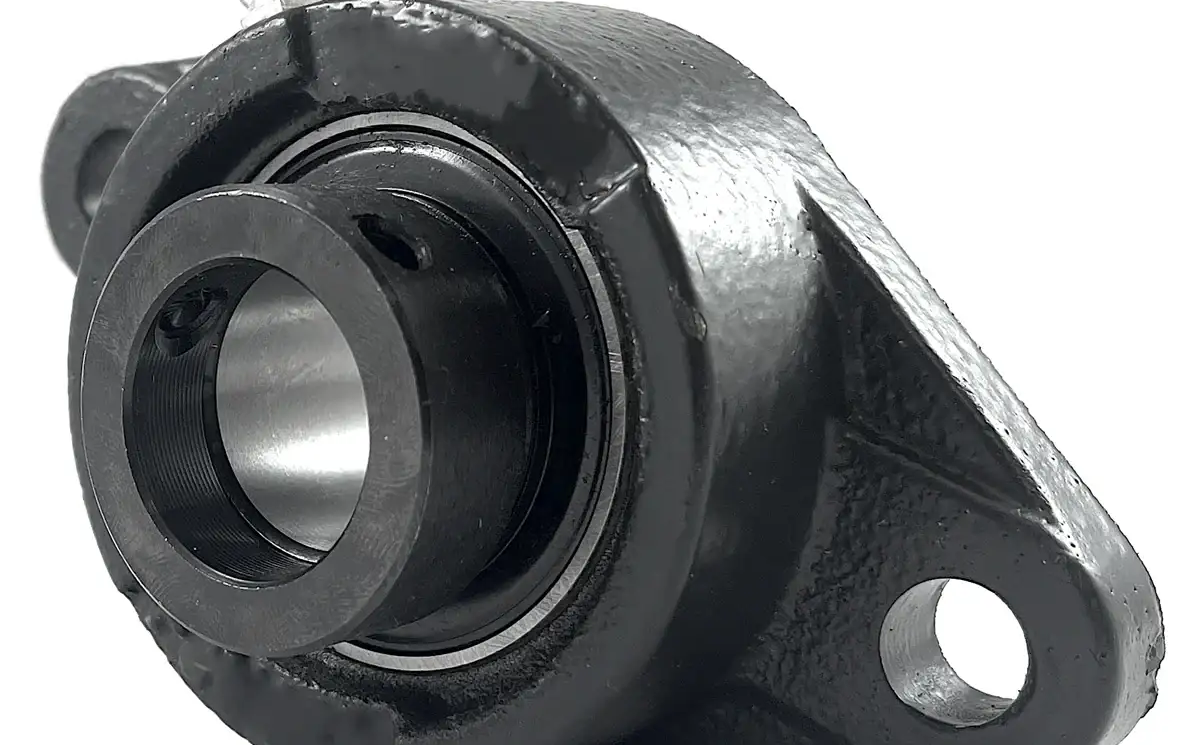

HCWFJT202 bearing is a 15mm bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 15mm shaft. HCWFJT202 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCWFJT202 bearing with a 15mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCWFJT202 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCWFJT202 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCWFJT202 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCWFJT202 bearings, and we will be happy to assist you!

HCWFJT202 Bearing Dimensions

• Part #: HCWFJT 202
• Shaft Diameter (d): 15mm
• Dimension (A): 99.0mm
• Dimension (E): 76.2mm
• Dimension (I): 15.0mm
• Dimension (G): 11.0mm
• Dimension (L): 25.0mm
• Dimension (S): 10.0mm
• Dimension (B): 38.4mm
• Dimension (Z): 38.4mm
• Dimension (Bi): 26.0mm
• Dimension (N): 13.9mm
• Dimension (M): 13.9mm
• Bolt Used: M8
• Dynamic Load Rating (kN): 9.55
• Static Load Rating (kN): 4.78
• Bearing Insert: HCW 202
• Housing Number: WFT 203
• Weight (kg): 0.5
