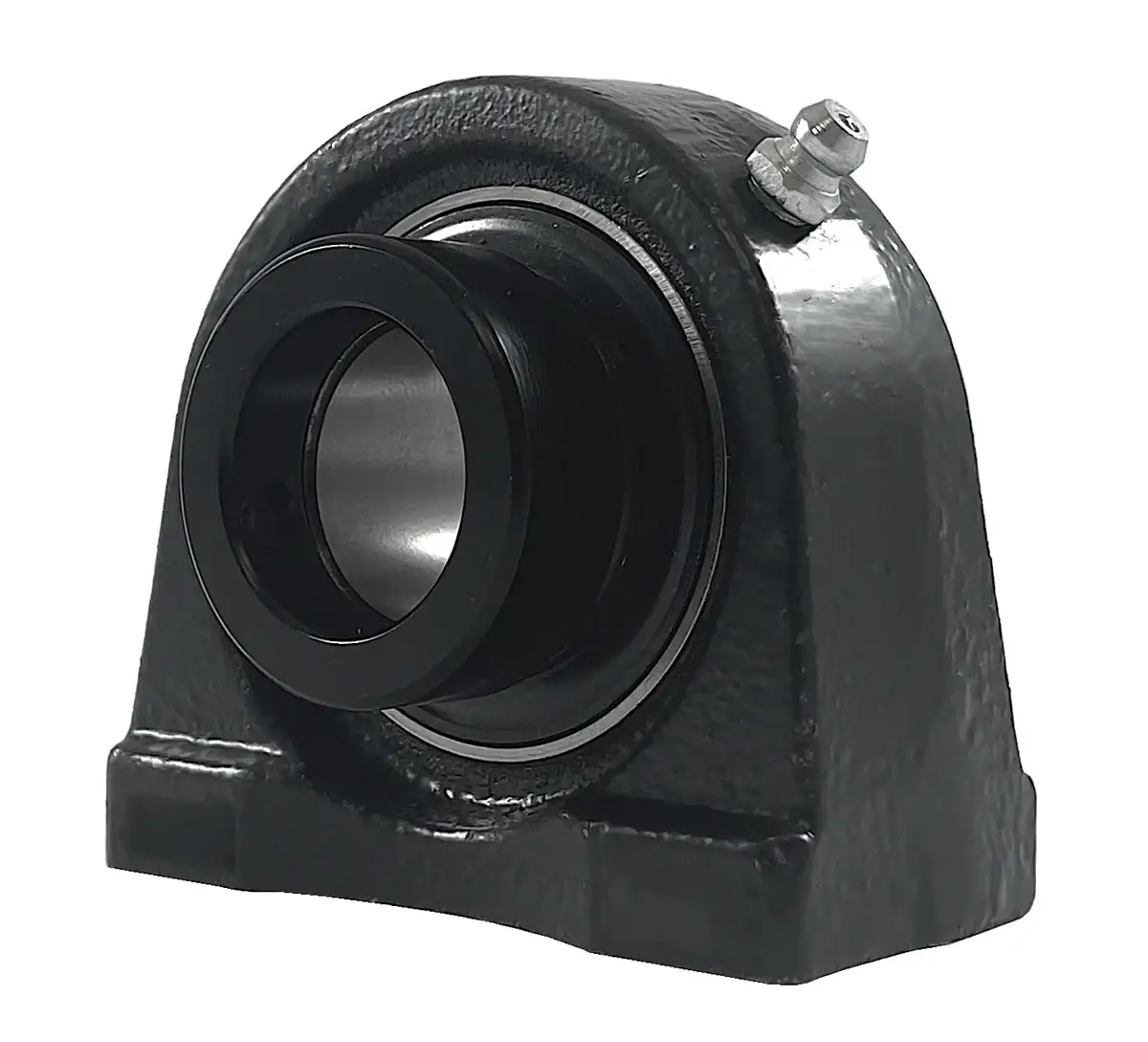

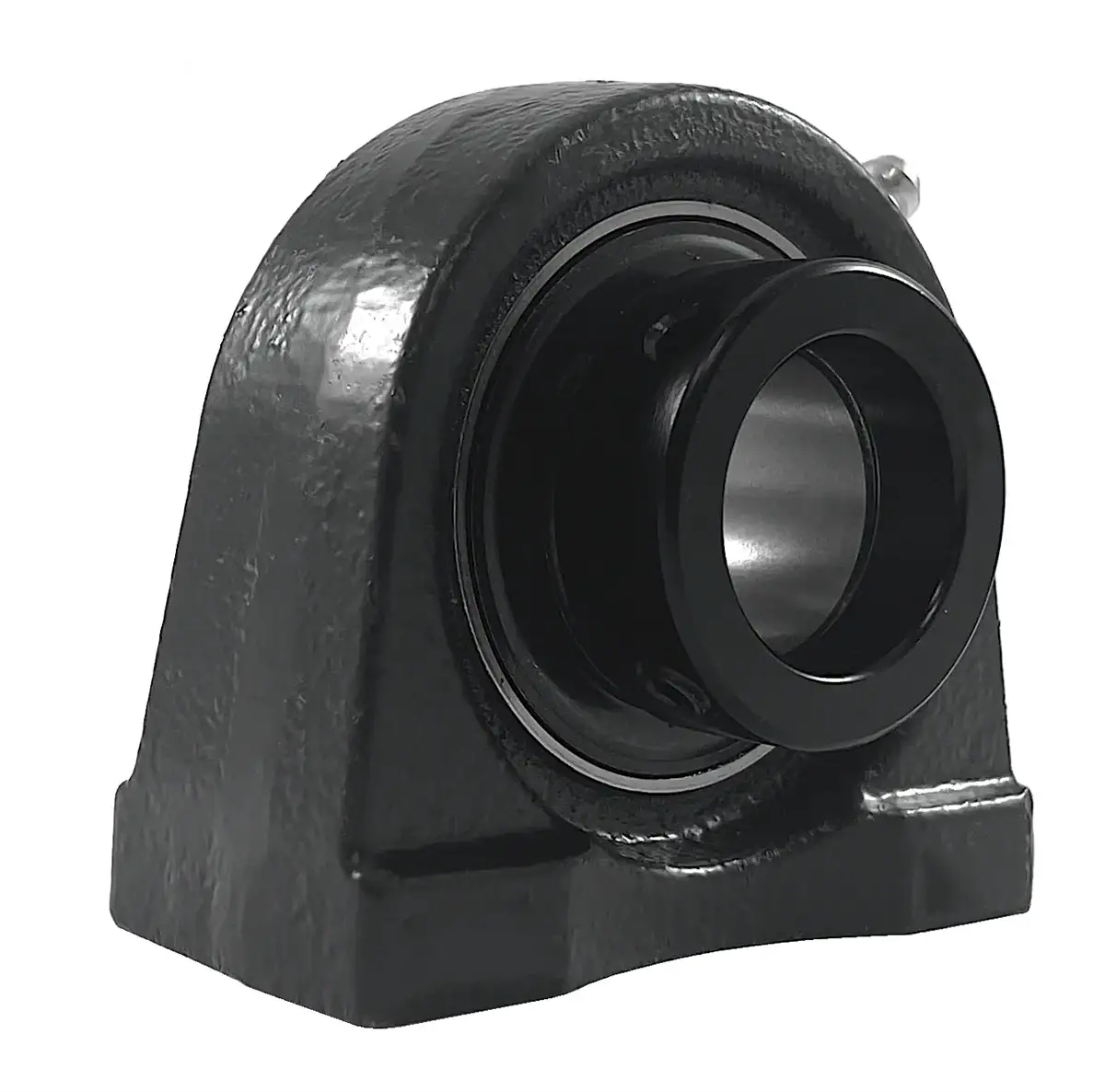

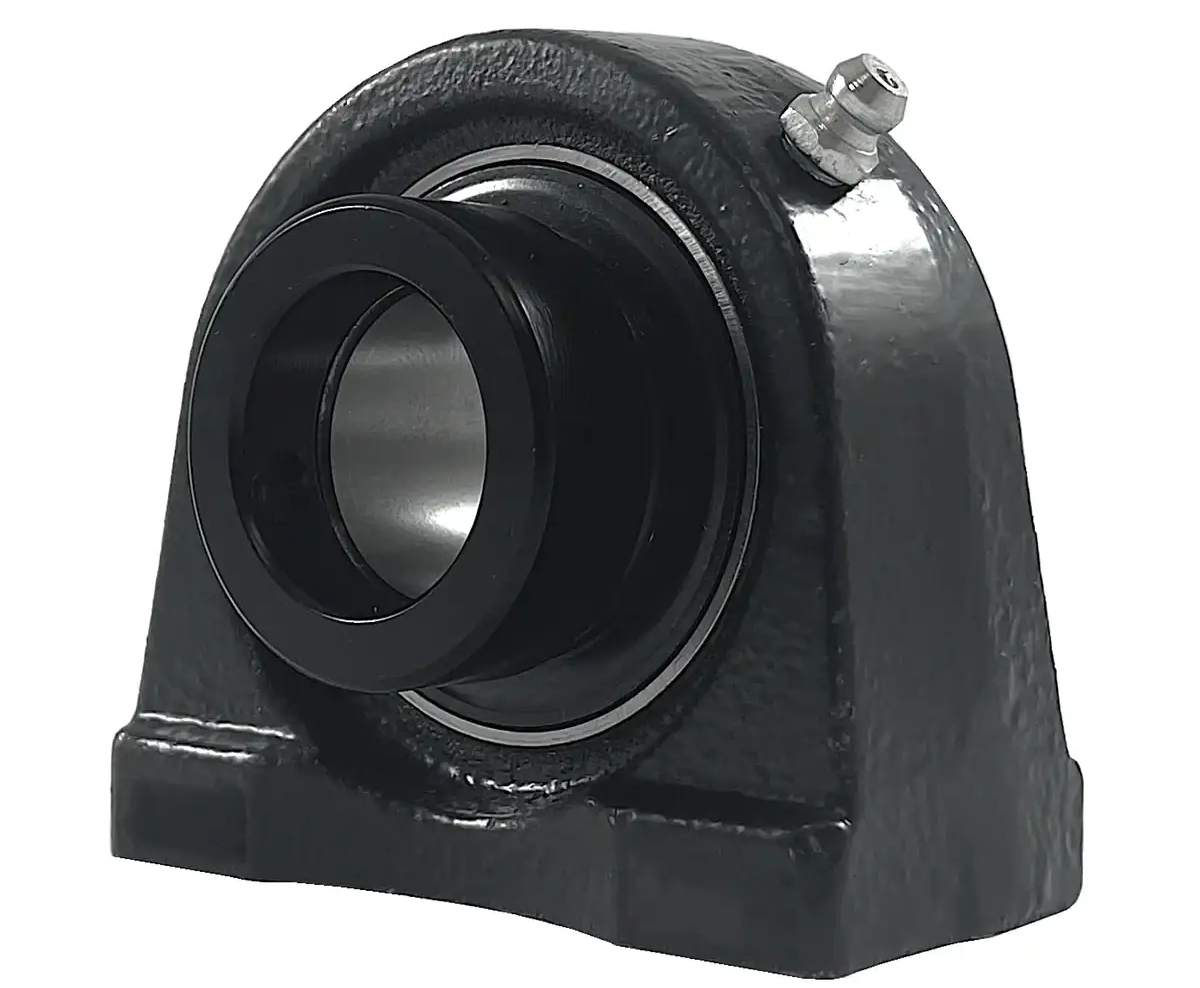

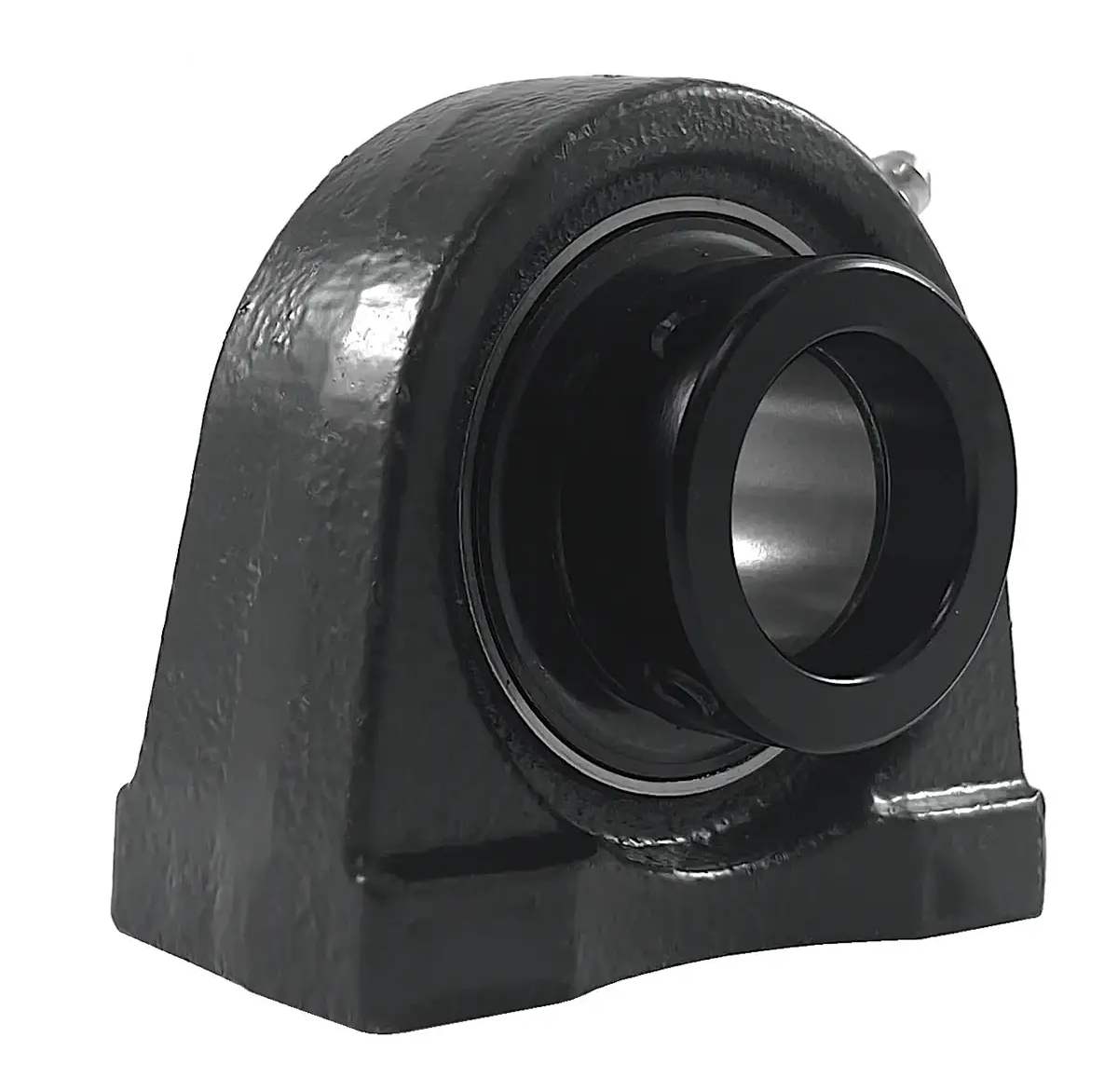

HCTB206 Bearing | 30mm 2-Bolt Tapped Base Bearing

HCTB206 bearing is a 30mm bore tapped-base normal-duty mounted bearing unit that utilizes an eccentric locking collar for securing onto a 30mm shaft. HCTB206 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior HCTB206 bearing with a 30mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCTB206 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base HCTB206 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCTB206 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCTB206 bearings, and we will be happy to assist you!

HCTB206 Bearing Dimensions

• Part #: HCTB 206
• Shaft Diameter (d): 30mm
• Dimension (H): 42.9mm
• Dimension (A): 102.0mm
• Dimension (E): 76.2mm
• Dimension (B): 38.0mm
• Dimension (R): 16.0mm
• Dimension (G): 12.0mm
• Dimension (W): 86.0mm
• Dimension (Bi): 48.4mm
• Dimension (N): 18.3mm
• Dimension (M): 18.2mm
• Bolt Used: 7/16-14
• Dynamic Load Rating (kN): 19.47
• Static Load Rating (kN): 11.43
• Bearing Insert: HC 206
• Housing Number: TB 206
• Weight (kg): 1.3
