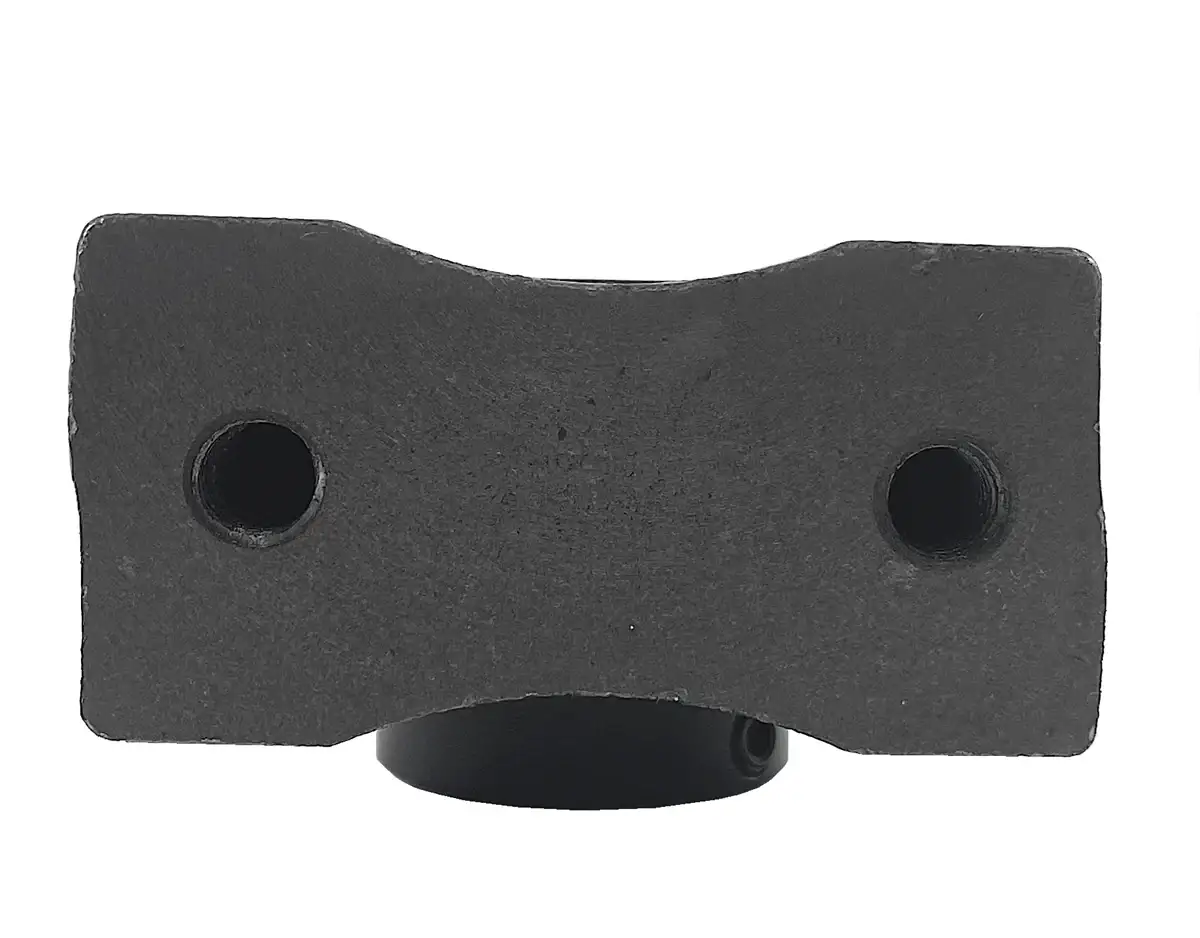

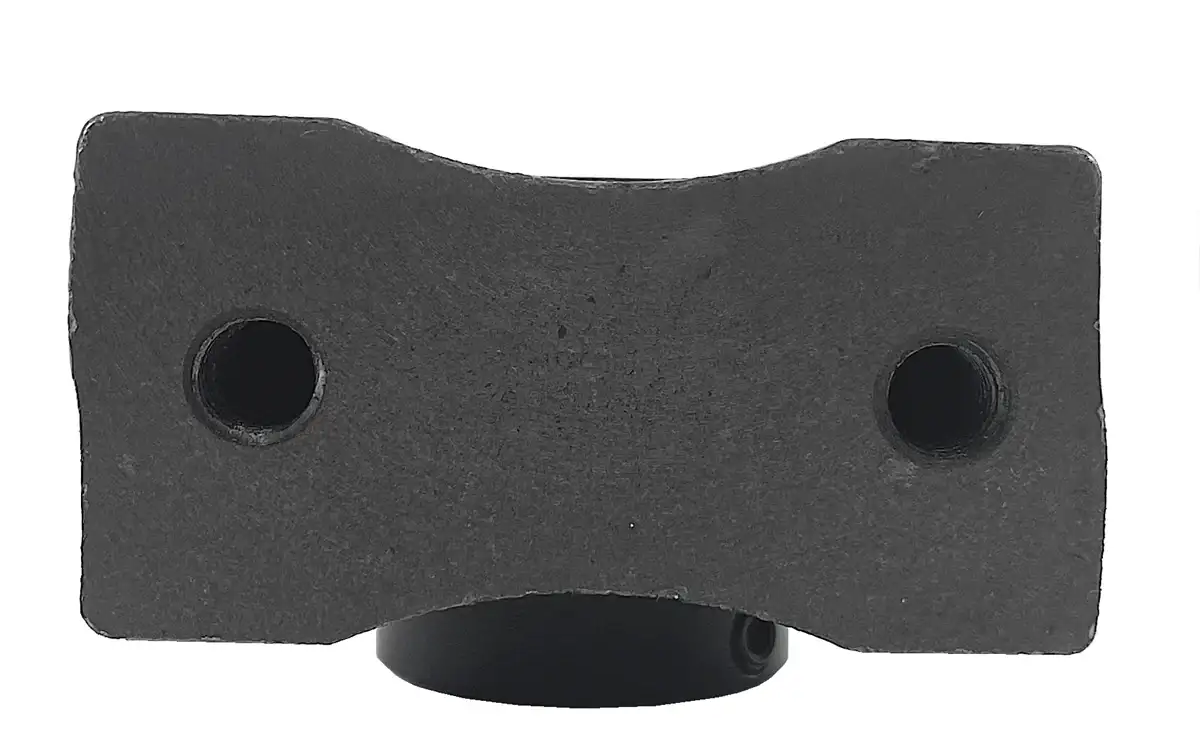

HCTB206-18 Bearing | 1-1/8" 2-Bolt Tapped Base Bearing

HCTB206-18 bearing is a 1-1/8" bore tapped-base normal-duty mounted bearing unit that utilizes an eccentric locking collar for securing onto a 1-1/8" shaft. HCTB206-18 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior HCTB206-18 bearing with a 1-1/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCTB206-18 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base HCTB206-18 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCTB206-18 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCTB206-18 bearings, and we will be happy to assist you!

HCTB206-18 Bearing Dimensions

• Part #: HCTB 206-18
• Shaft Diameter (d): 1-1/8"
• Dimension (H): 1.688"
• Dimension (A): 4.00"
• Dimension (E): 3.00"
• Dimension (B): 1.50"
• Dimension (R): 0.63"
• Dimension (G): 0.47"
• Dimension (W): 3.38"
• Dimension (Bi): 1.9055"
• Dimension (N): 0.7205"
• Dimension (M): 0.7165"
• Bolt Used: 7/16-14
• Dynamic Load Rating (LBS): 4,377
• Static Load Rating (LBS): 2,569
• Bearing Insert: HC 206-18
• Housing Number: TB 206
• Weight (LBS): 2.9
