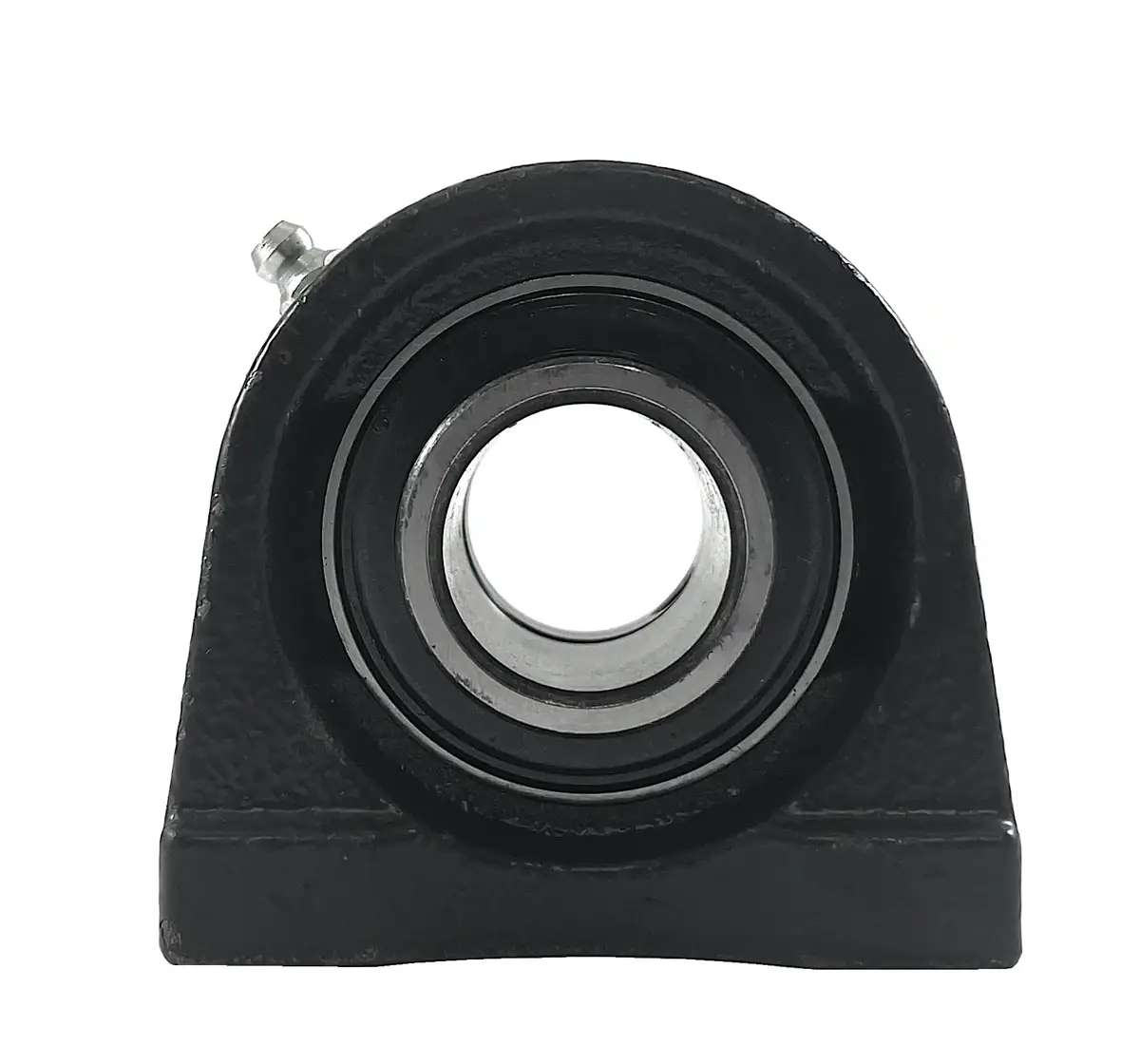

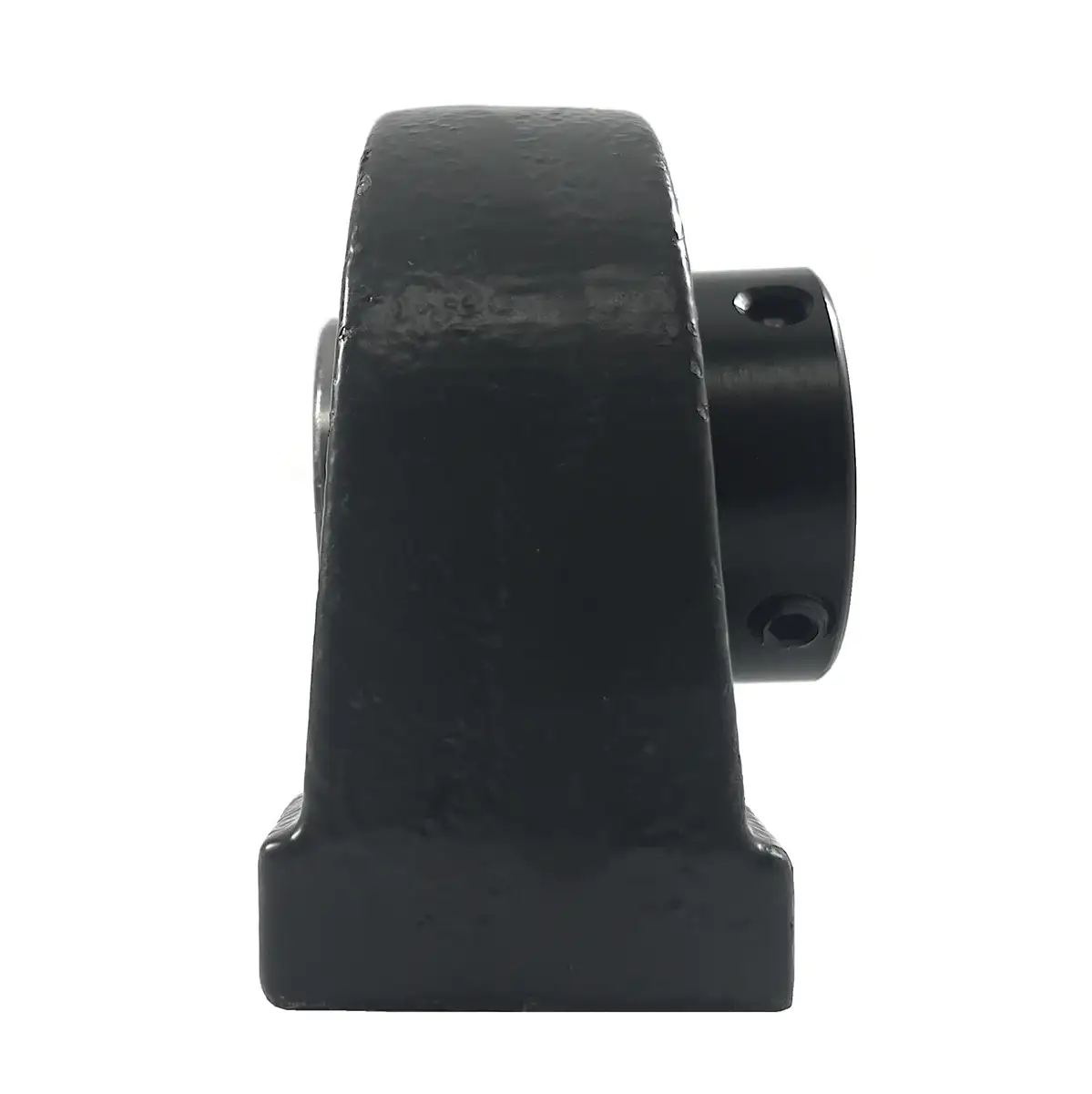

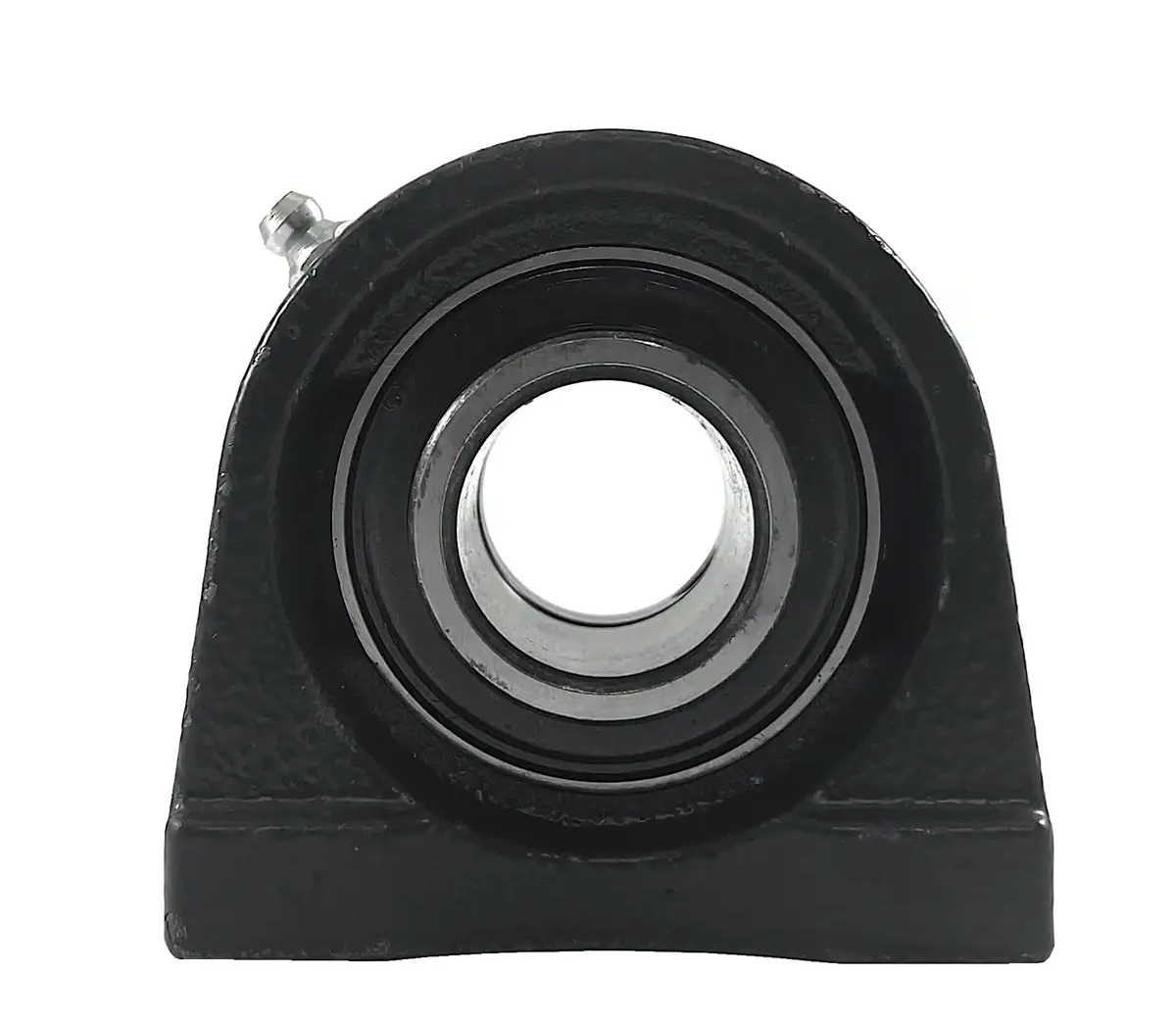

HCTB205-15 Bearing | 15/16" 2-Bolt Tapped Base Bearing

HCTB205-15 bearing is a 15/16" bore tapped-base normal-duty mounted bearing unit that utilizes an eccentric locking collar for securing onto a 15/16" shaft. HCTB205-15 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior HCTB205-15 bearing with a 15/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCTB205-15 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base HCTB205-15 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCTB205-15 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCTB205-15 bearings, and we will be happy to assist you!

HCTB205-15 Bearing Dimensions

• Part #: HCTB 205-15
• Shaft Diameter (d): 15/16"
• Dimension (H): 1.438"
• Dimension (A): 3.00"
• Dimension (E): 2.00"
• Dimension (B): 1.50"
• Dimension (R): 0.50"
• Dimension (G): 0.47"
• Dimension (W): 2.80"
• Dimension (Bi): 1.7480"
• Dimension (N): 0.6890"
• Dimension (M): 0.6850"
• Bolt Used: 3/8-16
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: HC 205-15
• Housing Number: TB 205
• Weight (LBS): 1.8
