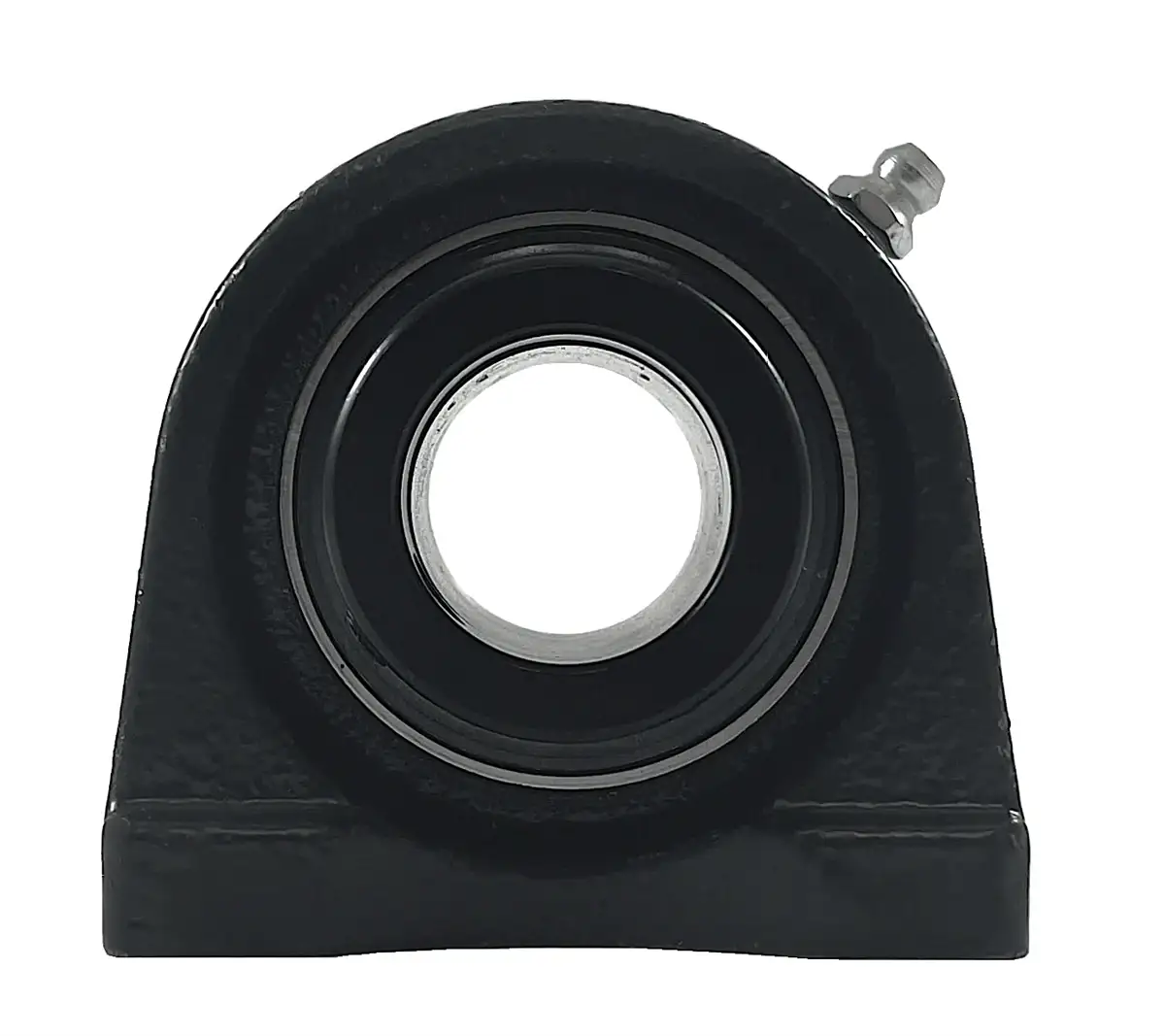

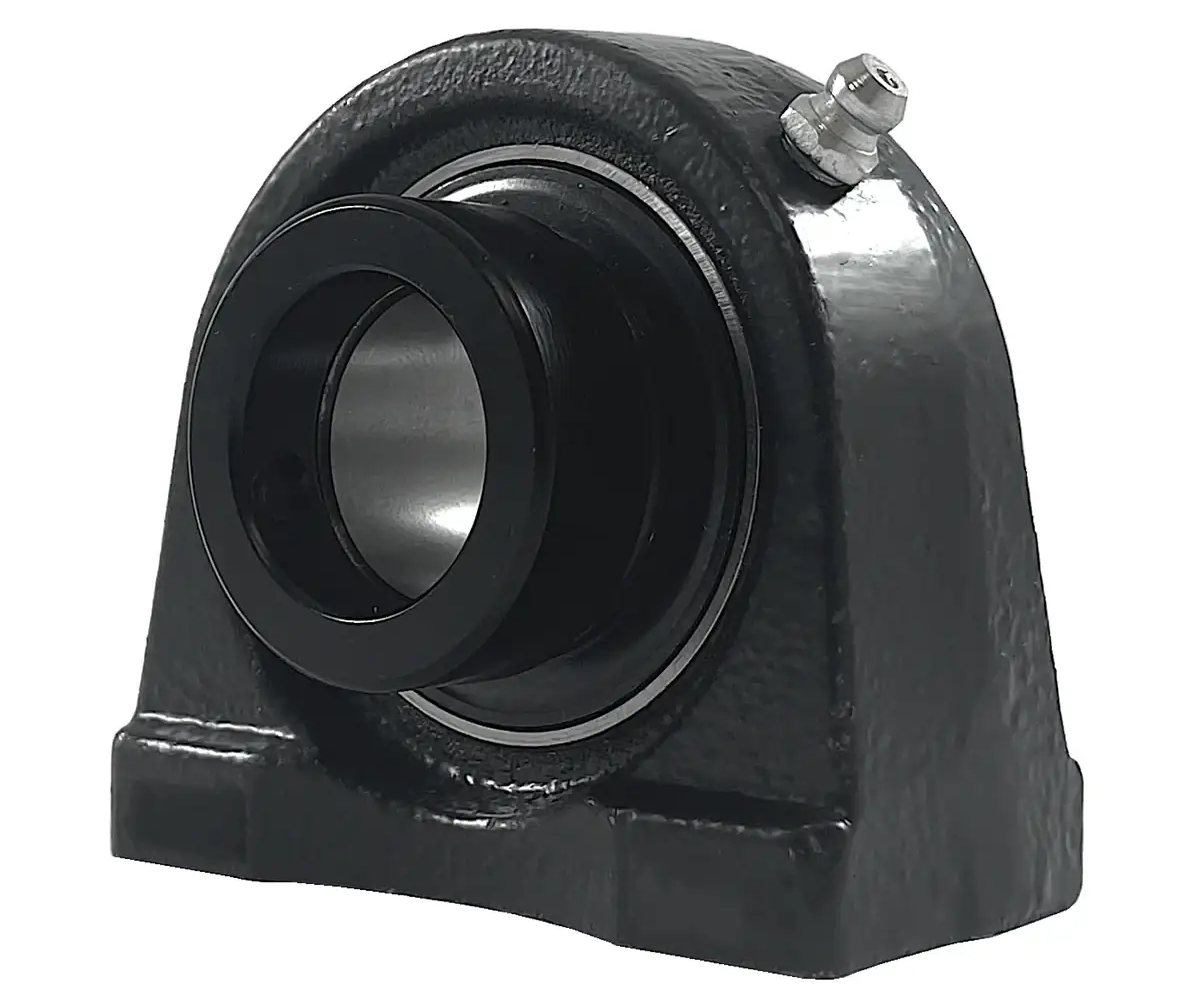

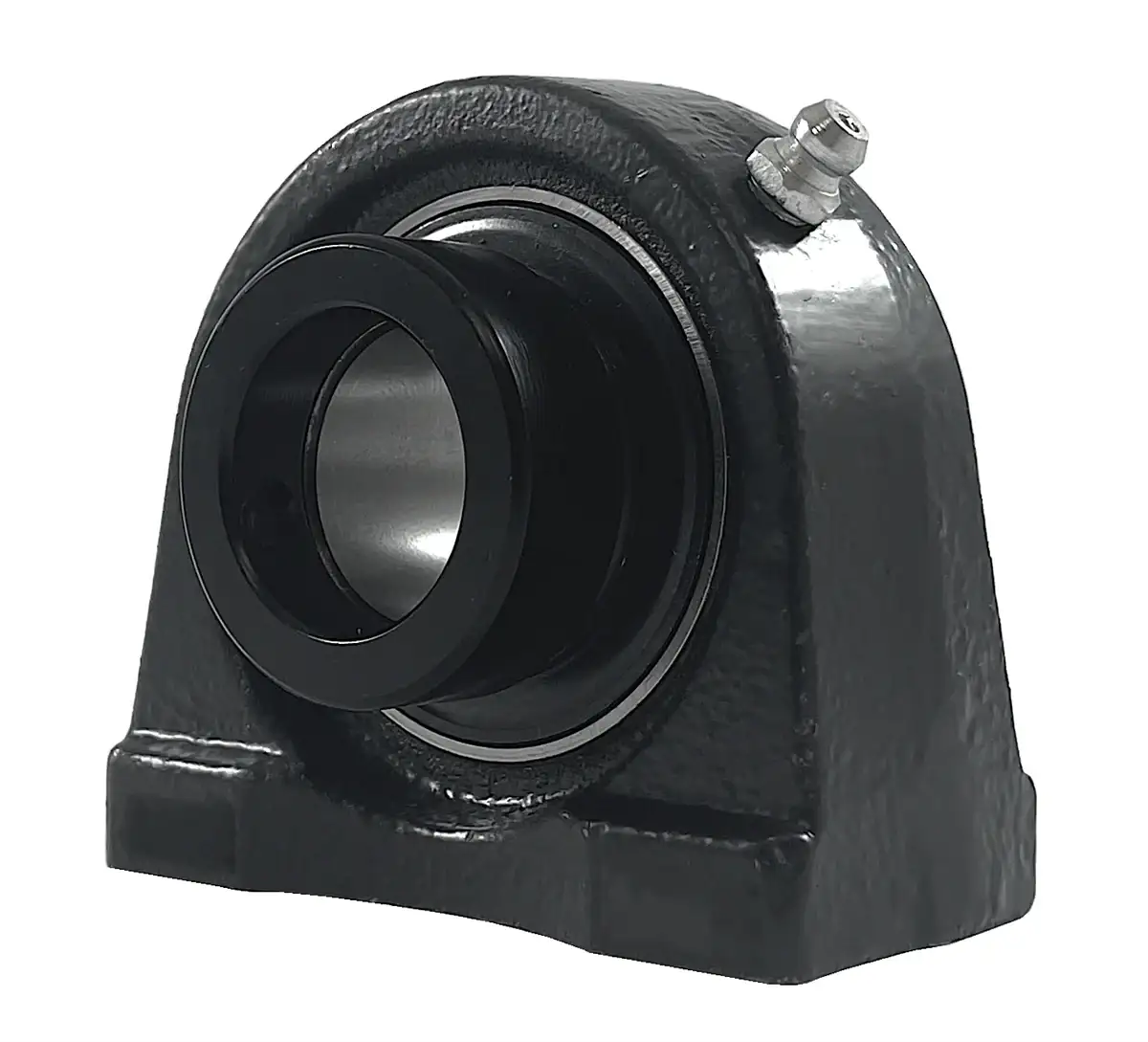

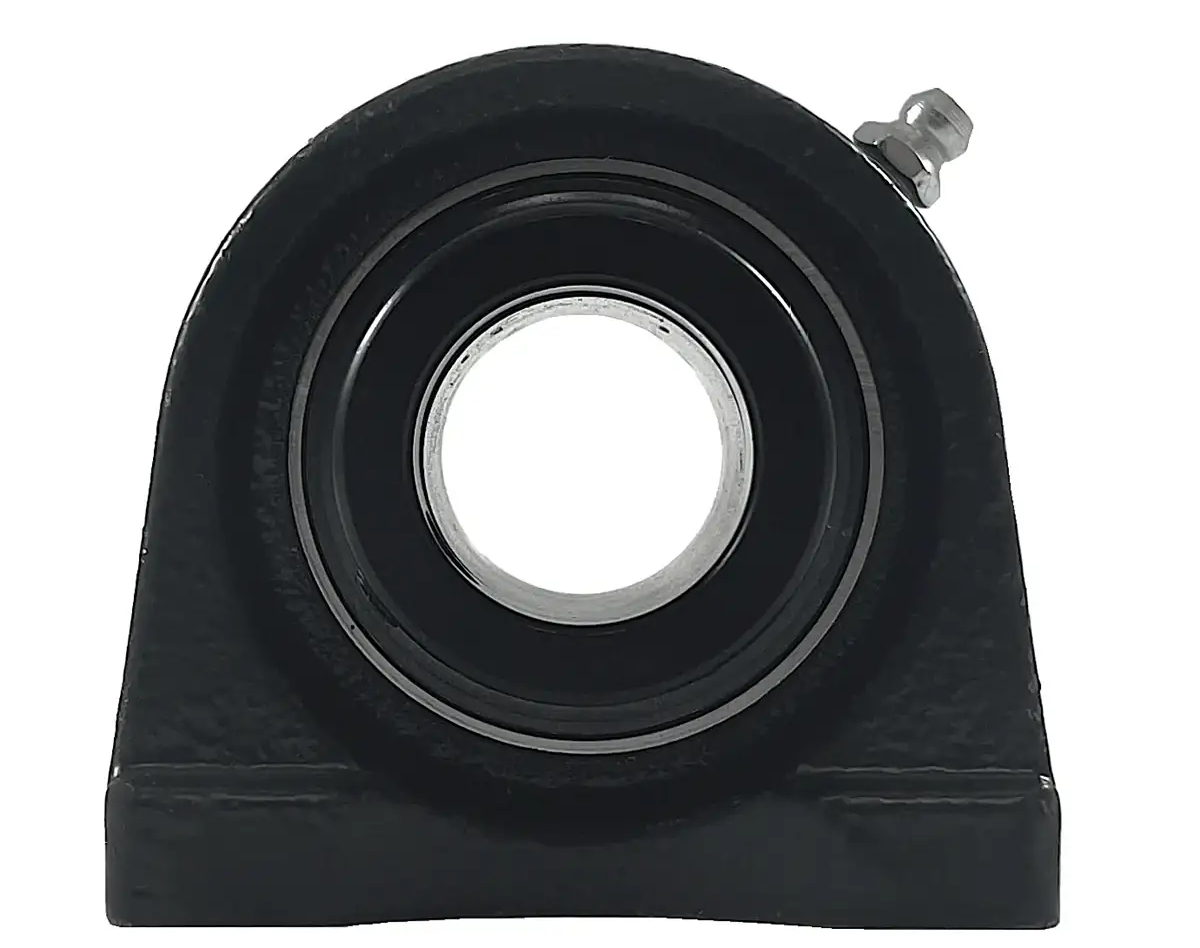

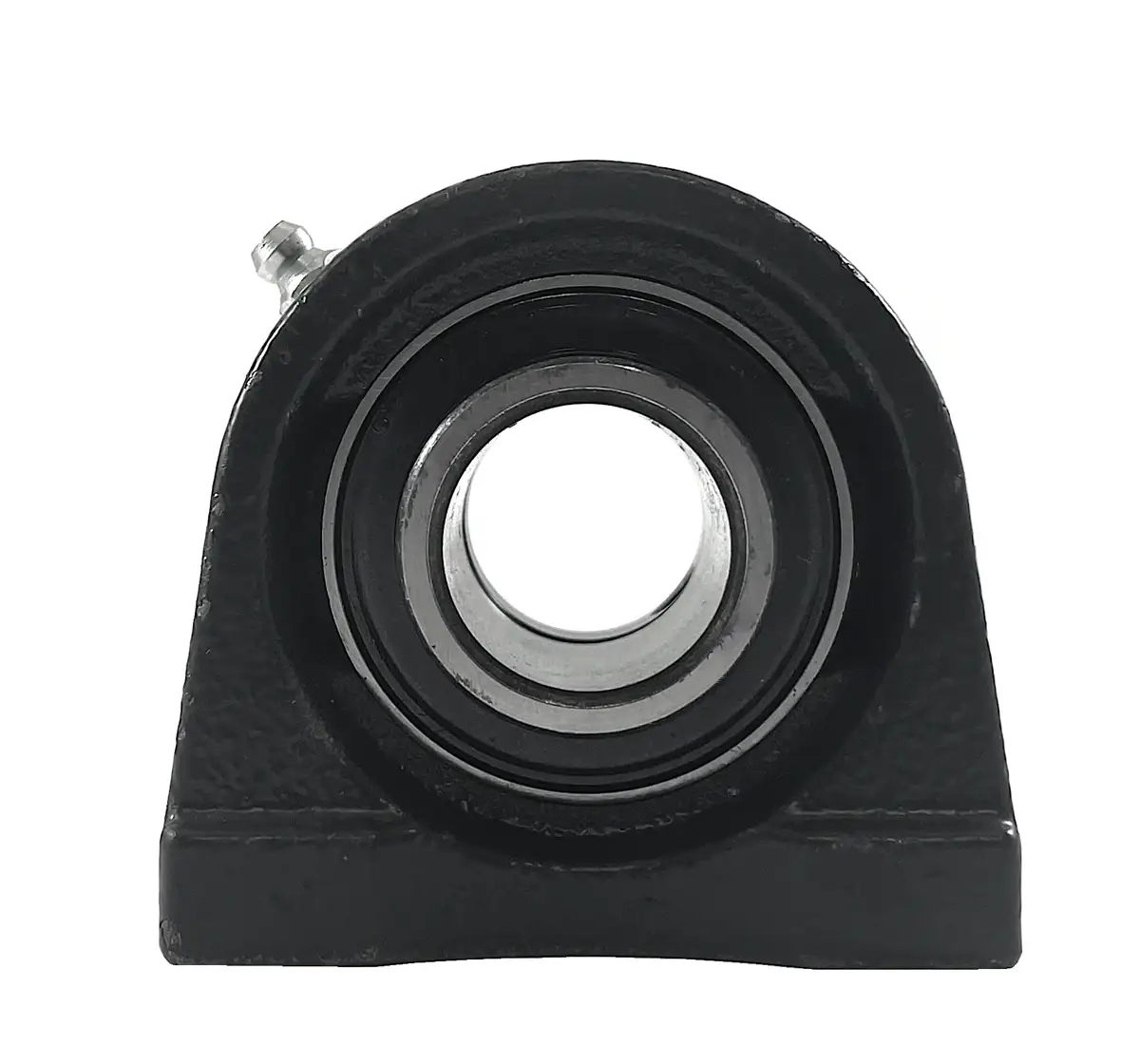

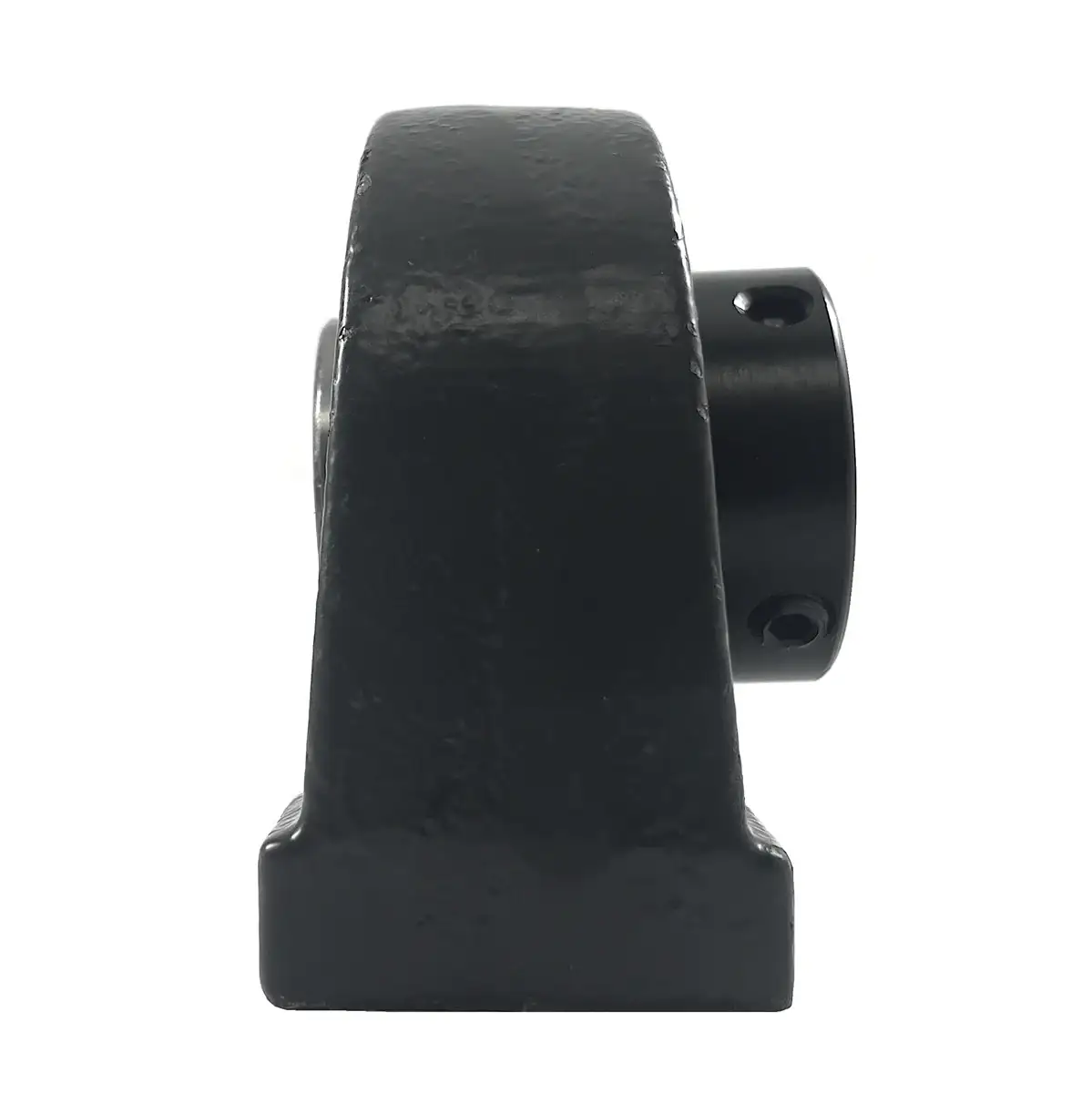

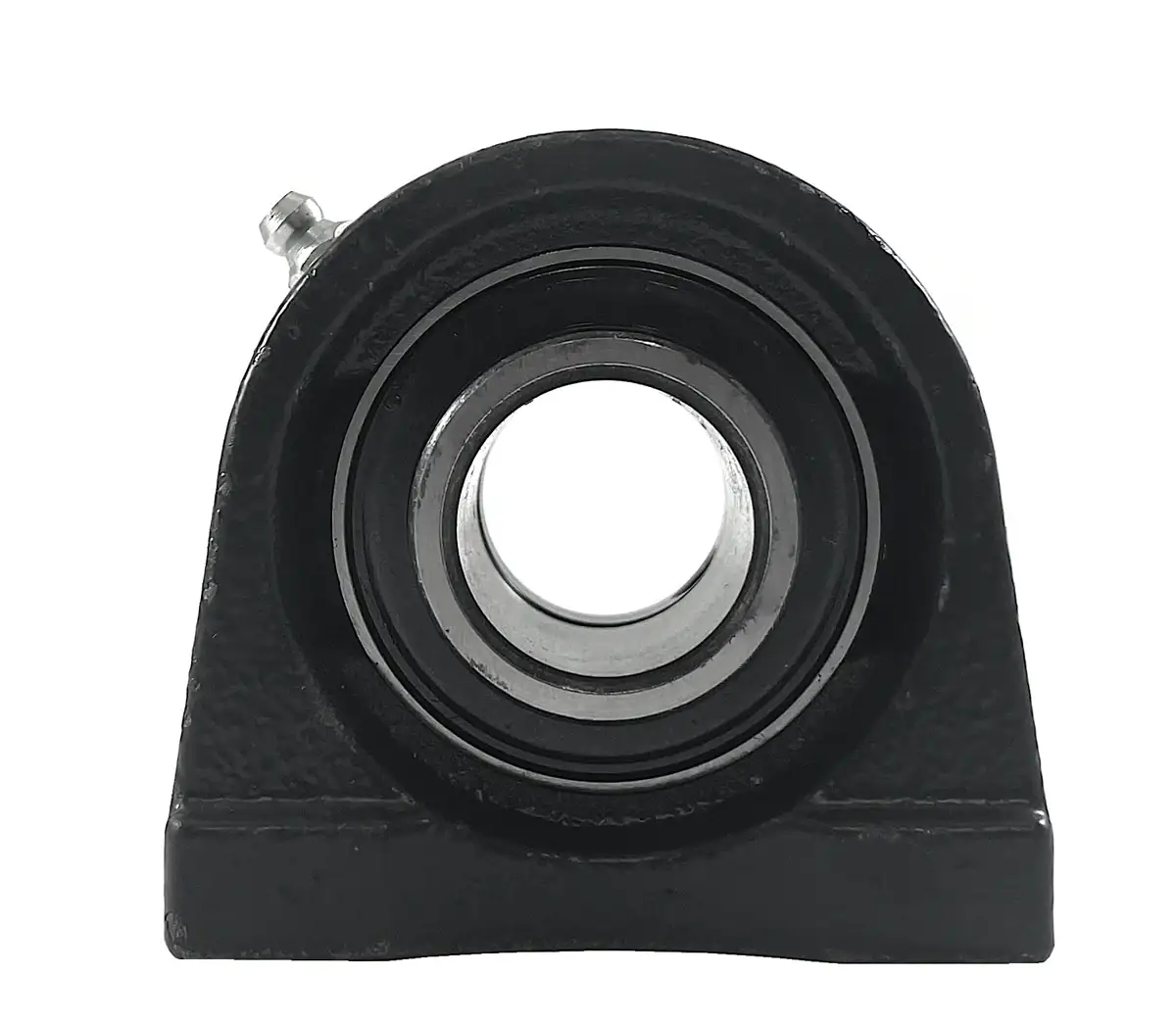

HCTB202 Bearing | 15mm 2-Bolt Tapped Base Bearing

HCTB202 bearing is a 15mm bore tapped-base normal-duty mounted bearing unit that utilizes an eccentric locking collar for securing onto a 15mm shaft. HCTB202 pillow block bearings have a unique housing designed for narrow applications with radial loads acting in the direction of the support surface. Our superior HCTB202 bearing with a 15mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCTB202 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Tapped base HCTB202 pillow block bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCTB202 bearings are manufactured to industry standard dimensions; they also interchange with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCTB202 bearings, and we will be happy to assist you!

HCTB202 Bearing Dimensions

• Part #: HCTB 202
• Shaft Diameter (d): 15mm
• Dimension (H): 33.3mm
• Dimension (A): 73.0mm
• Dimension (E): 50.8mm
• Dimension (B): 38.0mm
• Dimension (R): 13.0mm
• Dimension (G): 11.0mm
• Dimension (W): 65.0mm
• Dimension (Bi): 43.7mm
• Dimension (N): 17.1mm
• Dimension (M): 17.1mm
• Bolt Used: 3/8-16
• Dynamic Load Rating (kN): 12.82
• Static Load Rating (kN): 6.65
• Bearing Insert: HC 202
• Housing Number: TB 204
• Weight (kg): 0.7
