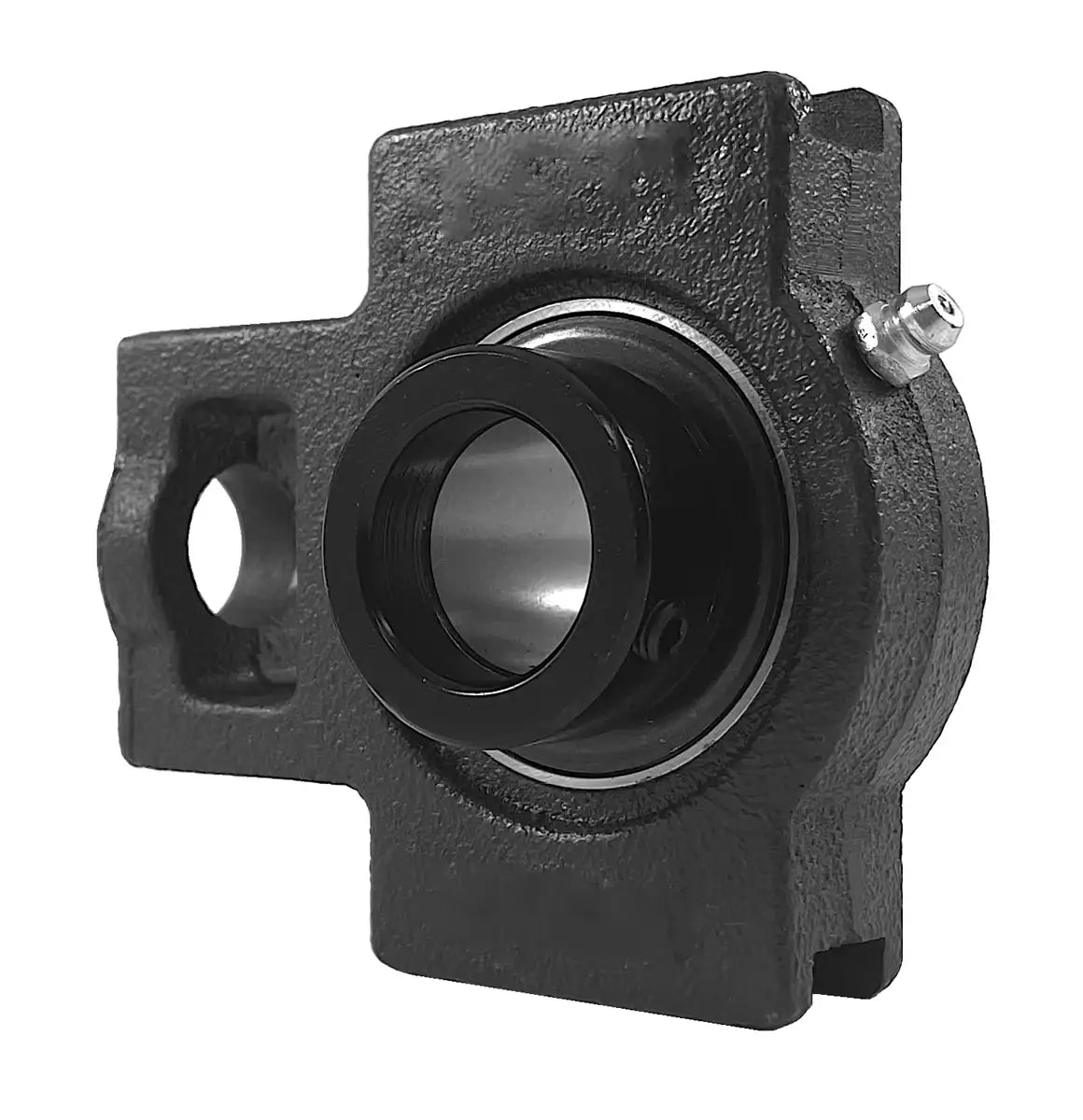

HCST212-38 Bearing | 2-3/8" Eccentric Locking Take-Up Bearing

HCST212-38 bearing is a 1/2" bore normal-duty take-up bearing that utilizes an eccentric locking collar to secure to a 1/2" shaft. HCST212-38 take-up bearings are designed for take-up frames, which creates an assembly that maintains and adjusts tension for conveyor and drive systems. Our superior HCST212-38 bearing with a 1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid cast-iron housing. Additionally, our HCST212-38 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. Our HCST212-38 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCST212-38 bearings, and we will be happy to assist you!

HCST212-38 Take-Up Bearing Dimensions

• Part #: HCST212-38
• Shaft Diameter (d): 2-3/8"
• Dimension (O): 1.25"
• Dimension (G): 0.75"
• Dimension (P): 4.00"
• Dimension (Q): 2.50"
• Dimension (S): 1.38"
• Dimension (B): 4.00"
• Dimension (K): 1.06"
• Dimension (E): 5.13"
• Dimension (A): 5.75"
• Dimension (W): 7.63"
• Dimension (J): 2.50"
• Dimension (L): 1.65"
• Dimension (H): 4.69"
• Dimension (Bi): 3.0630"
• Dimension (N): 1.2165"
• Dimension (M): 1.2205"
• Dynamic Load Rating (LBS): 10,720
• Static Load Rating (LBS): 7,516
• Bearing Insert: HC 212-38
• Housing Number: ST 212
• Weight (LBS): 11.2
