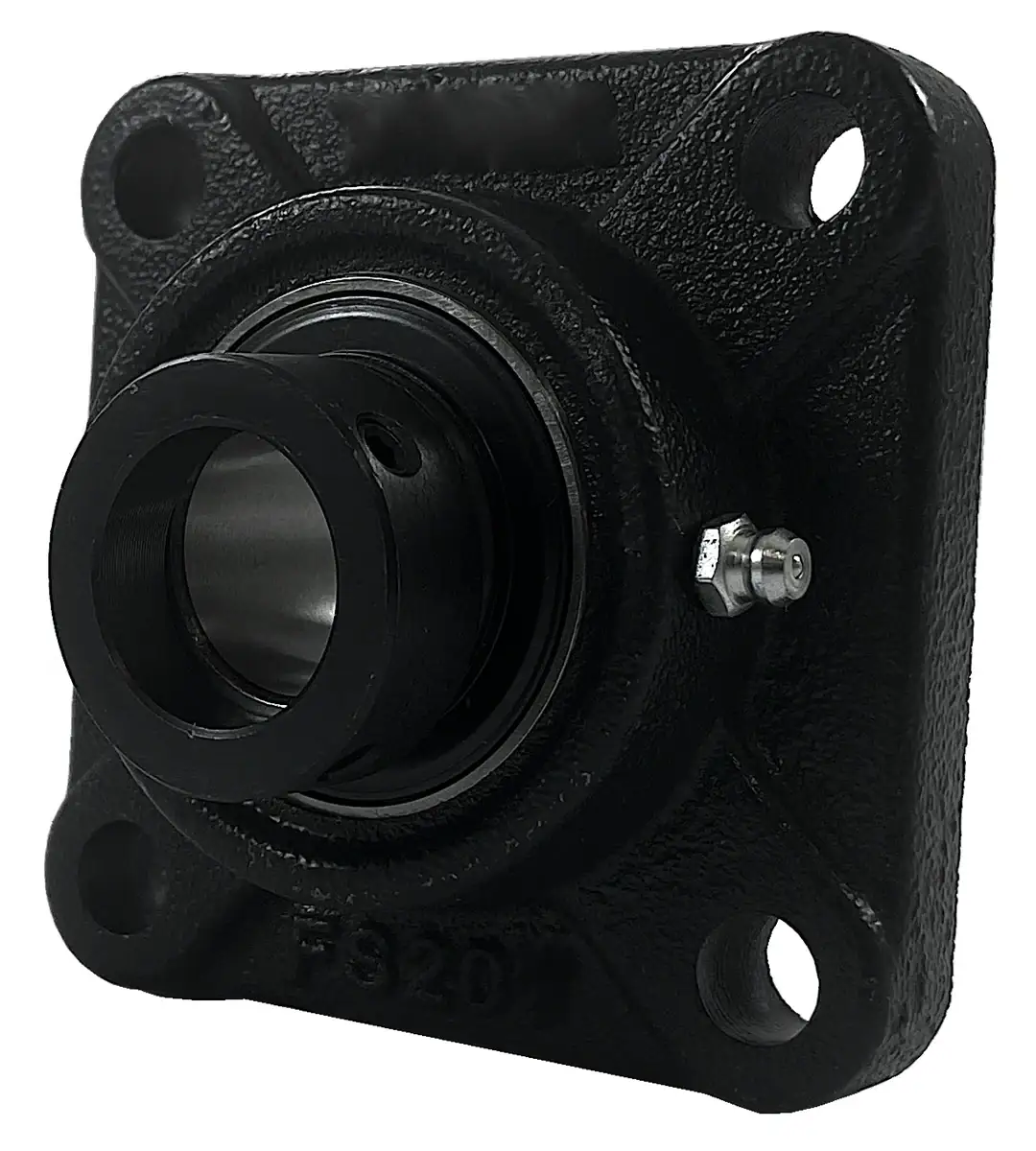

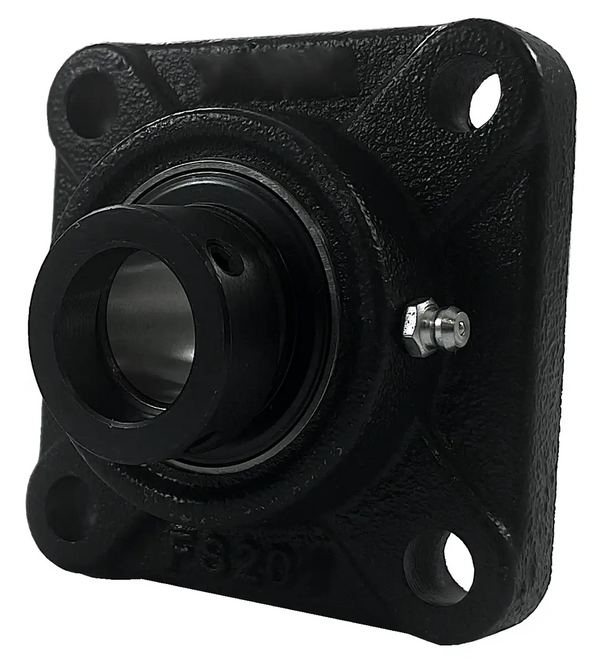

HCFS214 Bearing | 70mm 4-Bolt Eccentric Locking Bearing

HCFS214 bearing is a 70mm bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 70mm shaft. HCFS214 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS214 bearing with a 70mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS214 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS214 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS214 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS214 bearings, and we will be happy to assist you!

HCFS214 Bearing Dimensions

• Part #: HCFS 214
• Shaft Diameter (d): 70mm
• Dimension (A): 188.0mm
• Dimension (E): 149.2mm
• Dimension (I): 38.0mm
• Dimension (G): 23.0mm
• Dimension (L): 60.0mm
• Dimension (S): 18.0mm
• Dimension (Z): 89.6mm
• Dimension (Bi): 85.7mm
• Dimension (N): 34.1mm
• Dimension (M): 34.1mm
• Bolt Used: M16
• Dynamic Load Rating (kN): 62.19
• Static Load Rating (kN): 43.90
• Bearing Insert: HC 214
• Housing Number: FS 214
• Weight (kN): 6.2
