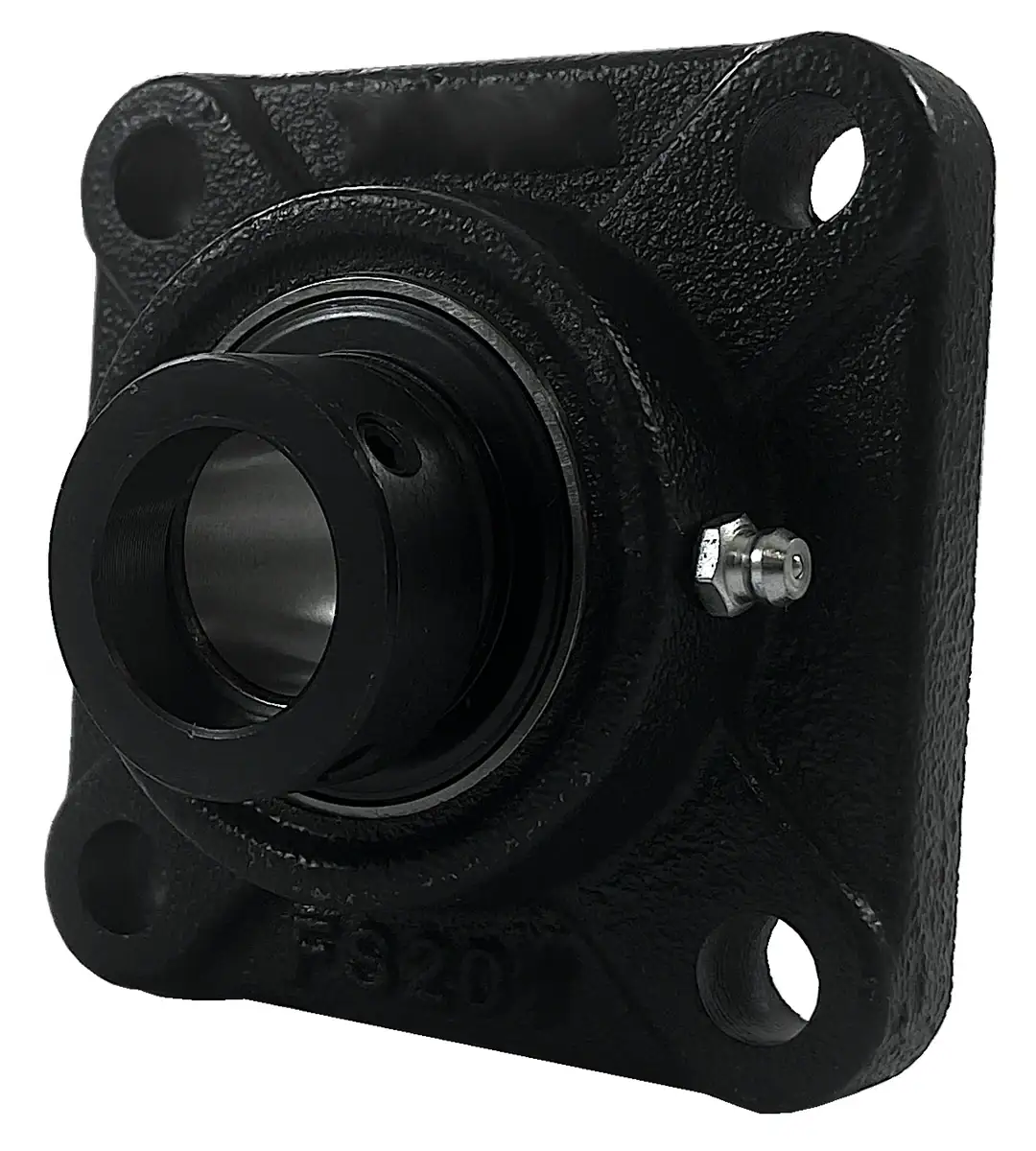

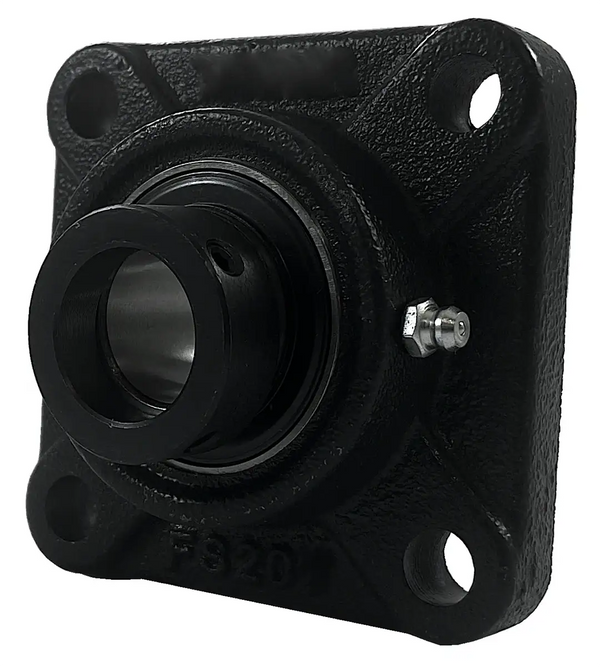

HCFS214-43 Bearing | 2-11/16" 4-Bolt Eccentric Locking Bearing

HCFS214-43 bearing is a 2-11/16" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 2-11/16" shaft. HCFS214-43 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS214-43 bearing with a 2-11/16" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS214-43 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS214-43 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS214-43 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS214-43 bearings, and we will be happy to assist you!

HCFS214-43 Bearing Dimensions

• Part #: HCFS 214-43
• Shaft Diameter (d): 2-11/16"
• Dimension (A): 7.38"
• Dimension (E): 5.875"
• Dimension (I): 1.50"
• Dimension (G): 0.91"
• Dimension (L): 2.38"
• Dimension (S): 0.71"
• Dimension (Z): 3.50"
• Dimension (Bi): 3.3740"
• Dimension (N): 1.3425"
• Dimension (M): 1.3425"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 13,981
• Static Load Rating (LBS): 9,869
• Bearing Insert: HC 214-43
• Housing Number: FS 214
• Weight (LBS): 13.6
