HCFS213-40 Bearing | 2-1/2" 4-Bolt Eccentric Locking Bearing

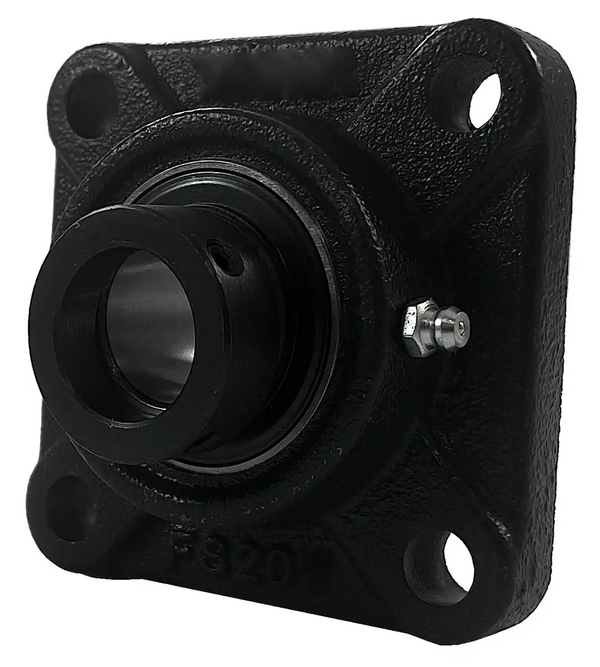

HCFS213-40 bearing is a 2-1/2" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 2-1/2" shaft. HCFS213-40 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS213-40 bearing with a 2-1/2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS213-40 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS213-40 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS213-40 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS213-40 bearings, and we will be happy to assist you!

HCFS213-40 Bearing Dimensions

• Part #: HCFS 213-40
• Shaft Diameter (d): 2-1/2"
• Dimension (A): 7.25"
• Dimension (E): 5.875"
• Dimension (I): 1.50"
• Dimension (G): 0.88"
• Dimension (L): 2.28"
• Dimension (S): 0.71"
• Dimension (Z): 3.50"
• Dimension (Bi): 3.3740"
• Dimension (N): 1.3425"
• Dimension (M): 1.3425"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 12,859
• Static Load Rating (LBS): 8,994
• Bearing Insert: HC 213-40
• Housing Number: FS 213
• Weight (LBS): 13.6
