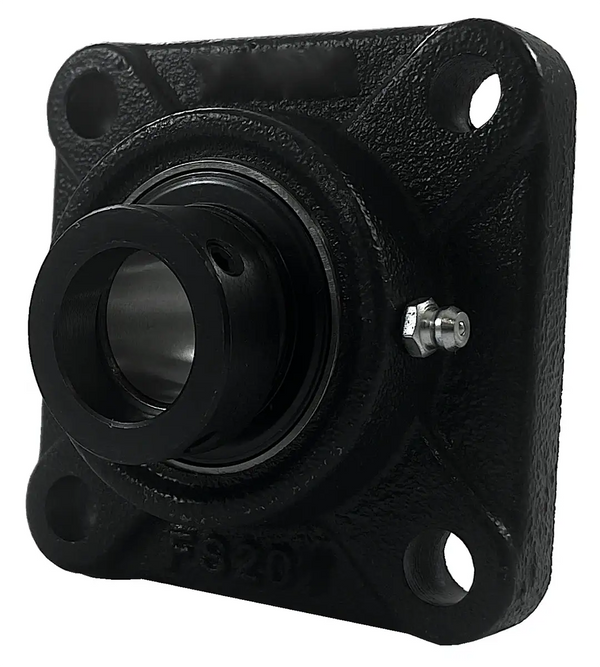

HCFS212 Bearing | 60mm 4-Bolt Eccentric Locking Bearing

HCFS212 bearing is a 60mm bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 60mm shaft. HCFS212 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS212 bearing with a 60mm bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS212 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS212 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS212 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS212 bearings, and we will be happy to assist you!

HCFS212 Bearing Dimensions

• Part #: HCFS 212
• Shaft Diameter (d): 60mm
• Dimension (A): 175.0mm
• Dimension (E): 142.9mm
• Dimension (I): 34.0mm
• Dimension (G): 22.0mm
• Dimension (L): 54.0mm
• Dimension (S): 17.0mm
• Dimension (Z): 80.9mm
• Dimension (Bi): 77.8mm
• Dimension (N): 30.9mm
• Dimension (M): 31.0mm
• Bolt Used: M16
• Dynamic Load Rating (kN): 47.69
• Static Load Rating (kN): 33.43
• Bearing Insert: HC 212
• Housing Number: FS 212
• Weight (kg): 5.6
