HCFS211-32 Bearing | 2" 4-Bolt Eccentric Locking Bearing

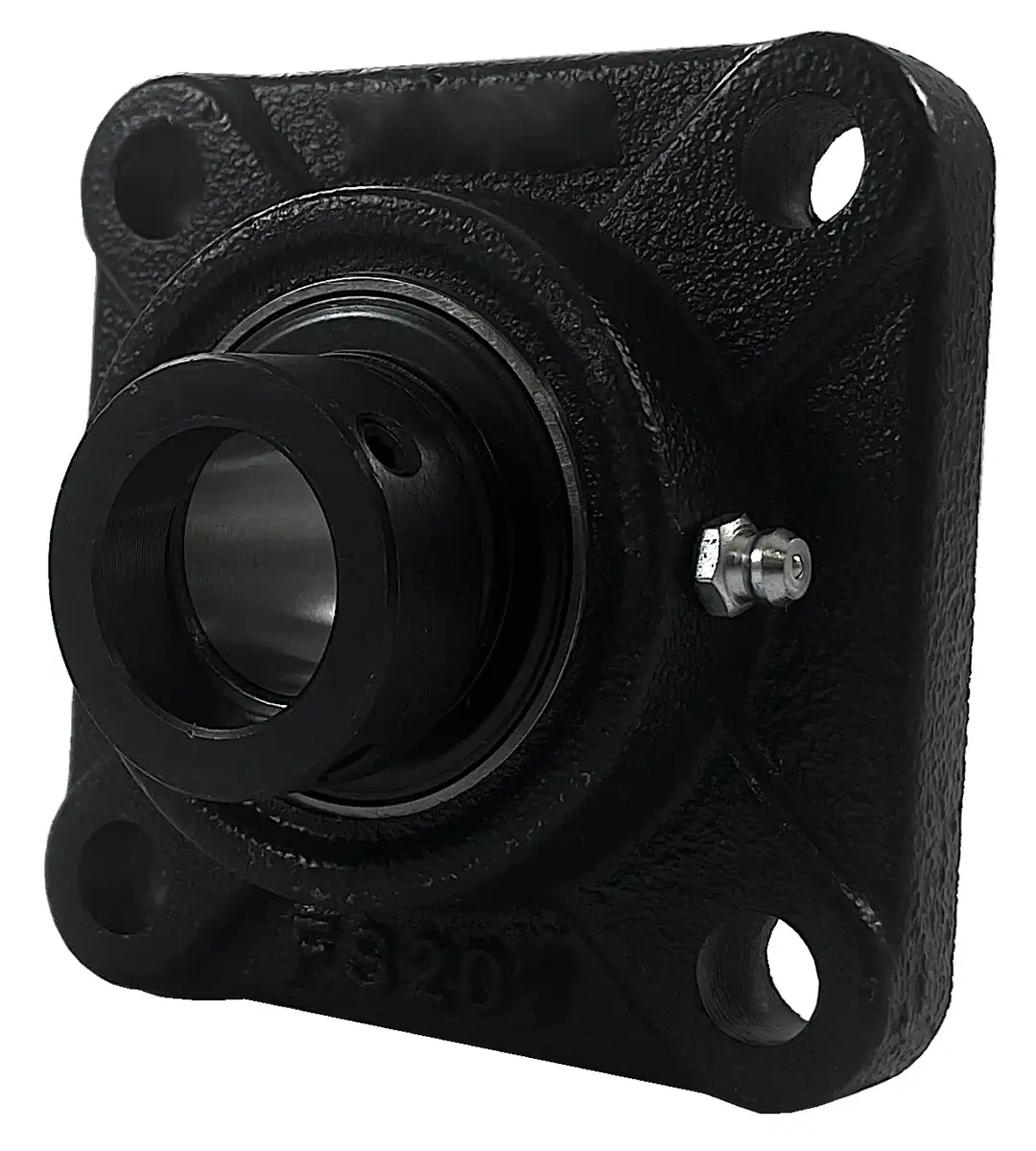

HCFS211-32 bearing is a 2" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 2" shaft. HCFS211-32 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS211-32 bearing with a 2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS211-32 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS211-32 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS211-32 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS211-32 bearings, and we will be happy to assist you!

HCFS211-32 Bearing Dimensions

• Part #: HCFS 211-32
• Shaft Diameter (d): 2"
• Dimension (A): 6.38"
• Dimension (E): 5.125"
• Dimension (I): 1.22"
• Dimension (G): 0.81"
• Dimension (L): 1.94"
• Dimension (S): 0.69"
• Dimension (Z): 2.94"
• Dimension (Bi): 2.8110"
• Dimension (N): 1.0906"
• Dimension (M): 1.0945"
• Bolt Used: 5/8
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608
• Bearing Insert: HC 211-32
• Housing Number: FS 211
• Weight (LBS): 9.9
