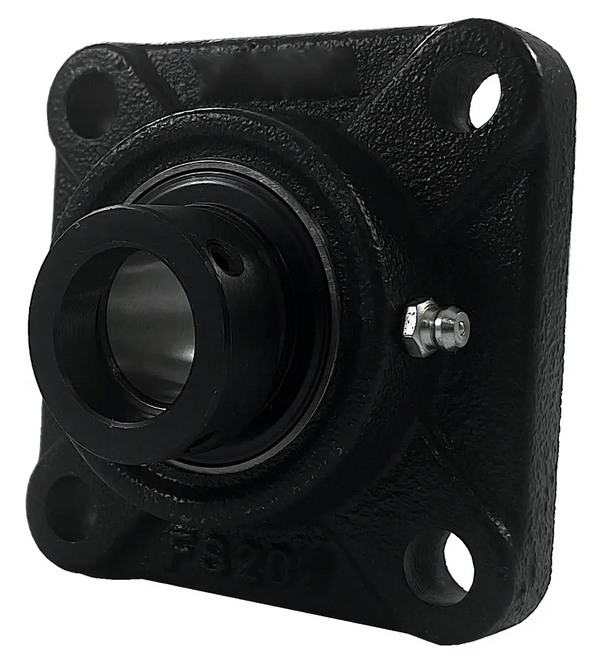

HCFS207-22 Bearing | 1-3/8" 4-Bolt Eccentric Locking Bearing

HCFS207-22 bearing is a 1-3/8" bore four-bolt normal-duty flange bearing that utilizes an eccentric locking device to secure to a 1-3/8" shaft. HCFS207-22 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and poses great stability and rigidity due to the four mounting positions. Our superior HCFS207-22 bearing with a 1-3/8" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFS207-22 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFS207-22 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFS207-22 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFS207-22 bearings, and we will be happy to assist you!

HCFS207-22 Bearing Dimensions

• Part #: HCFS 207-22
• Shaft Diameter (d): 1-3/8"
• Dimension (A): 4.56"
• Dimension (E): 3.625"
• Dimension (I): 0.83"
• Dimension (G): 1.38"
• Dimension (L): 0.51"
• Dimension (S): 2.09"
• Dimension (Z): 2.0118"
• Dimension (Bi): 0.7402"
• Dimension (N): 0.7402"
• Dimension (M): 1/2"
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 5.775
• Static Load Rating (LBS): 3.497
• Bearing Insert: HC 207-22
• Housing Number: FS 207
• Weight (LBS): 3.5
