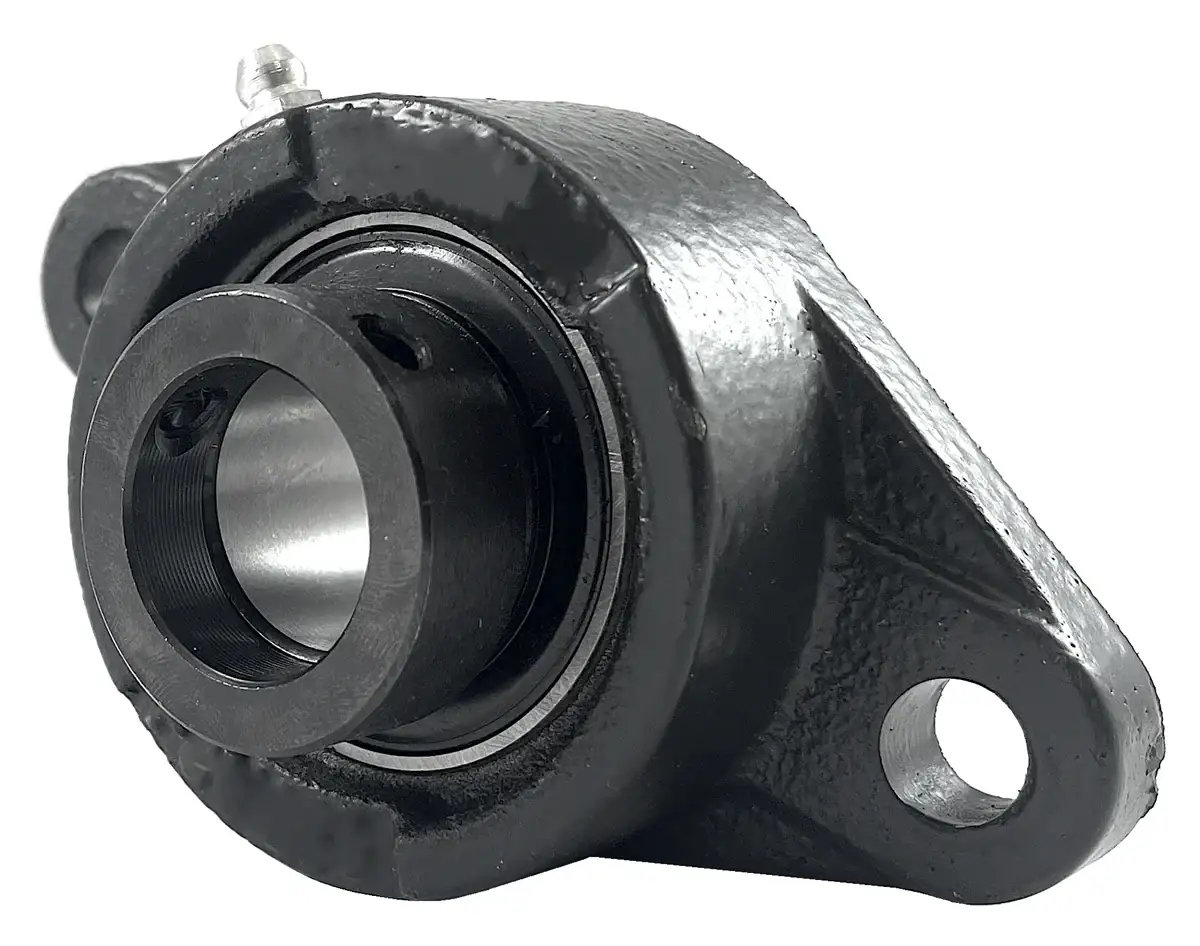

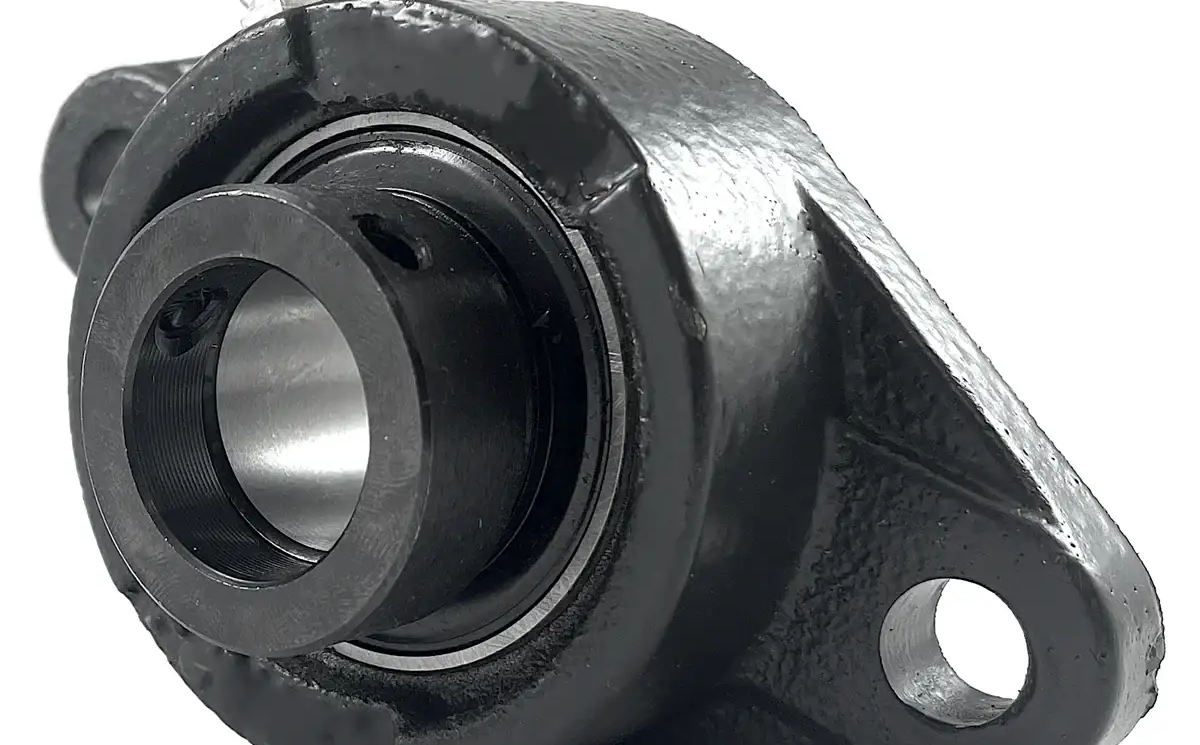

HCFJT211-32 Bearing | 2" 2-Bolt Eccentric Locking Bearing

HCFJT211-32 bearing is a 2" bore two-bolt normal-duty flange bearing that utilizes an eccentric locking collar device to secure to a 2" shaft. HCFJT211-32 flange bearings are designed for circumstances where the bearing is mounted to a surface perpendicular to the shaft axis and can fit in more space-restricted areas while still offering excellent stability with two mounting holes. Our superior HCFJT211-32 bearing with a 2" bore is equipped with a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Additionally, our HCFJT211-32 bearing has added features that improve the overall life and performance of the unit, such as; a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCFJT211-32 bearings are commonly used in applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Our HCFJT211-32 bearing is dimensionally made to industry standards, meaning it interchanges with just about any brand out there. Contact our customer support team for further information or to get a quote on our HCFJT211-32 bearings, and we will be happy to assist you!

HCFJT211-32 Bearing Dimensions

• Part #: HCFJT 211-32
• Shaft Diameter (d): 2"
• Dimension (A): 8.50"
• Dimension (E): 7.250"
• Dimension (I): 1.25"
• Dimension (G): 0.83"
• Dimension (L): 2.00"
• Dimension (S): 0.71"
• Dimension (B): 5.25"
• Dimension (Z): 2.97"
• Dimension (Bi): 2.8110"
• Dimension (N): 1.0945"
• Dimension (M): 1.0906"
• Bolt Used: 9/16
• Dynamic Load Rating (LBS): 9,743
• Static Load Rating (LBS): 6,608

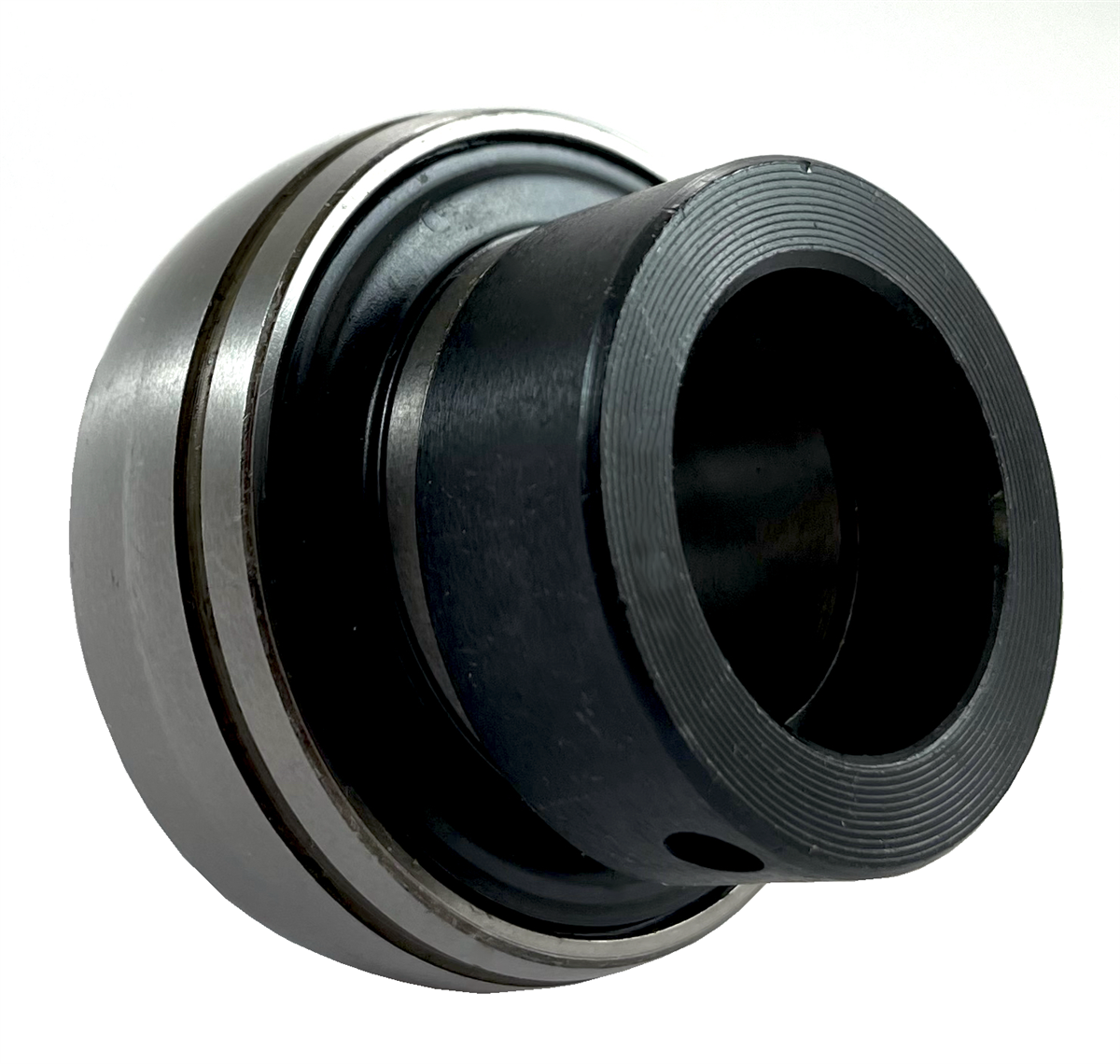

• Bearing Insert: HC 211-32
• Housing Number: FJT 211
• Weight (LBS): 8.1
