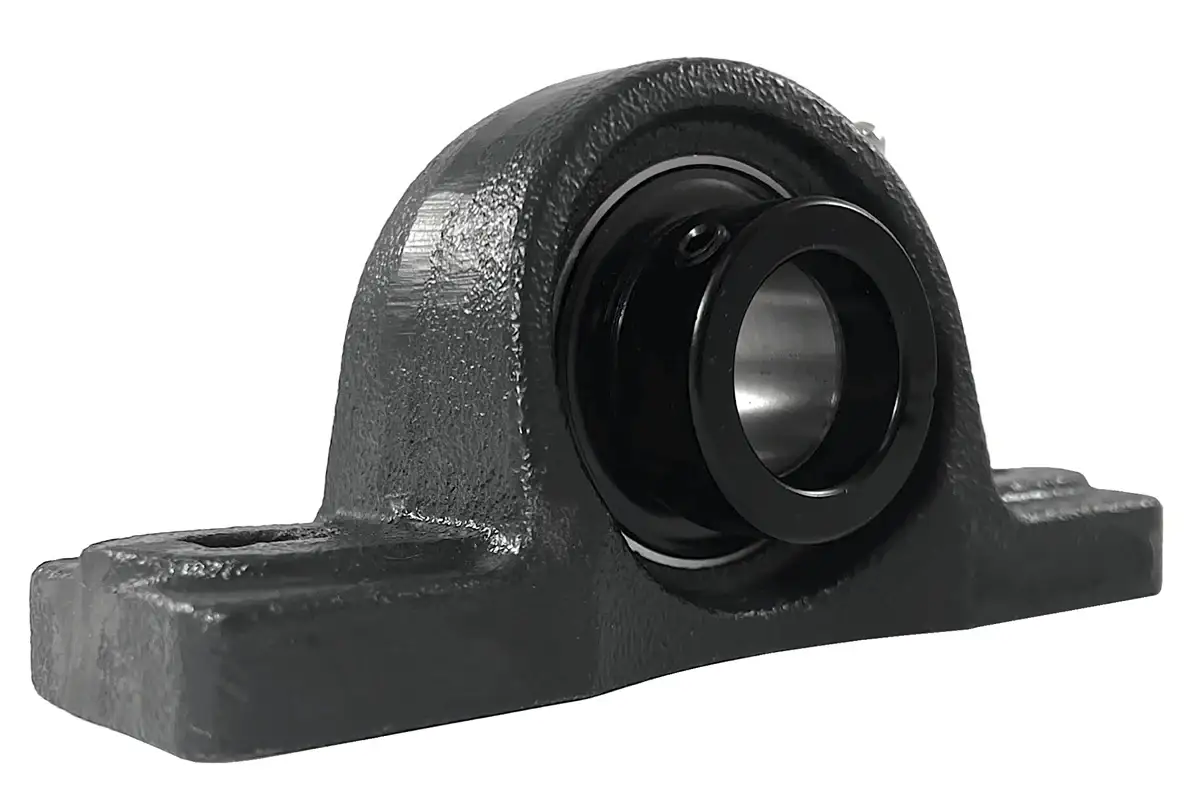

HCAK213-40 Bearing | 2-1/2" 2-Bolt Eccentric Locking Bearing

HCAK213-40 bearing is a two-bolt normal duty pillow block bearing with a 2-1/2" bore. It utilizes an eccentric locking collar for securing the beating to a 2-1/2" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK213-40 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK213-40 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK213-40 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK213-40 bearings, and we will be happy to assist you!

HCAK213-40 Bearing Dimensions

• Part #: HCAK 213-40
• Shaft Diameter (d): 2-1/2"
• Dimension (H): 2.688"
• Dimension (A): 9.75"
• Dimension (E): 7.63"
• Dimension (B): 2.75"
• Dimension (S2): 1.13"
• Dimension (S1): 0.88"
• Dimension (G): 1.06"
• Dimension (W): 5.56"
• Dimension (Bi): 3.3740"
• Dimension (N): 1.3425"
• Dimension (M): 1.3425"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 12,859
• Static Load Rating (LBS): 8,994
• Bearing Insert: HC 213-40
• Housing Number: AK 213
• Weight (LBS): 14.5
