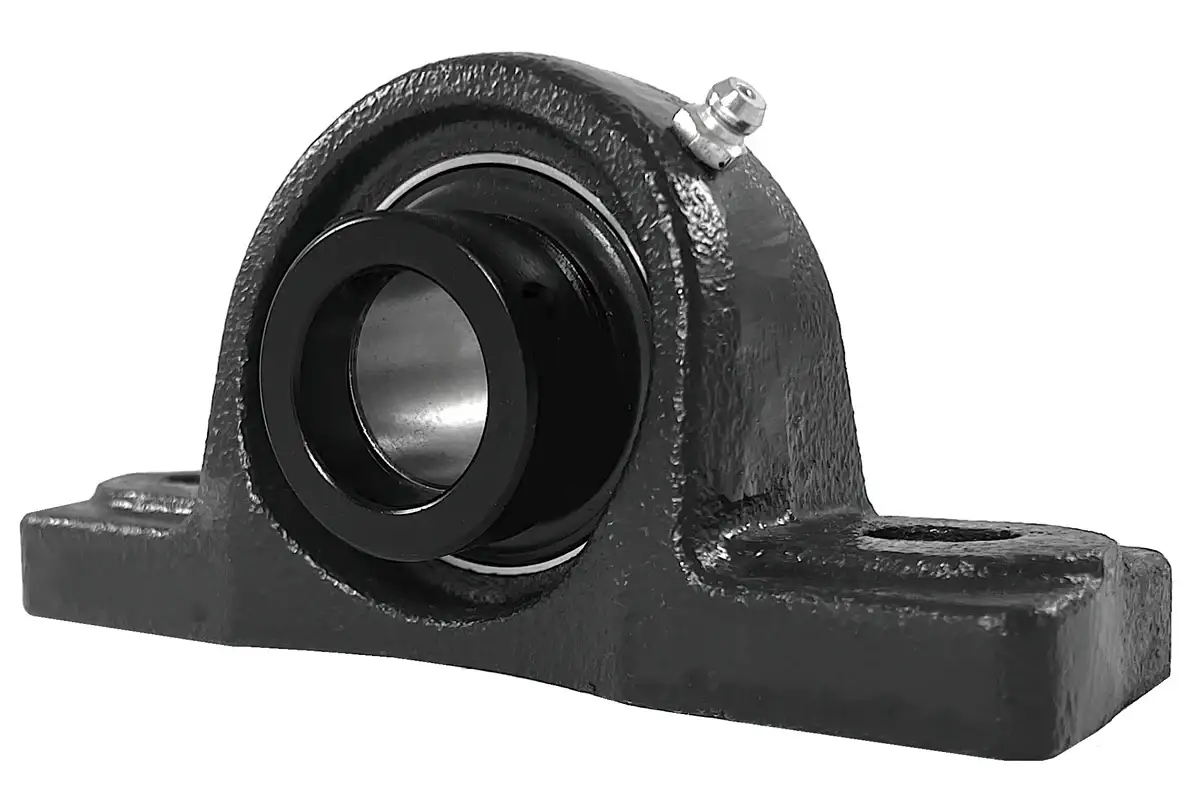

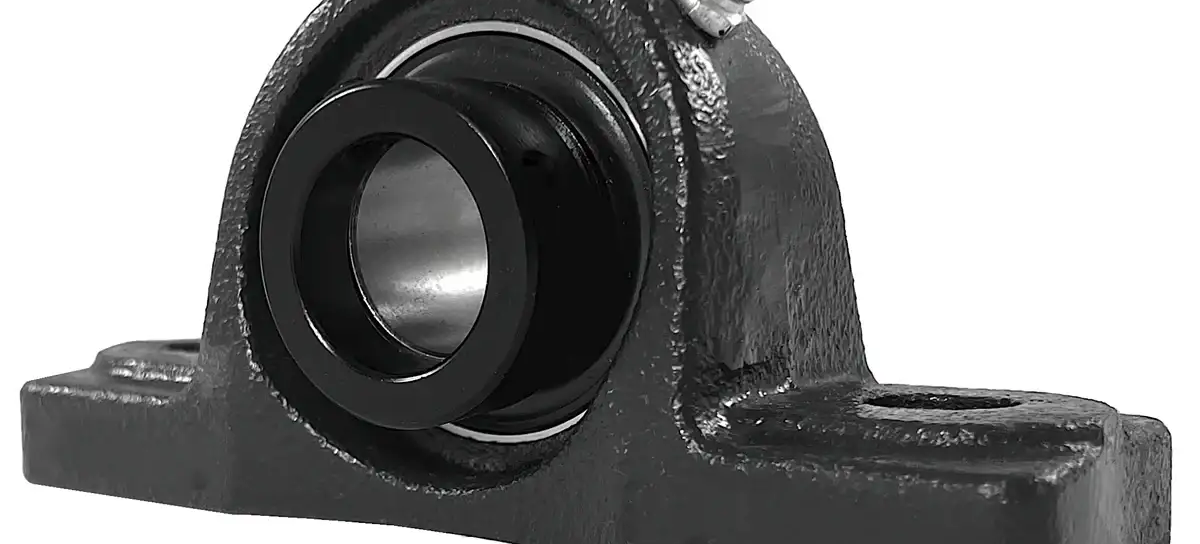

HCAK208-24 Bearing | 1-1/2" 2-Bolt Eccentric Locking Bearing

HCAK208-24 bearing is a two-bolt normal duty pillow block bearing with a 1-1/2" bore. It utilizes an eccentric locking collar for securing the beating to a 1-1/2" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK208-24 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK208-24 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK208-24 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK208-24 bearings, and we will be happy to assist you!

HCAK208-24 Bearing Dimensions

• Part #: HCAK 208-24
• Shaft Diameter (d): 1-1/2"
• Dimension (H): 1.938"
• Dimension (A): 7.25"
• Dimension (E): 5.38"
• Dimension (B): 2.13"
• Dimension (S2): 0.81"
• Dimension (S1): 0.59"
• Dimension (G): 0.71"
• Dimension (W): 3.88"
• Dimension (Bi): 2.2165"
• Dimension (N): 0.8425"
• Dimension (M): 0.8425
• Bolt Used: 1/2
• Dynamic Load Rating (LBS): 6,634
• Static Load Rating (LBS): 4,676
• Bearing Insert: HC 208-24
• Housing Number: P 208
• Weight (LBS): 4.8
