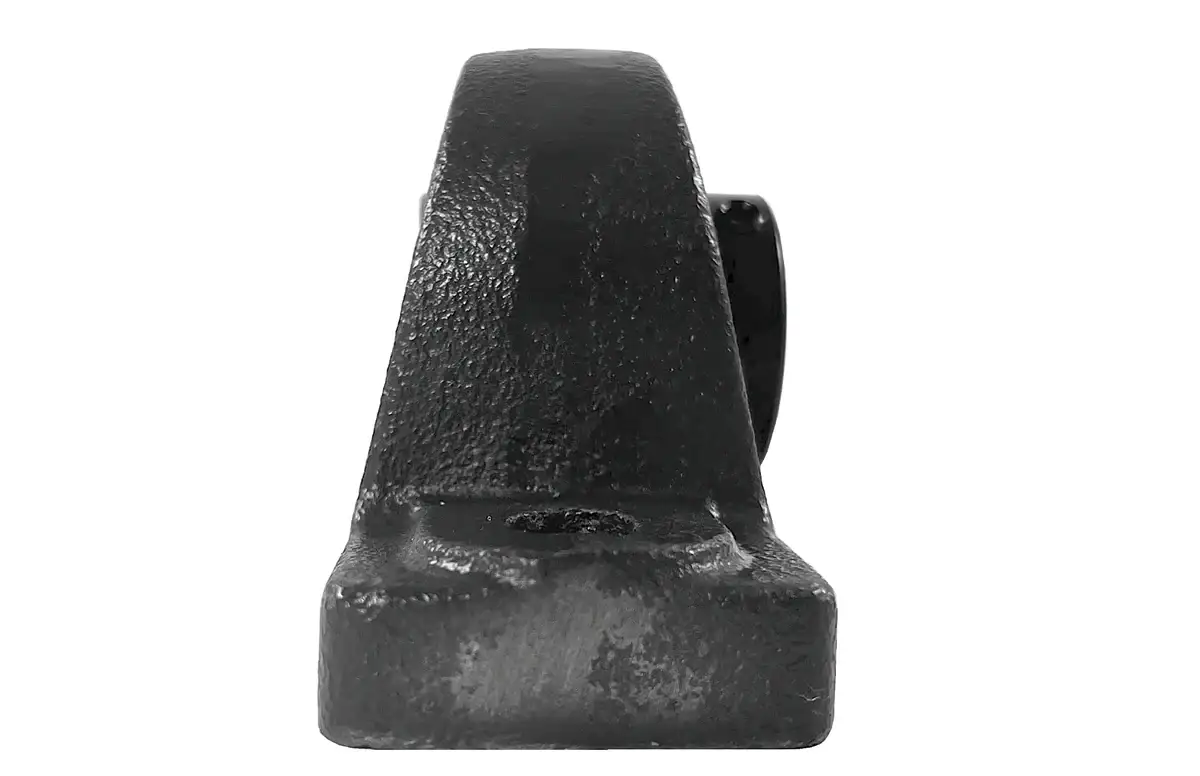

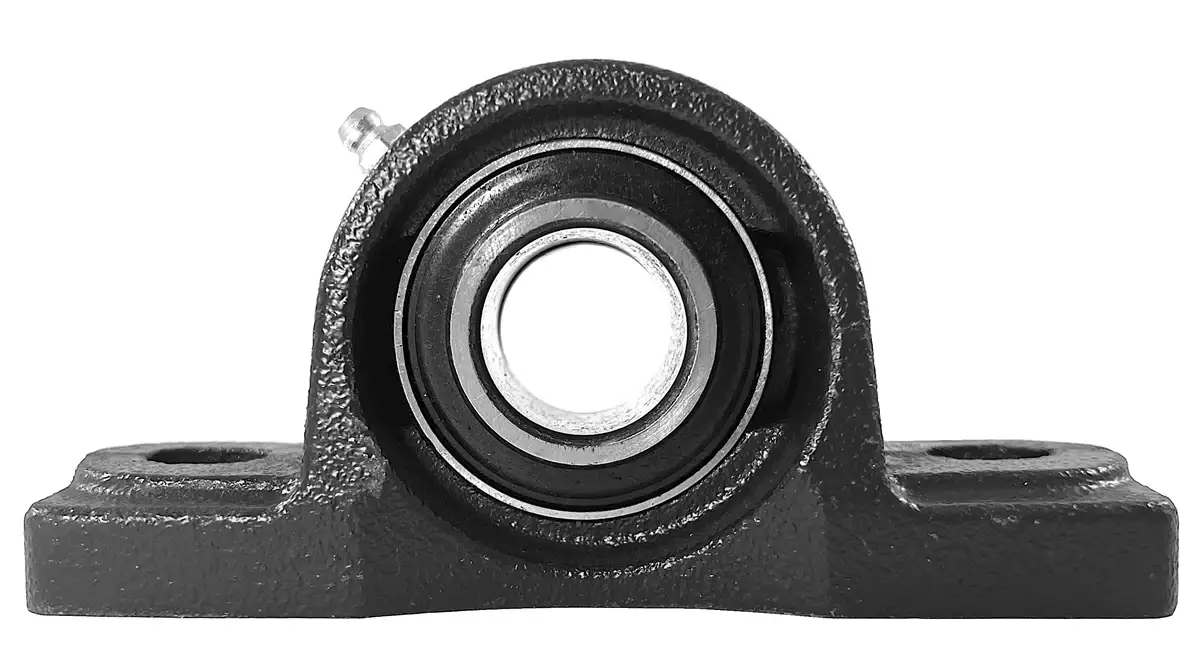

HCAK205-16 Bearing | 1" 2-Bolt Eccentric Locking Bearing

HCAK205-16 bearing is a two-bolt normal duty pillow block bearing with a 1" bore. It utilizes an eccentric locking collar for securing the beating to a 1" shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK205-16 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK205-16 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK205-16 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK205-16 bearings, and we will be happy to assist you!

HCAK205-16 Bearing Dimensions

• Part #: HCAK 205-16
• Shaft Diameter (d): 1"
• Dimension (H): 1.313"
• Dimension (A): 5.50"
• Dimension (E): 4.13"
• Dimension (B): 1.78"
• Dimension (S2): 0.63"
• Dimension (S1): 0.47"
• Dimension (G): 0.63"
• Dimension (W): 2.68"
• Dimension (Bi): 1.7480"
• Dimension (N): 0.6850"
• Dimension (M): 0.6890"
• Bolt Used: 3/8
• Dynamic Load Rating (LBS): 3,155
• Static Load Rating (LBS): 1,810
• Bearing Insert: HC 205-16
• Housing Number: AK 205
• Weight (LBS): 2.2
