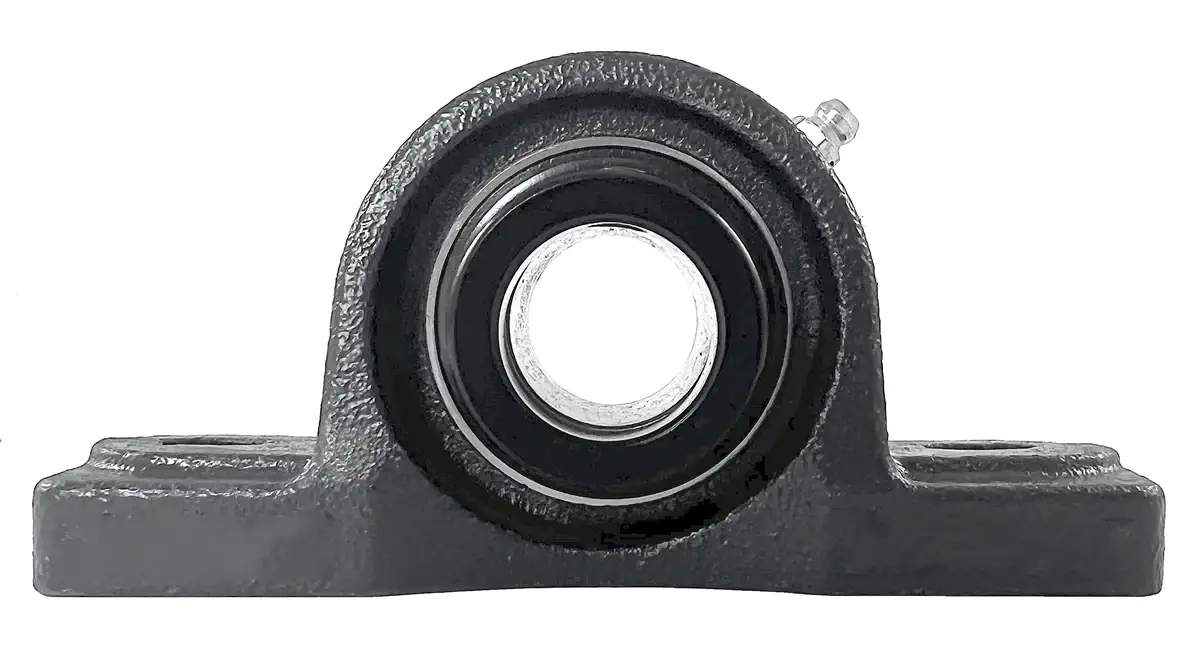

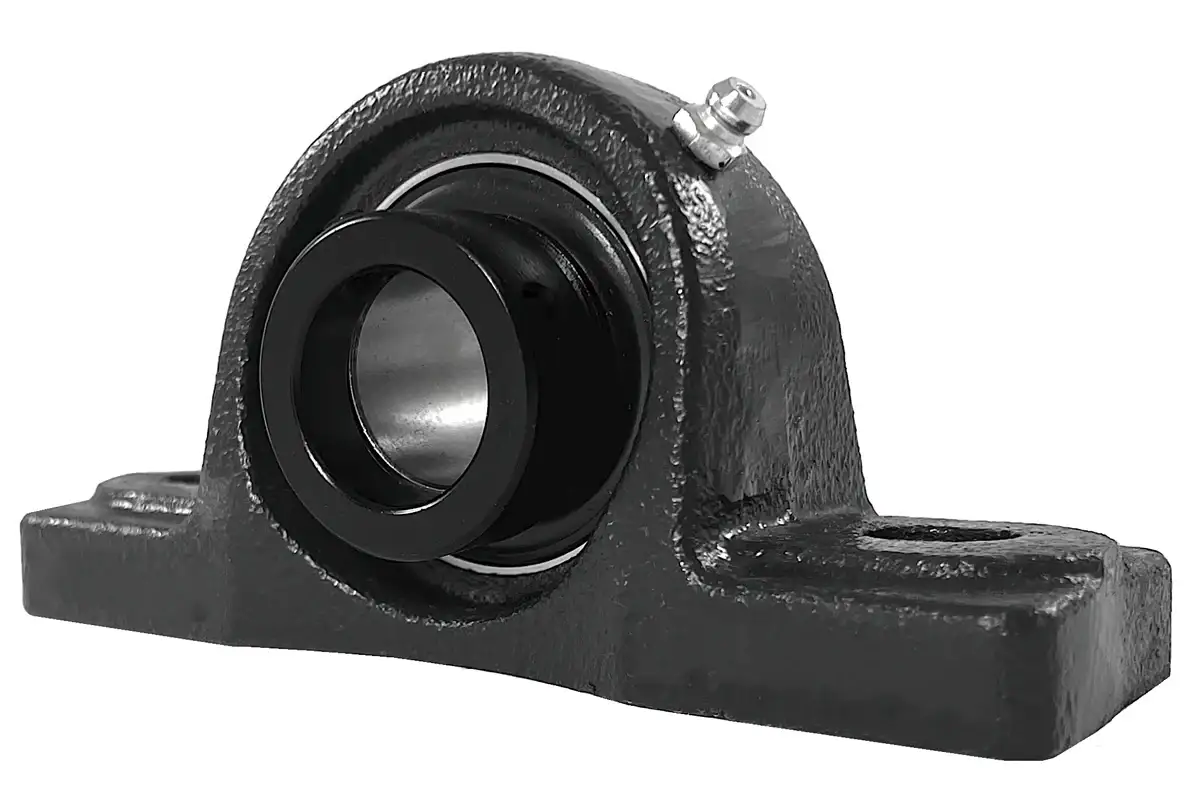

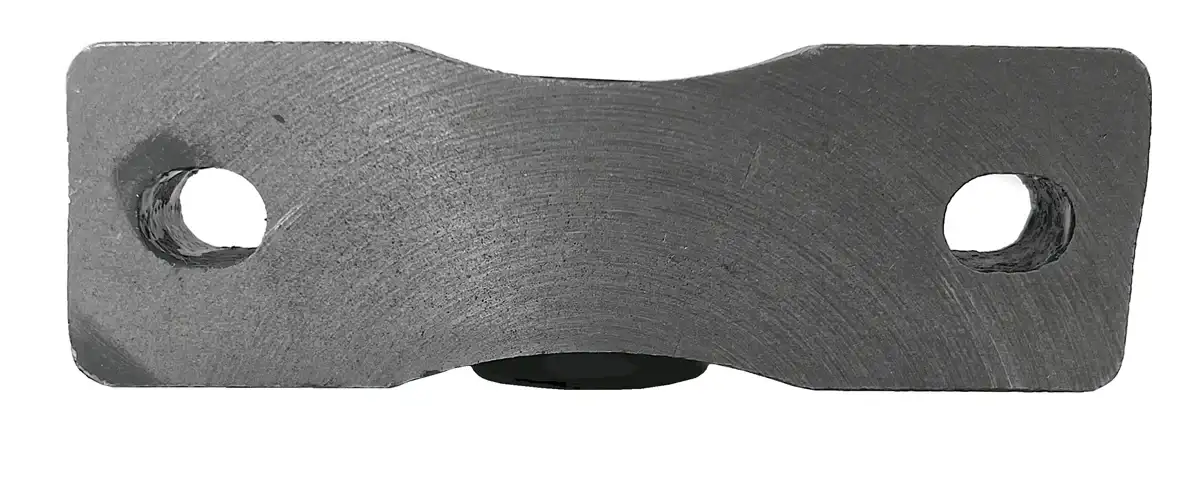

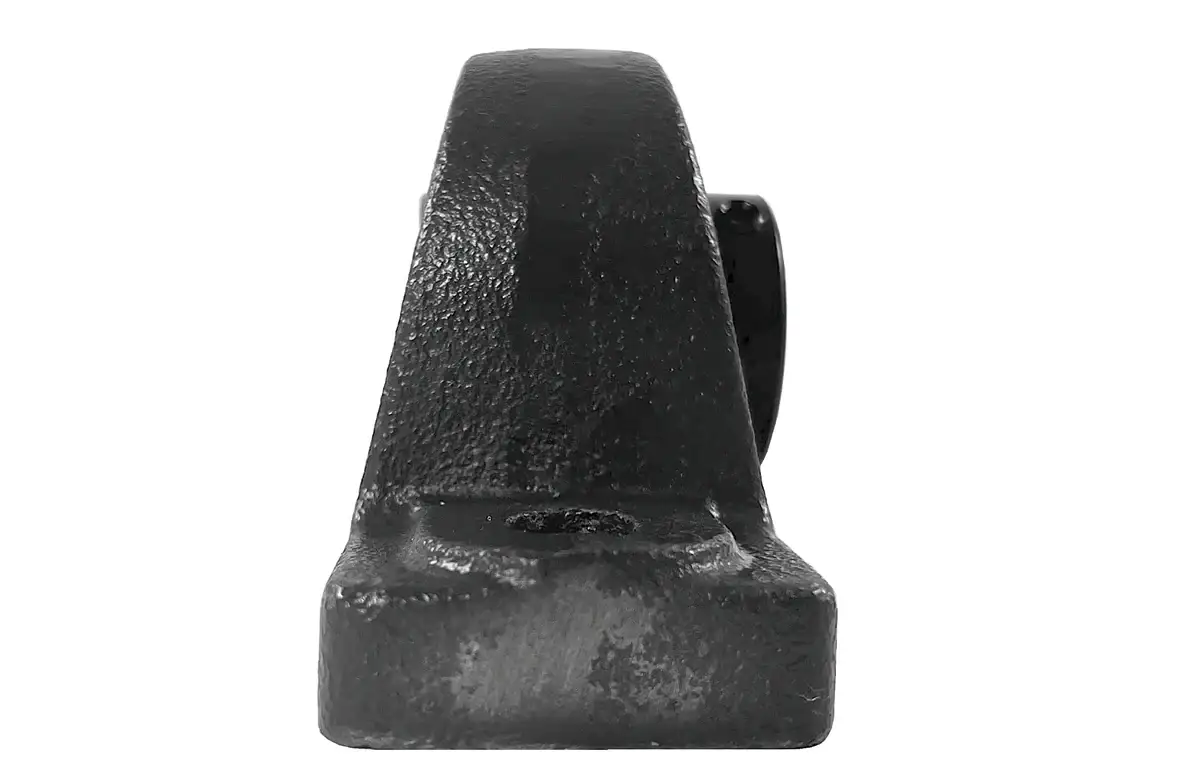

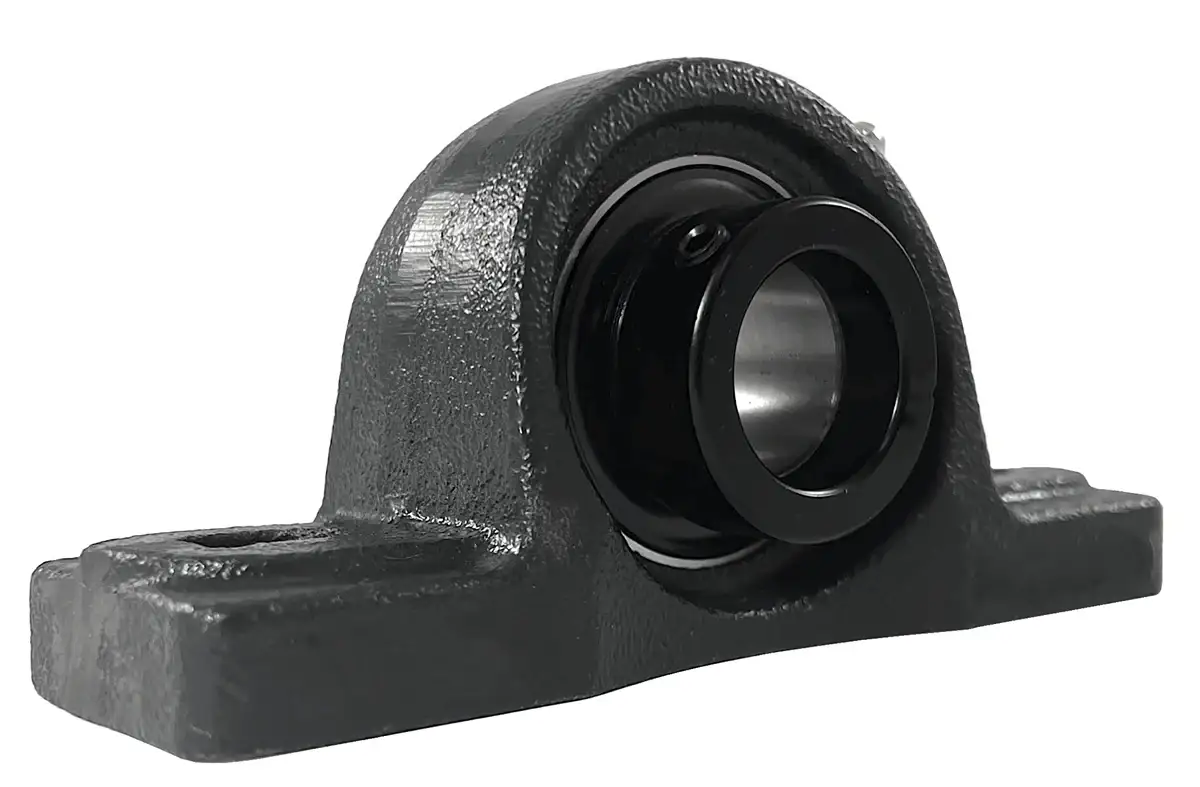

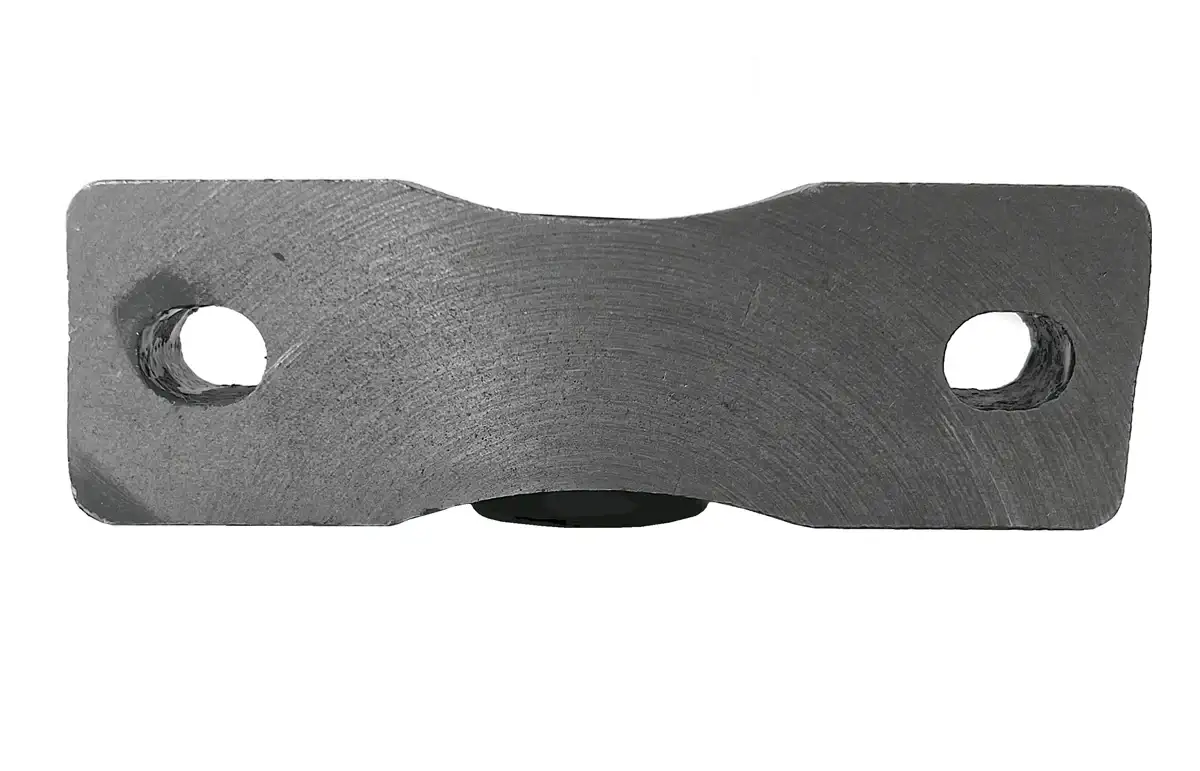

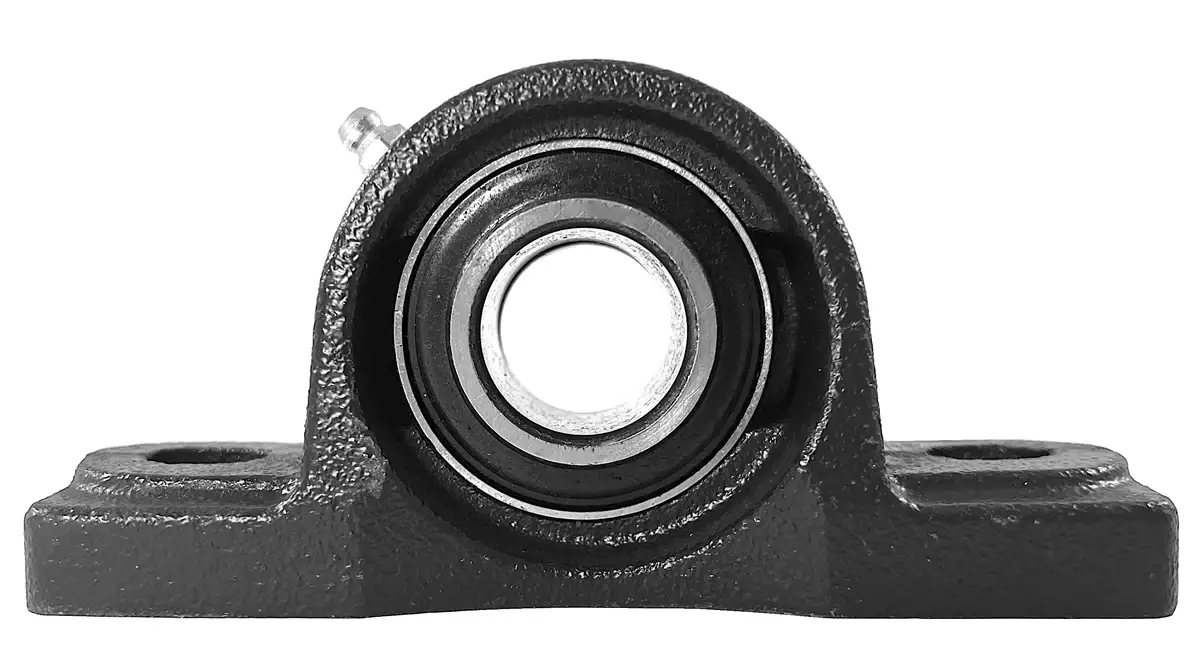

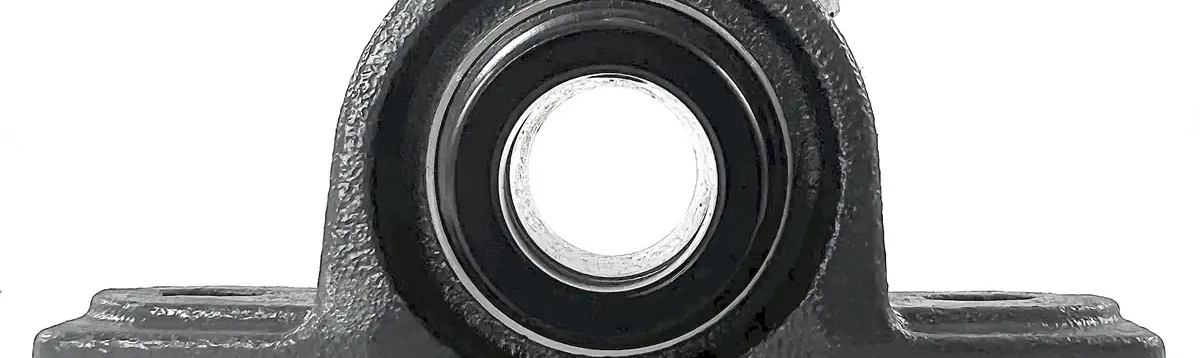

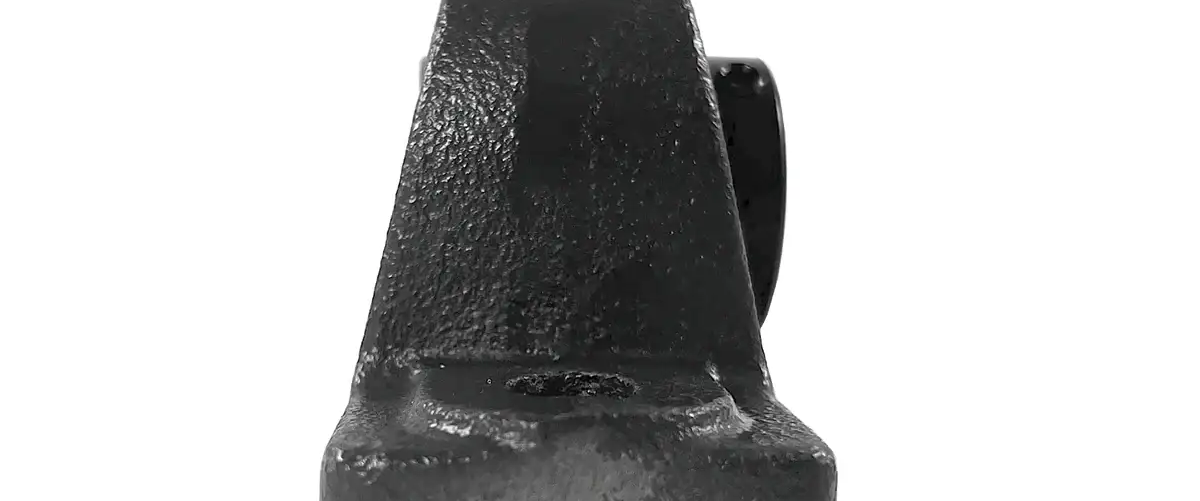

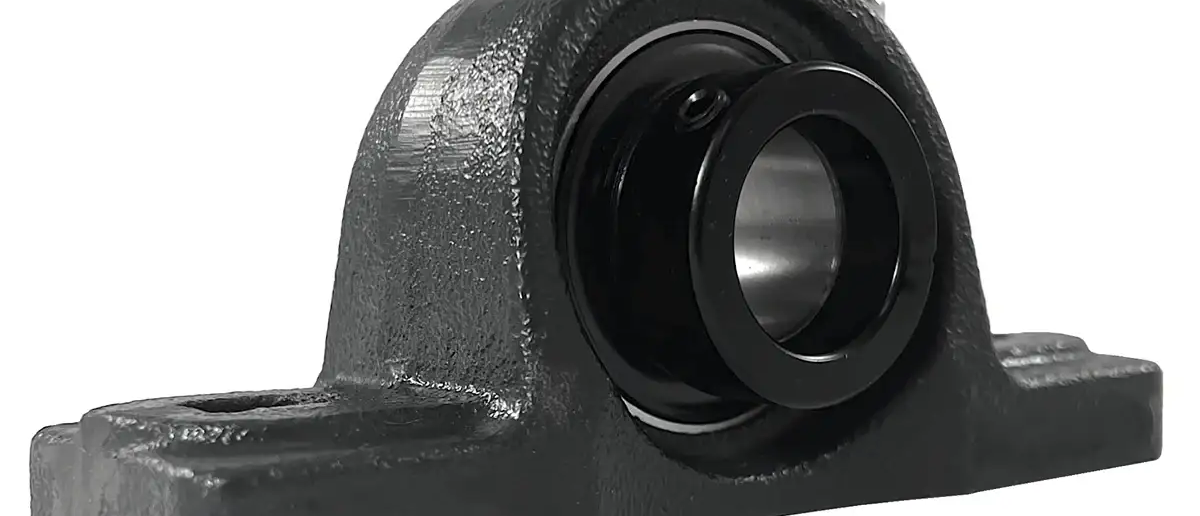

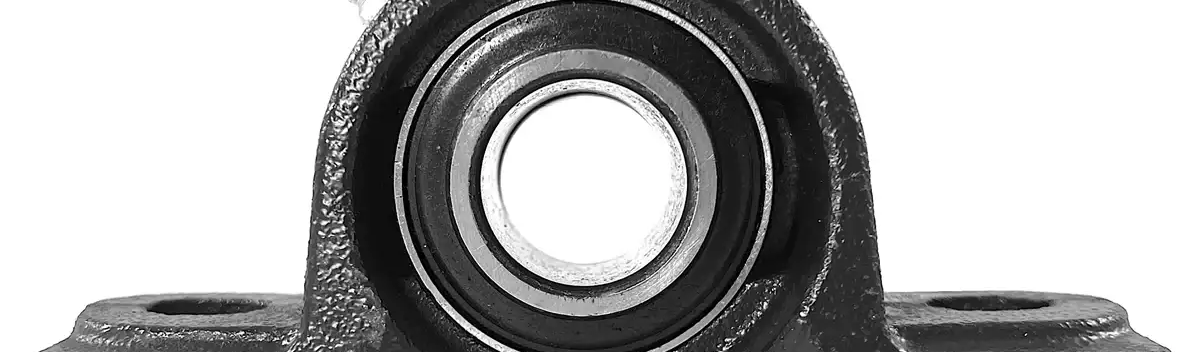

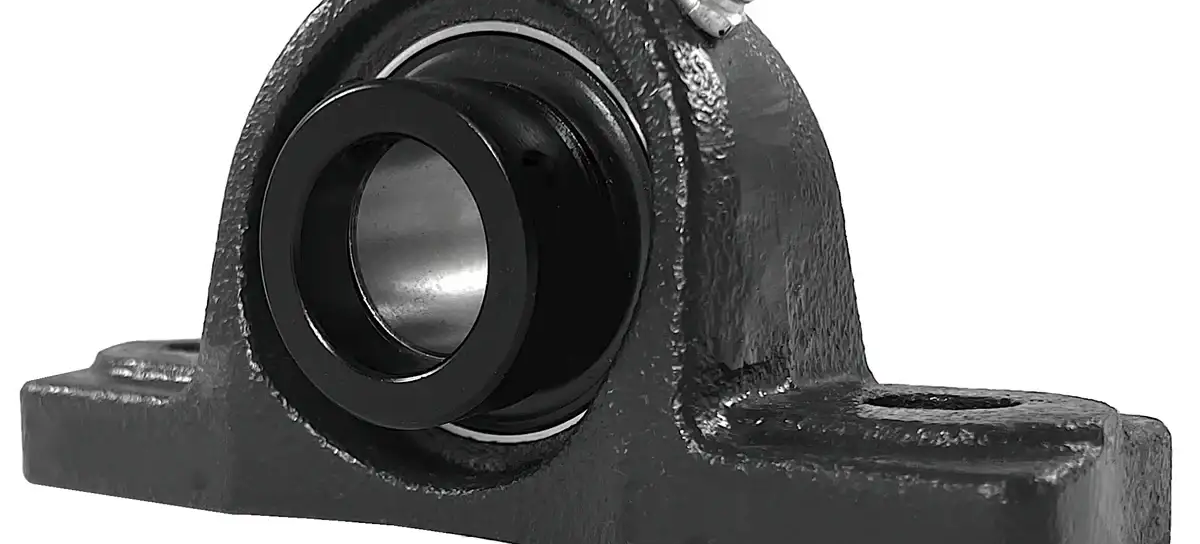

HCAK201 Bearing | 12mm 2-Bolt Eccentric Locking Bearing

HCAK201 bearing is a two-bolt normal duty pillow block bearing with a 12mm bore. It utilizes an eccentric locking collar for securing the beating to a 12mm shaft and features a premium C3 precision insert bearing housed within a high-strength solid-base cast-iron housing. Our HCAK201 bearings are engineered and manufactured to provide long-lasting performance and durability with added features such as a steel retainer, wide inner-ring, anti-rotation device, and relubricating capabilities. HCAK201 pillow block bearings are utilized in various applications such as; construction equipment, agricultural equipment, forestry, aggregate, conveyor systems, and many more. Additionally, this HCAK201 bearing is directly interchangeable with other brands. Contact our customer support team for further information or to get a quote on our HCAK201 bearings, and we will be happy to assist you!

HCAK201 Bearing Dimensions

• Part #: HCAK 201
• Shaft Diameter (d): 12mm
• Dimension (H): 27.0mm
• Dimension (A): 121.0mm
• Dimension (E): 89.0mm
• Dimension (B): 35.0mm
• Dimension (S2): 16.0mm
• Dimension (S1): 12.0mm
• Dimension (G): 13.0mm
• Dimension (W): 54.0mm
• Dimension (Bi): 37.3mm
• Dimension (N): 13.9mm
• Dimension (M): 13.9mm
• Bolt Used: M10
• Dynamic Load Rating (kN): 9.55
• Static Load Rating (kN): 4.78
• Bearing Insert: HCW 201
• Housing Number: WAK 203
• Weight (kg): 0.6
