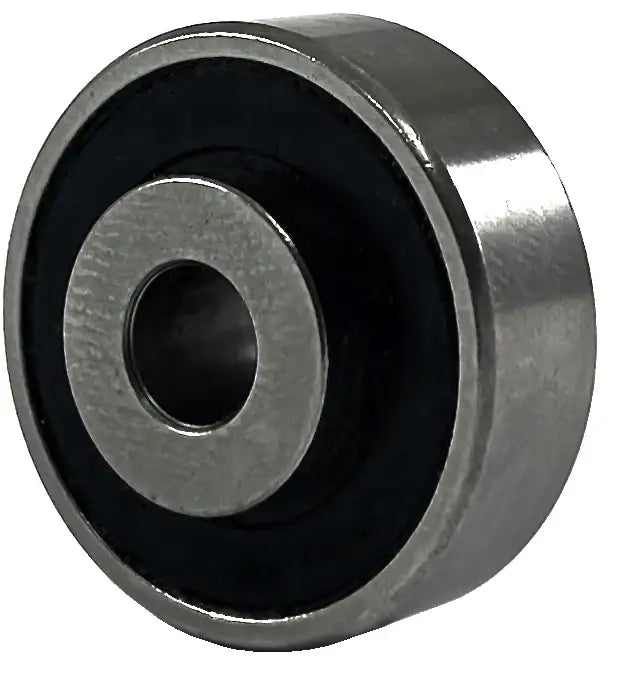

88013 Ball Bearing | 88013 Bearing - 0.5118"x1.2598"x0.6063"

This 88013 ball bearing is a high-precision premium quality deep groove 0.5118"x1.2598"x0.6063" ball bearing made to ABEC 3 precision standards from AXIS. This bearing features a seal on both sides along with an extended inner race. What sets this 88006 bearing apart from others is the ABEC 3 precision standard that this bearing is made to, the grade 10-balls used, and the superb electric motor quality rating (EMQ). ABEC 3 means that the bearing has a micron deviation from a nominal of 20.000mm of -8 micrometres. The standard ABEC 1 precision standard that almost all ball bearings are made to today has a deviation of -10 micrometres. In simple terms, the more precision a bearing is, the better it will perform in any given application. The grade 10 balls within this bearing are typically only found within ABEC 5 or higher bearings because of their more true roundness and precision. The balls within a bearing share the load capacity, which also increases the working life versus the standard grade 25 balls used in other brands. The electric motor quality rating means that the bearing must operate at an extremely low noise level with minimal to no vibration. To achieve this, the 88013 bearing features raceways that are precision honed to a superb finish.

More specifically, 88013 ball bearings are also commonly known as felt series bearings because manufactures use to use felt seals in this bearing type, however, the new standard is to use rubber for the seal material. 88013 bearings are found in a wide range of industrial, automation, and electric motor applications. They are designed to reduce rotational friction and support loads. The load is spread evenly across the grade 10 balls and as the inner bearing race rotates so do the balls. For additional information or to get a quote on a 88013 bearing contact our customer support team and we will be happy to assist you!

88013 Ball Bearing Dimensions

• Bearing Size: 88013
• Dimension (d): 13mm
• Dimension (d): 0.5118"
• Dimension (D): 32mm
• Dimension (D): 1.2598"
• Dimension (B1): 0.3937"
• Dimension (B2): 0.6063"
• Dynamic Load Rating: 1375 LBS
• Static Load Rating: 626 LBS
• Limiting Speed (Grease): 9600 RPM
• Weight: 0.2 LBS
